Chapter 1 Overview of the TimeSource 3600
Physical Description
Roof Antenna

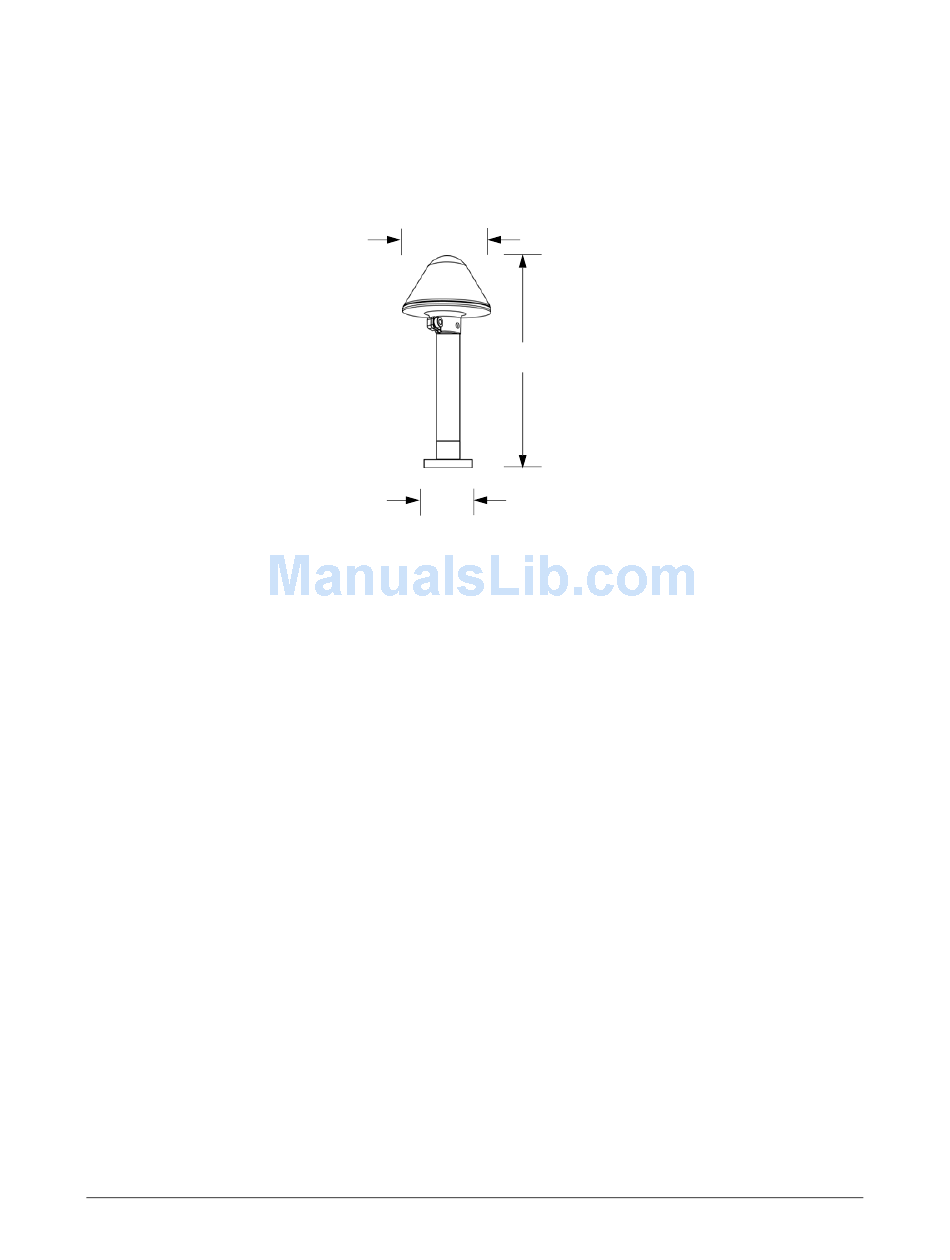

The roof antenna
(Figure
1-2) is encased in weather-resistant plastic housing for
outdoor installation, usually on a roof. A single coaxial cable carries signals and
power between the antenna and the shelf.
15 cm
47.92 cm
4.67 cm
Figure 1-2.
Roof Antenna
Mechanical Window Antenna
The mechanical window antenna
(Figure
1-3) may be attached to a window sill or
wall, in any position that allows the antenna to be moved flush against the window.
The antenna can be swung away from the window for window maintenance, and
returned to its original position.
A single length of coaxial cable carries signals and power between the antenna
assembly and the shelf.
097-72060-01 Revision J – June, 2007
TimeSource 3600 User's Guide
25
