Symmetricom TimeSource 3600 User Manual page 71

Procedure 3-4. Installing a Wall Antenna (Continued)
Step
23. If the optional Wall Antenna Outdoor Lighting Suppressor Kit (093-72050-93) is not
required, the Wall Antenna Installation is complete. Otherwise, proceed with the next step.
24. Mount the outdoor lightning suppressor mounting bracket to the outside wall shown in
Figure 3-11.
25. Mount and secure the lightning suppressor in the lightning suppressor mounting bracket as
shown in Step 26

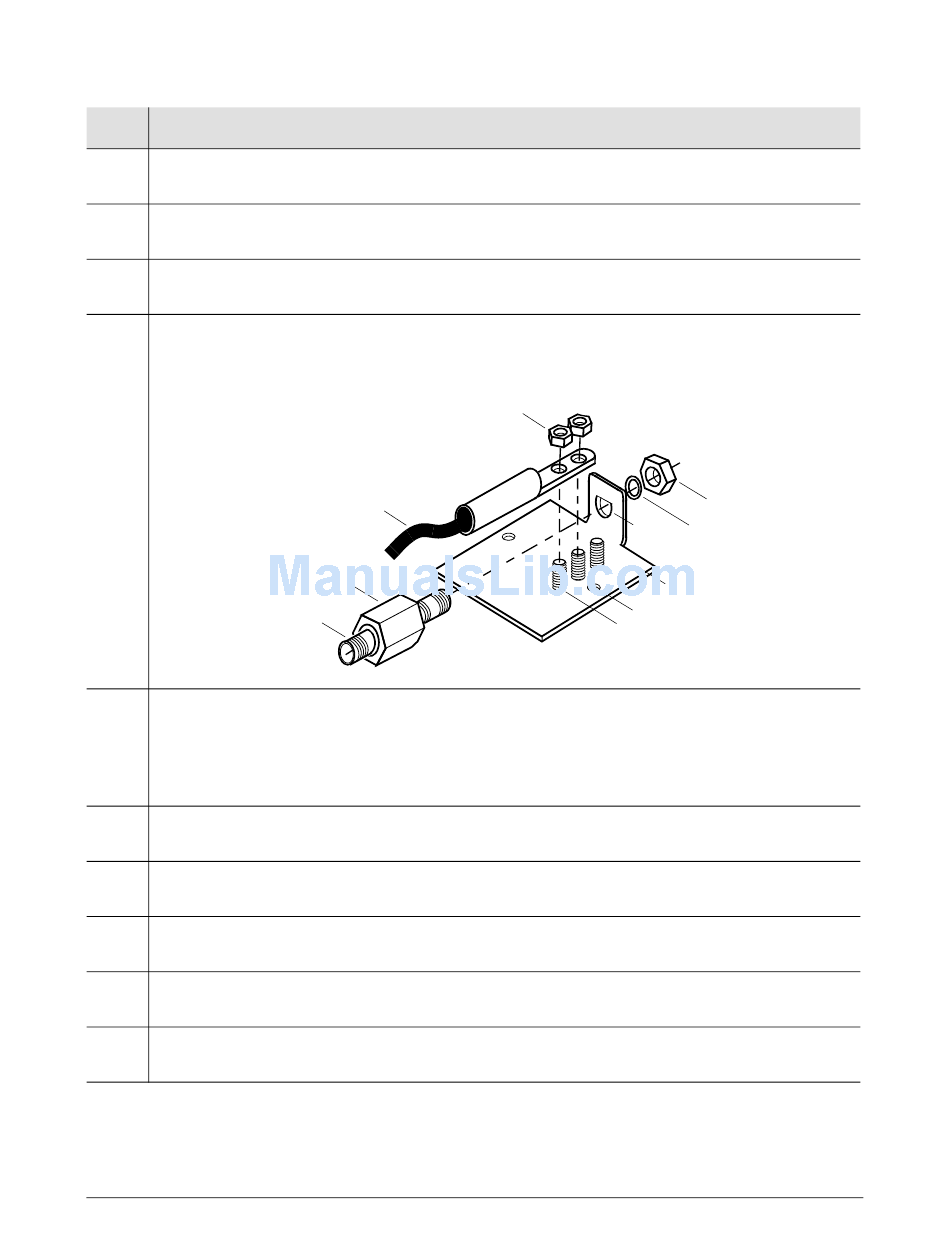

26. Slide the longer bolt of the lightning suppressor through the D-hole, and attach with a nut
and a washer (provided).
Lightning Suppressor
Cable connector (2)
27. If the lightning suppressor was not mounted directly to a valid earth ground, crimp a length
of 4.115 mm (6 AWG) ground cable to the two-hole terminal, slide the terminal over two of
the three threaded posts on the lightning suppressor mounting plate, and attach the
terminal to the mounting plate with two KEPS nuts. Use the two posts that allow the least
bending of the 4.115 mm (6 AWG) ground cable.
28. Attach the other end of the cable to a valid earth ground. Attaching to an earth ground
located outside the building is the most desirable.
29. Route the wall antenna cable to the antenna side of the outdoor lightning suppressor and
connect the cable.
30. Route the 3 m RG-316 cable provided from the outdoor lightning suppressor through the
wall to the IF converter and connect both ends.
31. Connect the user provided RG-59 cable from the IF converter to the TimeSource 3600
shelf.
32. Install fire-stopping material in all holes opened in the roof and/or walls during this
procedure.
097-72060-01 Revision J – June, 2007
Procedure
KEPS nut (2)
4.115 mm (6 AWG)
ground wire
End of Procedure
Chapter 3 Installing the TimeSource 3600
Installing the Antenna
Nut
Washer
D-hole
Mounting plate
Hole for mounting bolt (2)
Threaded posts (3)
(use any 2)
TimeSource 3600 User's Guide 71
