Chapter 3 Installing the TimeSource 3600
Installing the Antenna

Installing a Wall Antenna

Prior to installing the antenna, the site, antenna location, cable route, and all other
details should have been planned.
Installation procedures are to follow local company procedures and the Installation
Job Specification.
For best results, choose a wall facing the equator (facing south in the northern
hemisphere, facing north in the southern hemisphere), and with the fewest
obstructions of the sky.
To mount the antenna through the wall, refer to
Procedure 3-4.
Antenna Mounting Bracket
070-00383-02
112-00013-01
SMA connector
(Attached to cable,
and on IF converter)
IF converter
090-72050-71
and Mounting Kit
TNC connector
(Attached to cable,
and on IF converter)
TNC Connector
(Attached to cable, and on shelf)

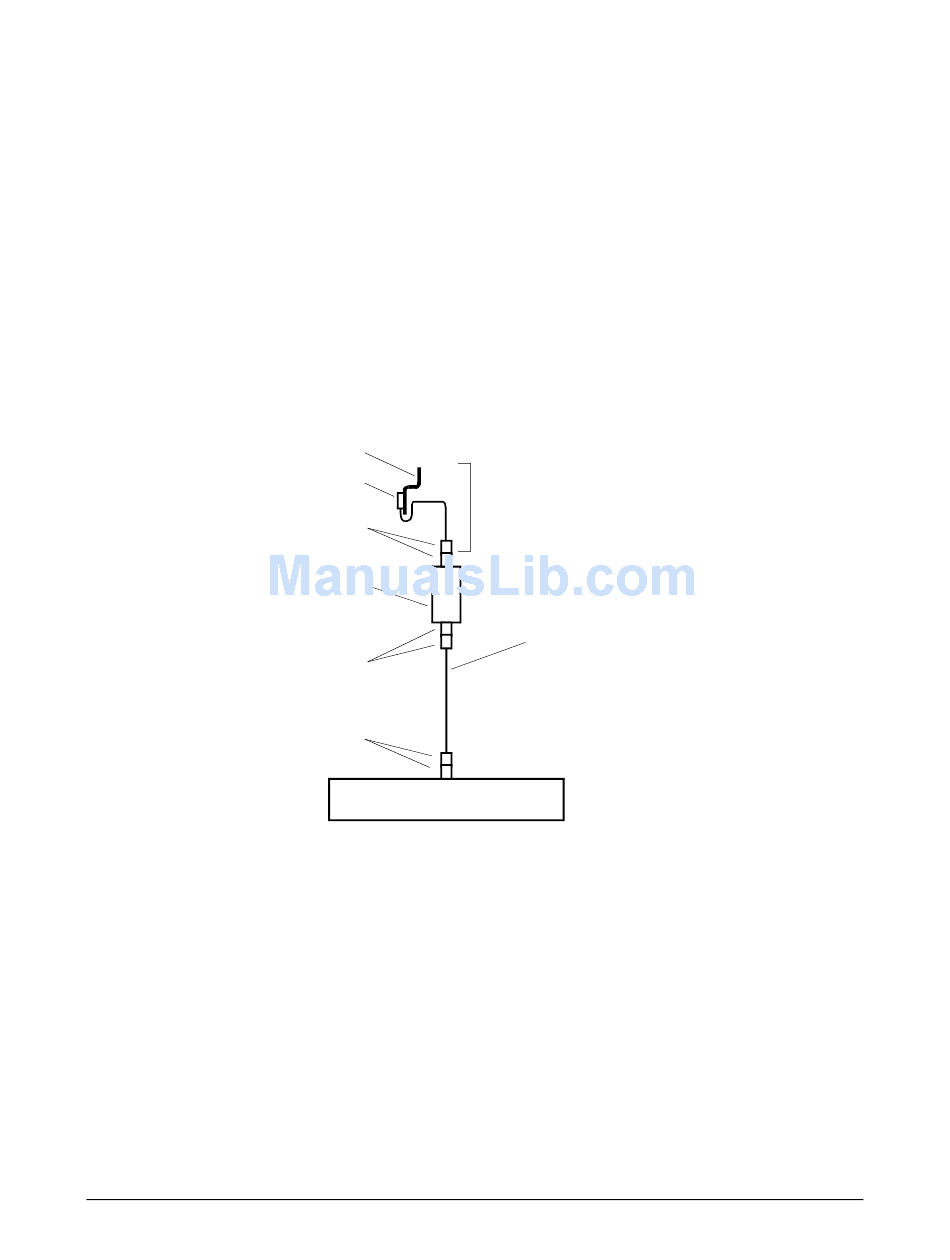

Figure 3-8. Wall Antenna-to-Shelf Cabling
68 TimeSource 3600 User's Guide
Antenna
TimeSource 3600 Shelf
Figure 3-8 and follow
Antenna kit
990-72050-95 (w/ 1.8 m antenna cable) or
990-72050-99 (w/ 5.8 m antenna cable)
IF-to-shelf cable
RG-59/U Cable
060-72010-xx
(3 m to 305 m) or
Mini RG-59 Cable
060-72050-xx
(15 m to 152 m)
097-72060-01 Revision J – June, 2007
