installing a Mechanical Window Antenna

Installation procedures are to follow local company procedures and the Installation
Job Specification.
Prior to installing the antenna, the site, antenna location, cable route, and all other
details should have been planned.
For best results, choose a window facing the equator (facing south in the northern
hemisphere, facing north in the southern hemisphere), and with the fewest
obstructions of the sky.
To install the antenna, refer to
Components of
990-72050-97
Antenna-to-IF cable
antenna
assembly
(Attached to cable)
(Attached to cable, and on shelf)

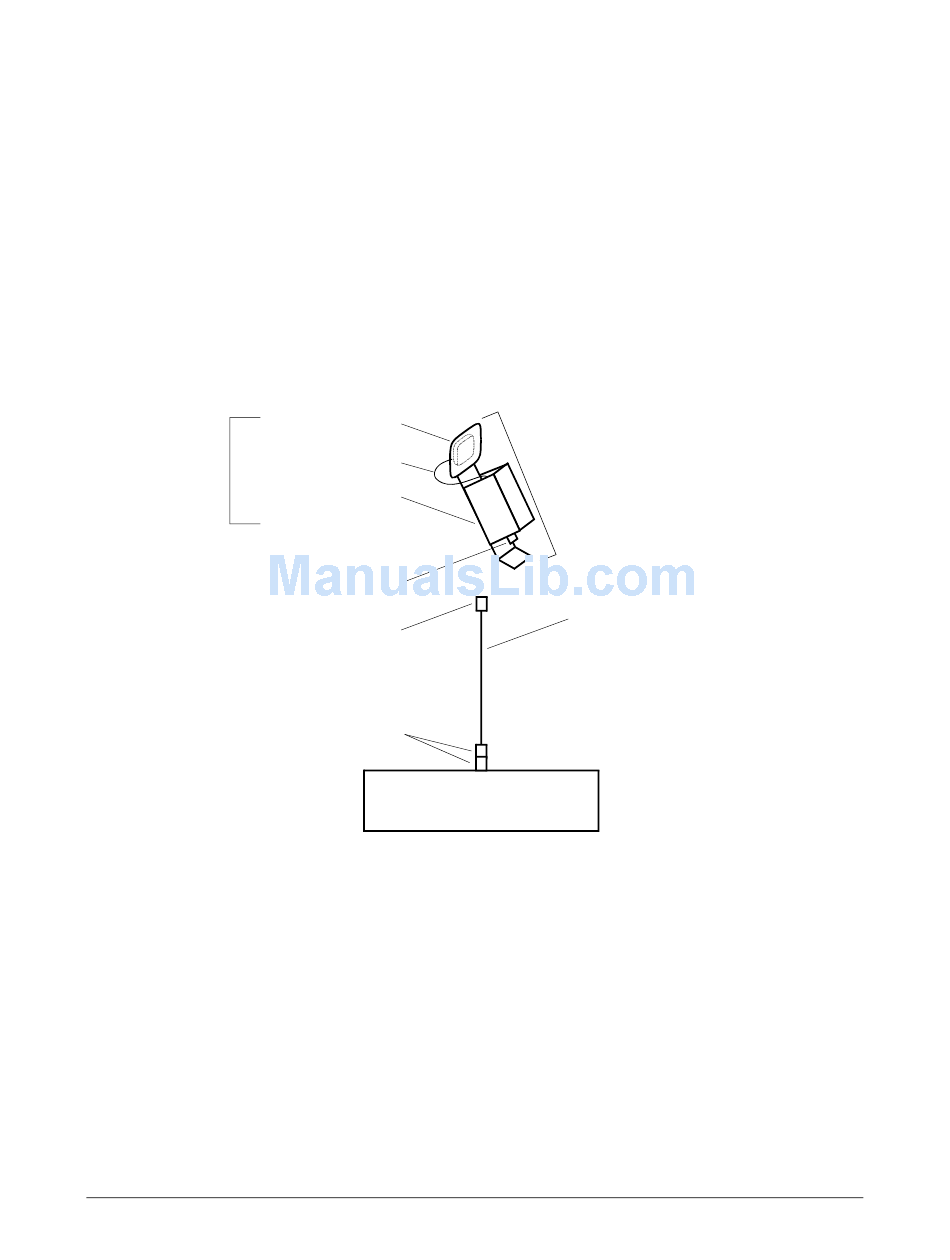

Figure 3-2. Mechanical Window Antenna-to-Shelf Cabling
097-72060-01 Revision J – June, 2007
Figure 3-2
Antenna
IF Converter
TNC Connector
(on IF converter)
TNC Connector
TNC Connector
TimeSource 3600 Shelf
Chapter 3 Installing the TimeSource 3600
and perform Procedure
Antenna Assembly
990-72050-97
IF-to-shelf cable
RG-59/U Cable
060-72010-xx
(3 m to 305 m) or
Mini RG-59 Cable
060-72050-xx
(15 m to 152 m)
