Procedure 3-7. TimeWizard Installation and Operation (Continued)
Step
10. In the Load GPS File dialog box, navigate to the GPS.hex firmware file to be downloaded,
then click Open.
The message "Verifying version for C:\
secs)" appears in the Command area of the screen. Once TimeWizard has verified that
the version of the firmware is correct, the text on the ver Unknown button changes to show
the version of the firmware to be downloaded.
After TimeWizard verifies the firmware version, select the Download GPS.hex check-box,
then click Next>> to start downloading the firmware.

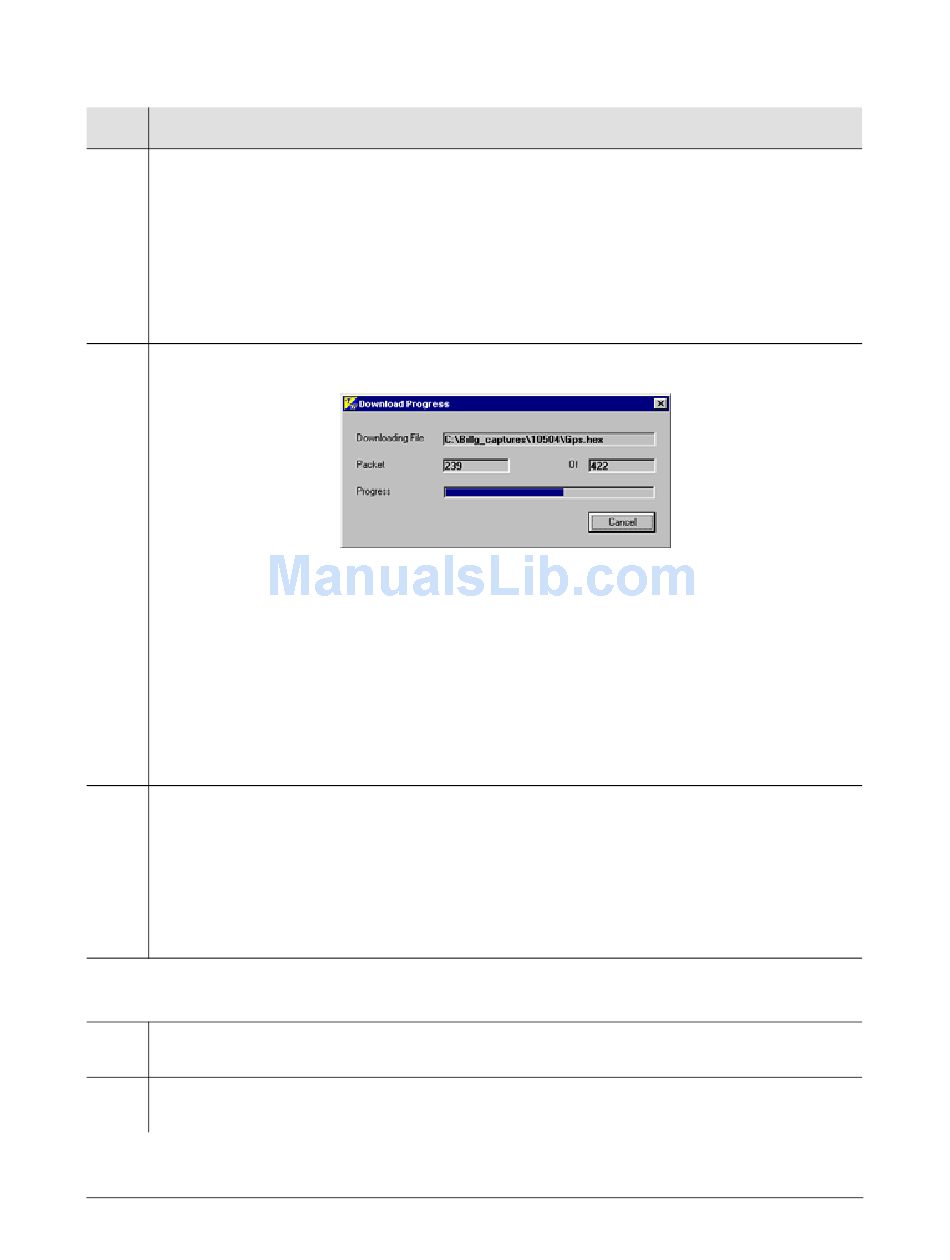

11. When the firmware download operation starts, the Download Progress dialog box appears:
As the download operation proceeds, the value in the Packet field increases, and the
Progress bar shows the progress of the operation. When the firmware download is
complete, the Download Progress dialog box closes.
After
the Download Progress dialog box closes, continue with the next step.
Notes:
1. The firmware download operation can be aborted at any time by clicking the Cancel
button in the Download Progress dialog box.
2. If the download fails for any reason, a screen appears with instructions to contact
Symmetricom. If this happens, exit the application, check the cable connections, and
restart TimeWizard.
12. After the Download Progress dialog box closes, continue to monitor the messages reported
in the Commands area of the screen.
After the firmware file finishes downloading from the PC to the TimeSource, the
TimeSource requires more time to complete the firmware upgrade process. During this
time, it should not be interrupted. When the firmware upgrade is fully complete, TimeWizard
automatically advances to the next screen.
After the screen automatically advances, continue with the next step.
Note: If you are not downloading TS3000.hex firmware, click Next>> again, then skip to
13. The "Download TS3000.hex" screen appears very similar to the "Download GPS.hex"
screen shown in
14. Click ver Unknown to open the Load TS3000 File dialog box, which appears very similar to
the dialog box shown in
