Fault Conditions
No Ethernet link when eth0 is enabled
No cellular link (no BSSID detected) when wlan0 is
enabled
No IP obtained from cellular when wlan0 is enabled
and the bridge mode is disabled.
Over temperature or when the internal temperature
reaches 85°F.
Loss of power or when both the terminal and barrel
power input is below 9 volts.
Notes:
For Table 3-8

no light. A "short" blink is a light that is on for only 0.2 seconds and followed by 0.2
seconds of no light.
The diagnostic blink patterns reflect the highest priority fault condition. Also, the

Diagnostic LED will give an initial, identifying blink pattern to indicate the type of
diagnostic information it will display. All power and other non-network related
diagnostic patterns begin with one long blink. All wired LAN related diagnostics
patterns begin with two long blinks. All cellular-related diagnostics patterns begin with
three long blinks.
Reset Button
You can reset the PremierWave to factory defaults, including clearing the network settings. The IP
address, gateway, and netmask are set to 00s. To reset the unit to factory defaults, perform the
following steps.
1. Place the end of a paper clip or similar object into the reset opening (see
and hold down micro switch during a power cycle for 10-15 seconds.
2. Remove the paper clip to release the button. The unit will continue the boot process restoring
it back to the original factory default settings.
PremierWave XC HSPA+ User Guide
PRELIMINARY DRAFT

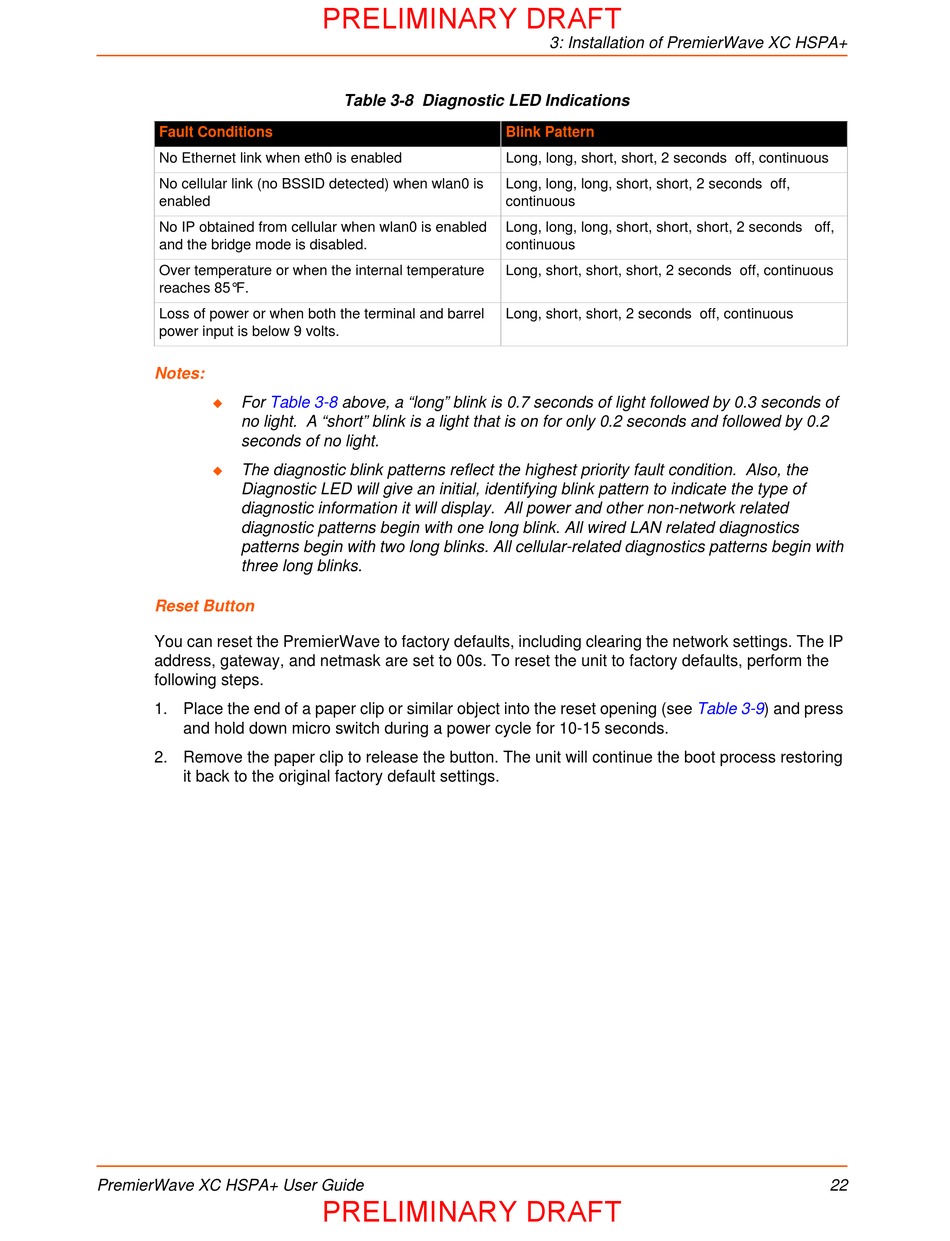

Table 3-8 Diagnostic LED Indications

above, a "long" blink is 0.7 seconds of light followed by 0.3 seconds of
PRELIMINARY DRAFT
3: Installation of PremierWave XC HSPA+
Blink Pattern
Long, long, short, short, 2 seconds off, continuous
Long, long, long, short, short, 2 seconds off,
continuous
Long, long, long, short, short, short, 2 seconds off,
continuous
Long, short, short, short, 2 seconds off, continuous
Long, short, short, 2 seconds off, continuous
