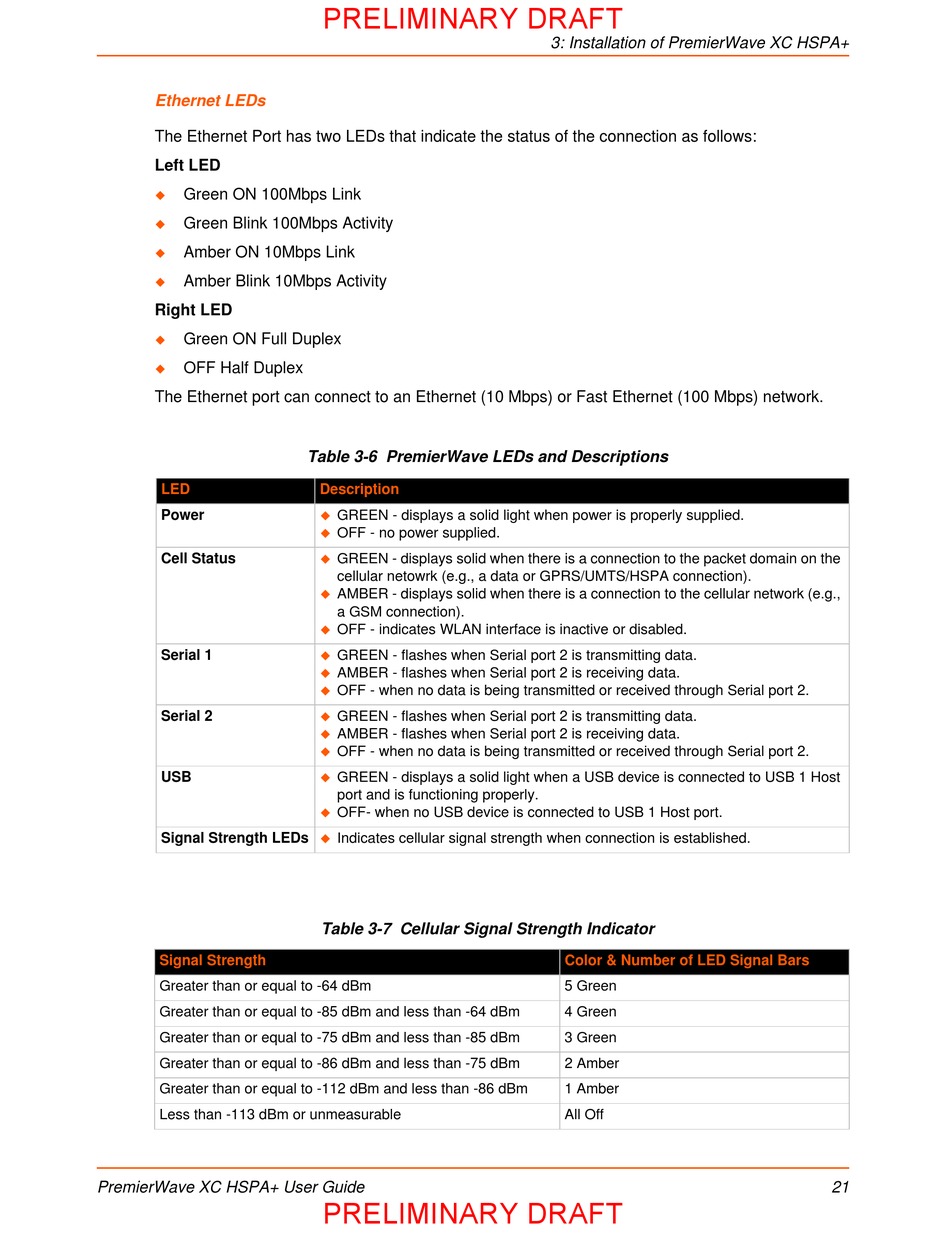

Table 3-6 Premierwave Leds And Descriptions; Table 3-7 Cellular Signal Strength Indicator - Lantronix PremierWave XC HSPA+ User Manual

Ethernet LEDs
The Ethernet Port has two LEDs that indicate the status of the connection as follows:
Left LED
Green ON 100Mbps Link

Green Blink 100Mbps Activity

Amber ON 10Mbps Link

Amber Blink 10Mbps Activity

Right LED
Green ON Full Duplex

OFF Half Duplex

The Ethernet port can connect to an Ethernet (10 Mbps) or Fast Ethernet (100 Mbps) network.
LED
Power
Cell Status
Serial 1
Serial 2
USB
Signal Strength LEDs
Signal Strength
Greater than or equal to -64 dBm
Greater than or equal to -85 dBm and less than -64 dBm
Greater than or equal to -75 dBm and less than -85 dBm
Greater than or equal to -86 dBm and less than -75 dBm
Greater than or equal to -112 dBm and less than -86 dBm
Less than -113 dBm or unmeasurable
PremierWave XC HSPA+ User Guide
PRELIMINARY DRAFT

Table 3-6 PremierWave LEDs and Descriptions

Description
GREEN - displays a solid light when power is properly supplied.

 OFF - no power supplied.
 GREEN - displays solid when there is a connection to the packet domain on the
cellular netowrk (e.g., a data or GPRS/UMTS/HSPA connection).
 AMBER - displays solid when there is a connection to the cellular network (e.g.,
a GSM connection).
 OFF - indicates WLAN interface is inactive or disabled.
 GREEN - flashes when Serial port 2 is transmitting data.
 AMBER - flashes when Serial port 2 is receiving data.
 OFF - when no data is being transmitted or received through Serial port 2.
GREEN - flashes when Serial port 2 is transmitting data.

AMBER - flashes when Serial port 2 is receiving data.

 OFF - when no data is being transmitted or received through Serial port 2.
 GREEN - displays a solid light when a USB device is connected to USB 1 Host
port and is functioning properly.
OFF- when no USB device is connected to USB 1 Host port.

Indicates cellular signal strength when connection is established.


Table 3-7 Cellular Signal Strength Indicator

PRELIMINARY DRAFT
3: Installation of PremierWave XC HSPA+
Color & Number of LED Signal Bars
5 Green
4 Green
3 Green
2 Amber
1 Amber
All Off
21
