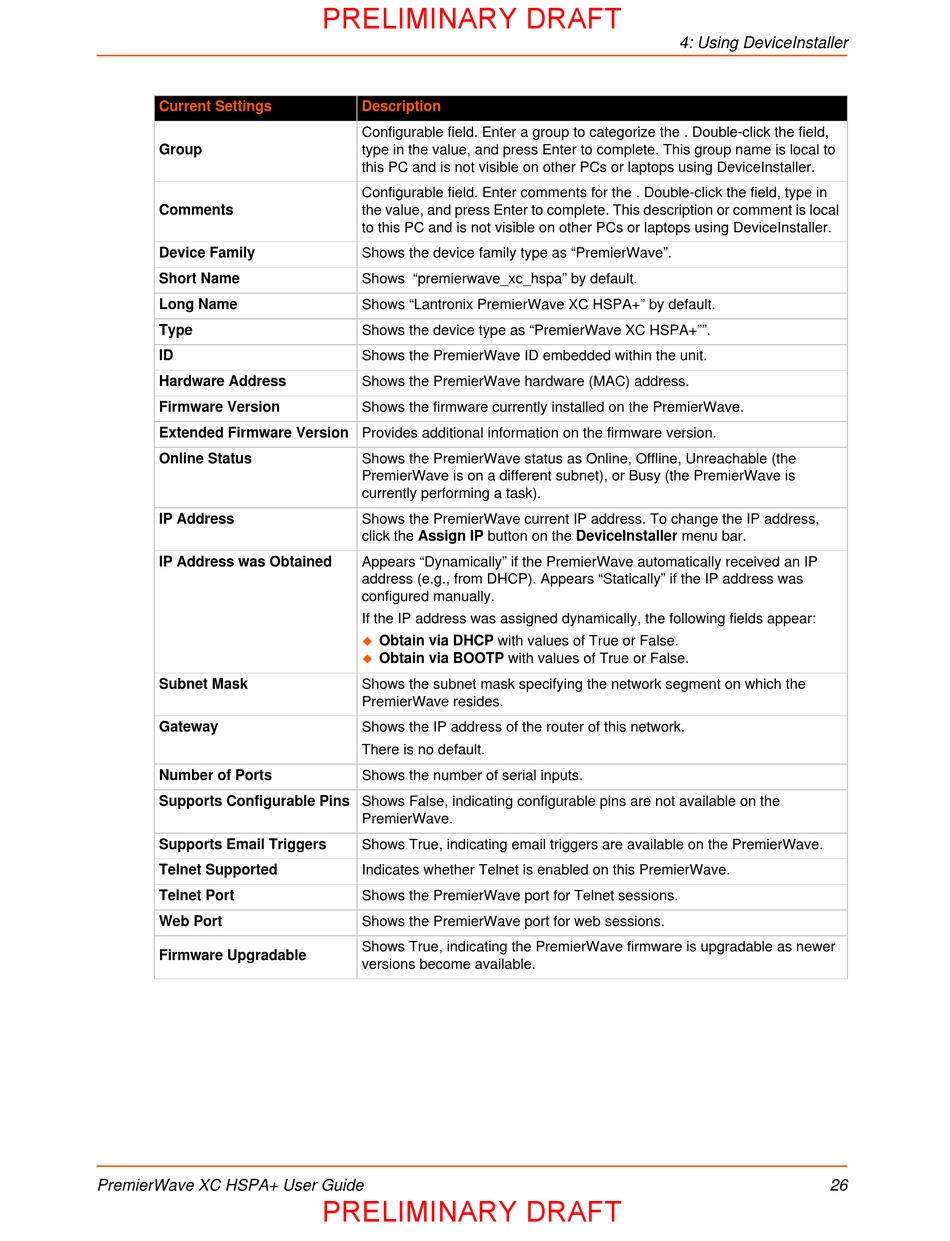

Lantronix PremierWave XC HSPA+ User Manual page 26

Current Settings
Group
Comments
Device Family
Short Name
Long Name
Type
ID
Hardware Address
Firmware Version
Extended Firmware Version Provides additional information on the firmware version.
Online Status
IP Address
IP Address was Obtained
Subnet Mask
Gateway
Number of Ports
Supports Configurable Pins Shows False, indicating configurable pins are not available on the
Supports Email Triggers
Telnet Supported
Telnet Port
Web Port
Firmware Upgradable
PremierWave XC HSPA+ User Guide
PRELIMINARY DRAFT
Description
Configurable field. Enter a group to categorize the . Double-click the field,
type in the value, and press Enter to complete. This group name is local to
this PC and is not visible on other PCs or laptops using DeviceInstaller.
Configurable field. Enter comments for the . Double-click the field, type in
the value, and press Enter to complete. This description or comment is local
to this PC and is not visible on other PCs or laptops using DeviceInstaller.
Shows the device family type as "PremierWave".
Shows "premierwave_xc_hspa" by default.
Shows "Lantronix PremierWave XC HSPA+" by default.
Shows the device type as "PremierWave XC HSPA+"".
Shows the PremierWave ID embedded within the unit.
Shows the PremierWave hardware (MAC) address.
Shows the firmware currently installed on the PremierWave.
Shows the PremierWave status as Online, Offline, Unreachable (the
PremierWave is on a different subnet), or Busy (the PremierWave is
currently performing a task).
Shows the PremierWave current IP address. To change the IP address,
click the Assign IP button on the DeviceInstaller menu bar.
Appears "Dynamically" if the PremierWave automatically received an IP
address (e.g., from DHCP). Appears "Statically" if the IP address was
configured manually.
If the IP address was assigned dynamically, the following fields appear:
 Obtain via DHCP with values of True or False.
 Obtain via BOOTP with values of True or False.
Shows the subnet mask specifying the network segment on which the
PremierWave resides.
Shows the IP address of the router of this network.
There is no default.
Shows the number of serial inputs.
PremierWave.
Shows True, indicating email triggers are available on the PremierWave.
Indicates whether Telnet is enabled on this PremierWave.
Shows the PremierWave port for Telnet sessions.
Shows the PremierWave port for web sessions.
Shows True, indicating the PremierWave firmware is upgradable as newer
versions become available.
PRELIMINARY DRAFT
4: Using DeviceInstaller
26
