Perform the following steps to install your device:

1. With the power unplugged, insert your SIM card.

2. Connect an RJ-45 Ethernet cable between the unit and your Ethernet network.

3. Connect the antennas to the SMA connectors on the back. Do note that the safe distance due

to RF exposure from antenna is 20 cm.

Note:

Antennas must be installed prior to powering on the unit. Do not remove or

connect the antennas while the unit power is on.

4. Plug the PremierWave into the power outlet by using the included power supply.

PremierWave XC HSPA+ User Guide

PRELIMINARY DRAFT

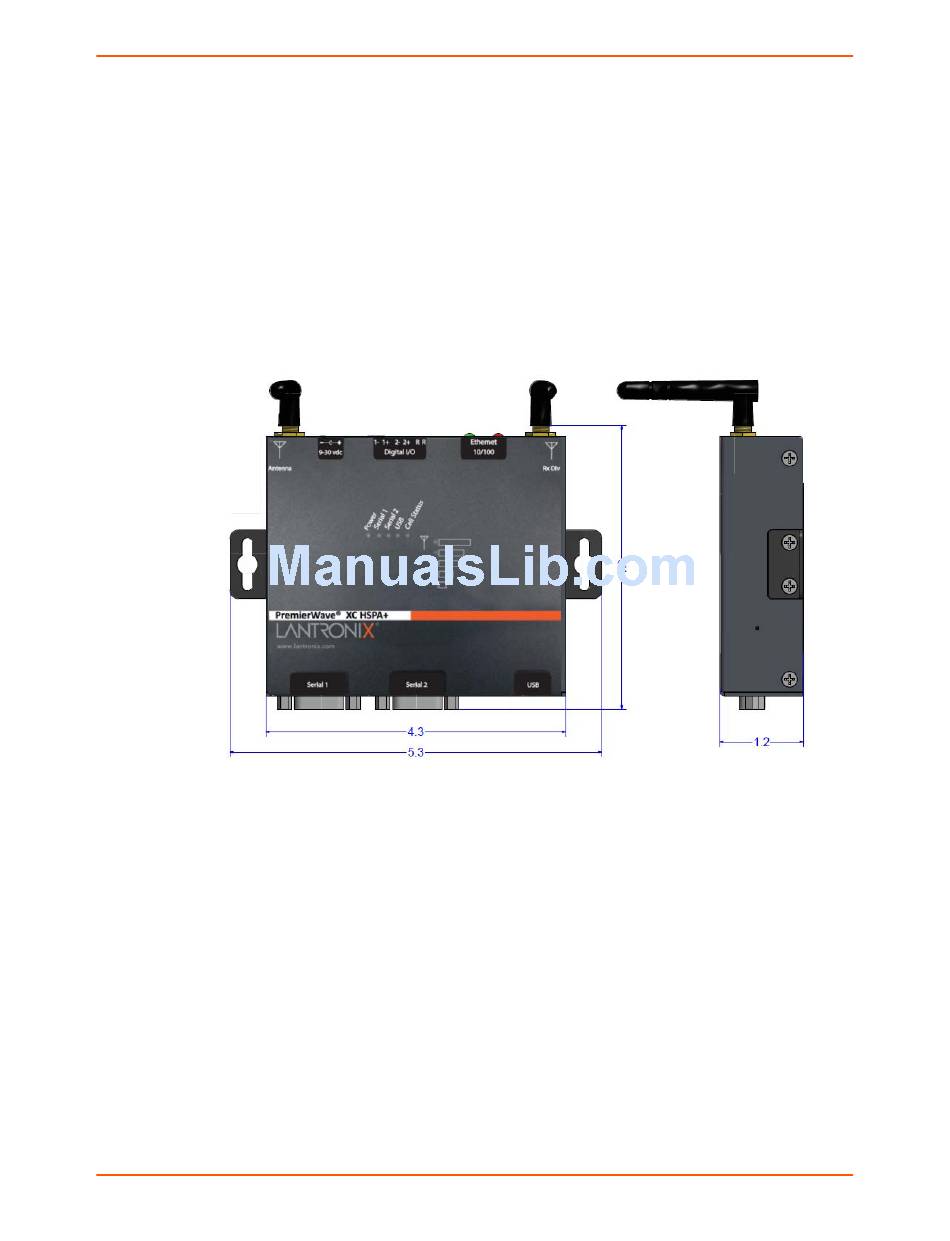

Figure 3-11 PremierWave Dimensions in Inches (in)
