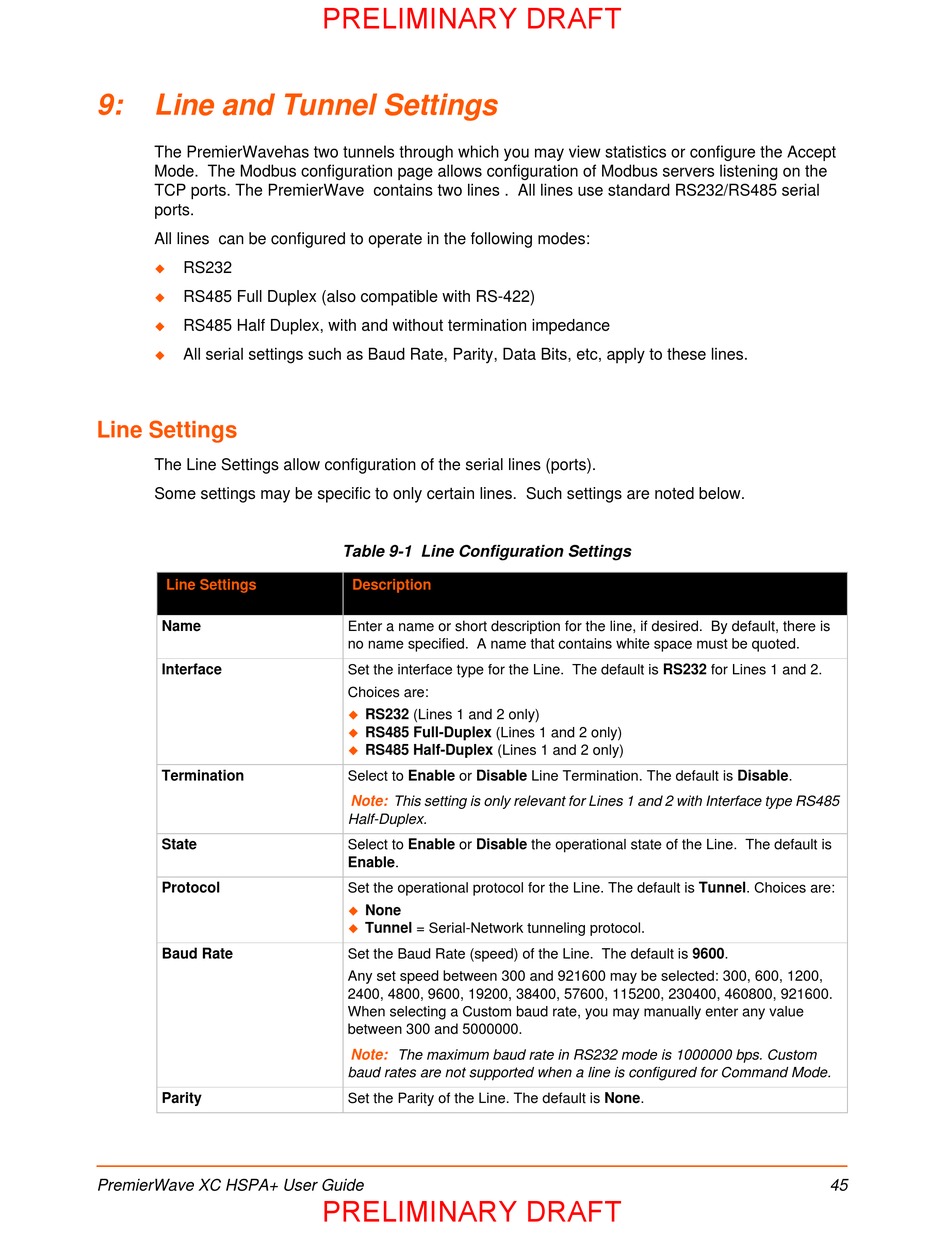

9: Line and Tunnel Settings
The PremierWavehas two tunnels through which you may view statistics or configure the Accept
Mode. The Modbus configuration page allows configuration of Modbus servers listening on the
TCP ports. The PremierWave contains two lines . All lines use standard RS232/RS485 serial
ports.
All lines can be configured to operate in the following modes:
RS232

RS485 Full Duplex (also compatible with RS-422)

RS485 Half Duplex, with and without termination impedance

All serial settings such as Baud Rate, Parity, Data Bits, etc, apply to these lines.


Line Settings

The Line Settings allow configuration of the serial lines (ports).
Some settings may be specific to only certain lines. Such settings are noted below.
Line Settings
Name
Interface
Termination
State
Protocol
Baud Rate
Parity
PremierWave XC HSPA+ User Guide
PRELIMINARY DRAFT

Table 9-1 Line Configuration Settings

Description
Enter a name or short description for the line, if desired. By default, there is
no name specified. A name that contains white space must be quoted.
Set the interface type for the Line. The default is RS232 for Lines 1 and 2.
Choices are:
RS232 (Lines 1 and 2 only)

 RS485 Full-Duplex (Lines 1 and 2 only)
 RS485 Half-Duplex (Lines 1 and 2 only)
Select to Enable or Disable Line Termination. The default is Disable.
Note: This setting is only relevant for Lines 1 and 2 with Interface type RS485
Half-Duplex.
Select to Enable or Disable the operational state of the Line. The default is
Enable.
Set the operational protocol for the Line. The default is Tunnel. Choices are:
 None
Tunnel = Serial-Network tunneling protocol.

Set the Baud Rate (speed) of the Line. The default is 9600.
Any set speed between 300 and 921600 may be selected: 300, 600, 1200,
2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600.
When selecting a Custom baud rate, you may manually enter any value
between 300 and 5000000.
Note: The maximum baud rate in RS232 mode is 1000000 bps. Custom
baud rates are not supported when a line is configured for Command Mode.
Set the Parity of the Line. The default is None.
