Tunnel Serial
Settings
Line Settings
Protocol
DTR
To Configure Tunnel Serial Settings
Using Web Manager
To configure the Serial Settings for a specific tunnel, click Tunnel in the menu and select
Tunnel 1 -> Serial Settings.
Using the CLI
To enter Tunnel 1 command level:
Using XML
Include in your file:
Packing Mode
With Packing, data from the serial Line is not sent over the network immediately. Instead, data is
queued and sent in segments, when either the timeout or byte threshold is reached. Packing
applies to both Accept and Connect Modes.
Tunnel Packing Mode
Settings
Mode
Threshold
PremierWave XC HSPA+ User Guide
PRELIMINARY DRAFT

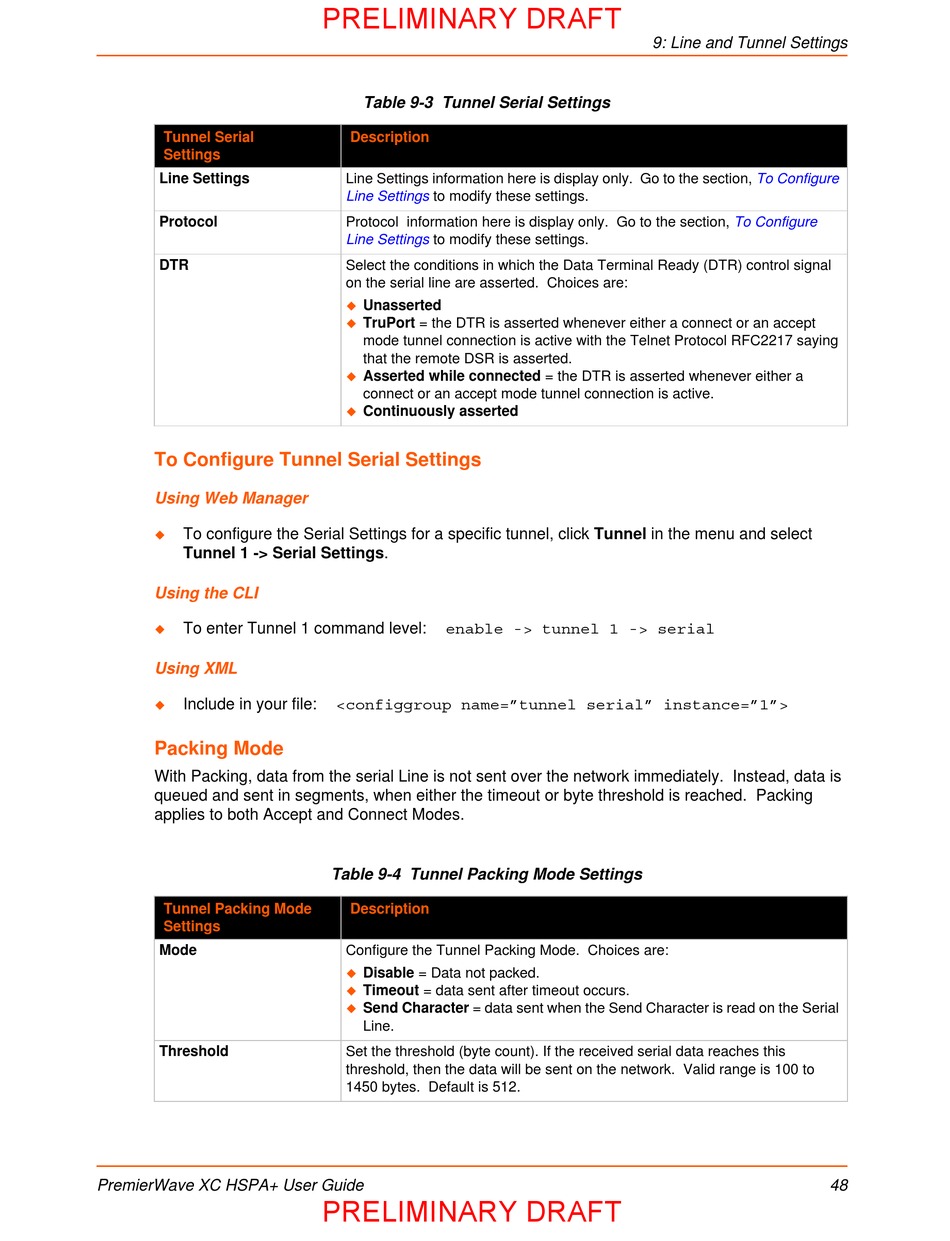

Table 9-3 Tunnel Serial Settings
Description
Line Settings information here is display only. Go to the section,
Line Settings
to modify these settings.
Protocol information here is display only. Go to the section,
Line Settings
to modify these settings.
Select the conditions in which the Data Terminal Ready (DTR) control signal
on the serial line are asserted. Choices are:
Unasserted
TruPort = the DTR is asserted whenever either a connect or an accept
mode tunnel connection is active with the Telnet Protocol RFC2217 saying
that the remote DSR is asserted.
Asserted while connected = the DTR is asserted whenever either a
connect or an accept mode tunnel connection is active.
Continuously asserted
enable -> tunnel 1 -> serial
<configgroup name="tunnel serial" instance="1">
Table 9-4 Tunnel Packing Mode Settings
Description
Configure the Tunnel Packing Mode. Choices are:
Disable = Data not packed.
Timeout = data sent after timeout occurs.
Send Character = data sent when the Send Character is read on the Serial
Line.
Set the threshold (byte count). If the received serial data reaches this
threshold, then the data will be sent on the network. Valid range is 100 to
1450 bytes. Default is 512.
