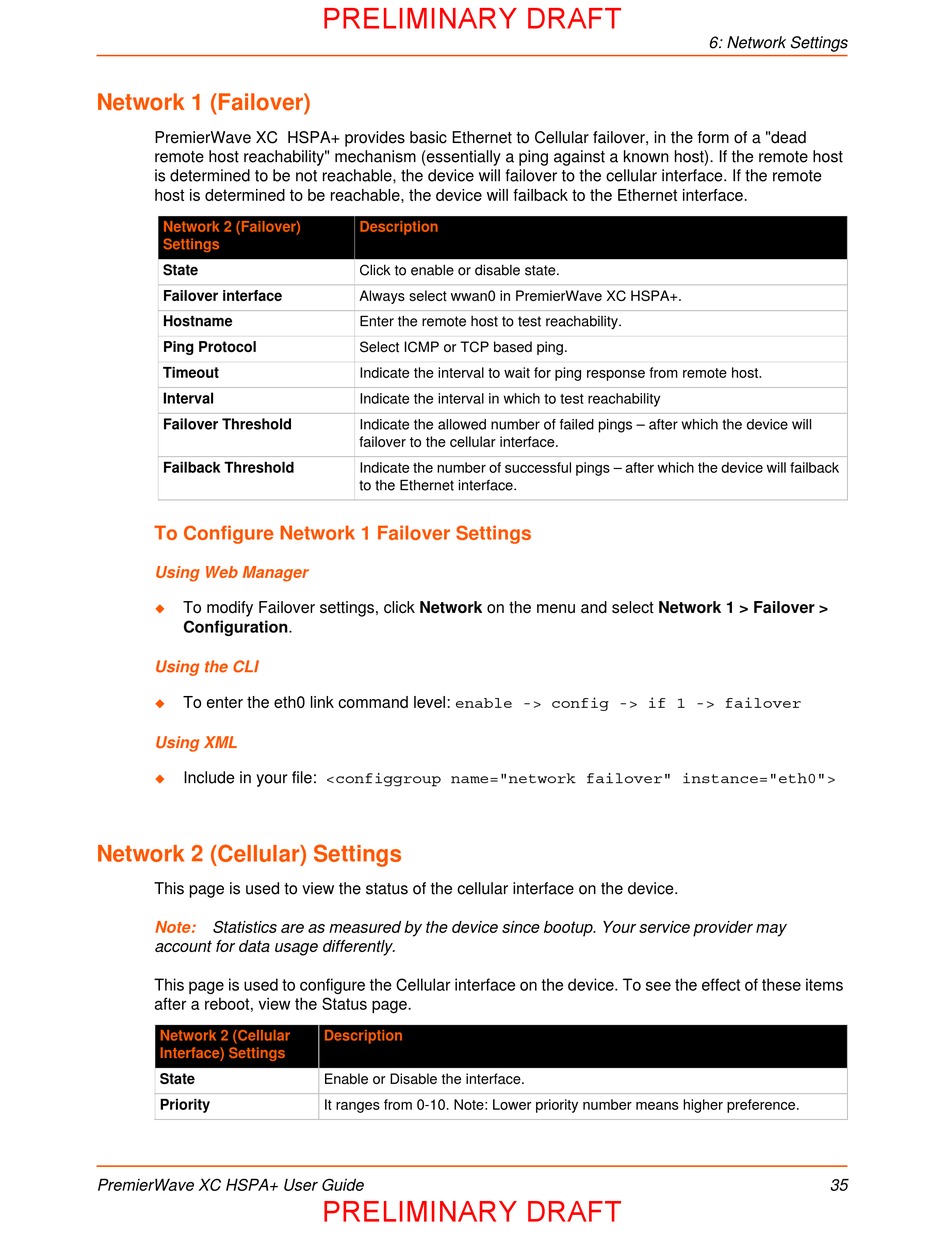

Network 1 (Failover)

PremierWave XC HSPA+ provides basic Ethernet to Cellular failover, in the form of a "dead
remote host reachability" mechanism (essentially a ping against a known host). If the remote host
is determined to be not reachable, the device will failover to the cellular interface. If the remote
host is determined to be reachable, the device will failback to the Ethernet interface.
Network 2 (Failover)
Settings
State
Failover interface
Hostname
Ping Protocol
Timeout
Interval
Failover Threshold
Failback Threshold

To Configure Network 1 Failover Settings

Using Web Manager
To modify Failover settings, click Network on the menu and select Network 1 > Failover >

Configuration.
Using the CLI
To enter the eth0 link command level: enable -> config -> if 1 -> failover

Using XML
Include in your file: <configgroup name="network failover" instance="eth0">


Network 2 (Cellular) Settings

This page is used to view the status of the cellular interface on the device.
Note: Statistics are as measured by the device since bootup. Your service provider may
account for data usage differently.
This page is used to configure the Cellular interface on the device. To see the effect of these items
after a reboot, view the Status page.
Network 2 (Cellular
Interface) Settings
State
Priority
PremierWave XC HSPA+ User Guide
PRELIMINARY DRAFT
Description
Click to enable or disable state.
Always select wwan0 in PremierWave XC HSPA+.
Enter the remote host to test reachability.
Select ICMP or TCP based ping.
Indicate the interval to wait for ping response from remote host.
Indicate the interval in which to test reachability
Indicate the allowed number of failed pings – after which the device will
failover to the cellular interface.
Indicate the number of successful pings – after which the device will failback
to the Ethernet interface.
Description
Enable or Disable the interface.
It ranges from 0-10. Note: Lower priority number means higher preference.
