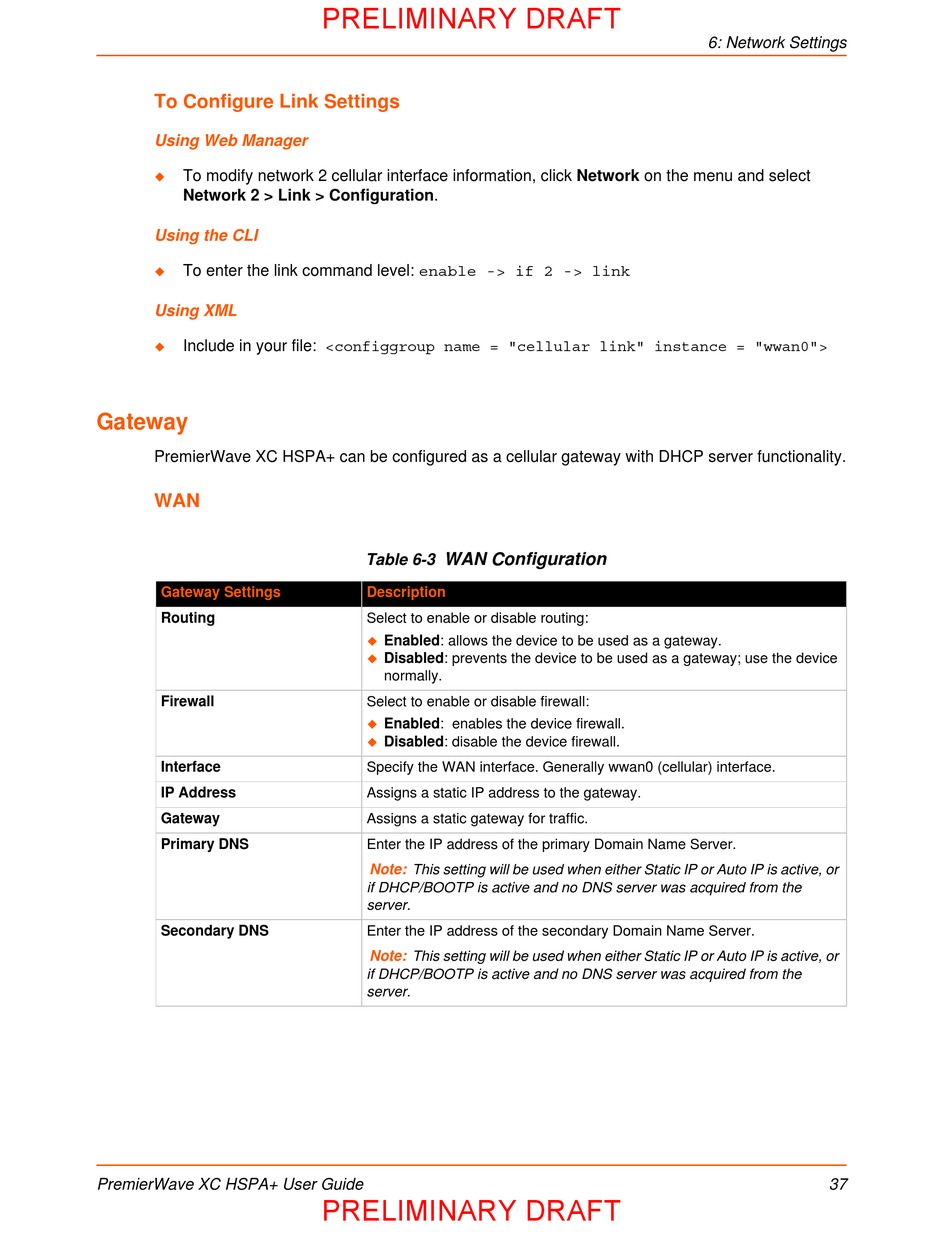

To Configure Link Settings

Using Web Manager
To modify network 2 cellular interface information, click Network on the menu and select

Network 2 > Link > Configuration.
Using the CLI
To enter the link command level: enable -> if 2 -> link

Using XML
Include in your file: <configgroup name = "cellular link" instance = "wwan0">


Gateway

PremierWave XC HSPA+ can be configured as a cellular gateway with DHCP server functionality.

WAN

Gateway Settings
Routing
Firewall
Interface
IP Address
Gateway
Primary DNS
Secondary DNS
PremierWave XC HSPA+ User Guide
PRELIMINARY DRAFT
WAN Configuration
Table 6-3
Description
Select to enable or disable routing:
 Enabled: allows the device to be used as a gateway.
 Disabled: prevents the device to be used as a gateway; use the device
normally.
Select to enable or disable firewall:
 Enabled: enables the device firewall.
 Disabled: disable the device firewall.
Specify the WAN interface. Generally wwan0 (cellular) interface.
Assigns a static IP address to the gateway.
Assigns a static gateway for traffic.
Enter the IP address of the primary Domain Name Server.
Note: This setting will be used when either Static IP or Auto IP is active, or
if DHCP/BOOTP is active and no DNS server was acquired from the
server.
Enter the IP address of the secondary Domain Name Server.
Note: This setting will be used when either Static IP or Auto IP is active, or
if DHCP/BOOTP is active and no DNS server was acquired from the
server.
