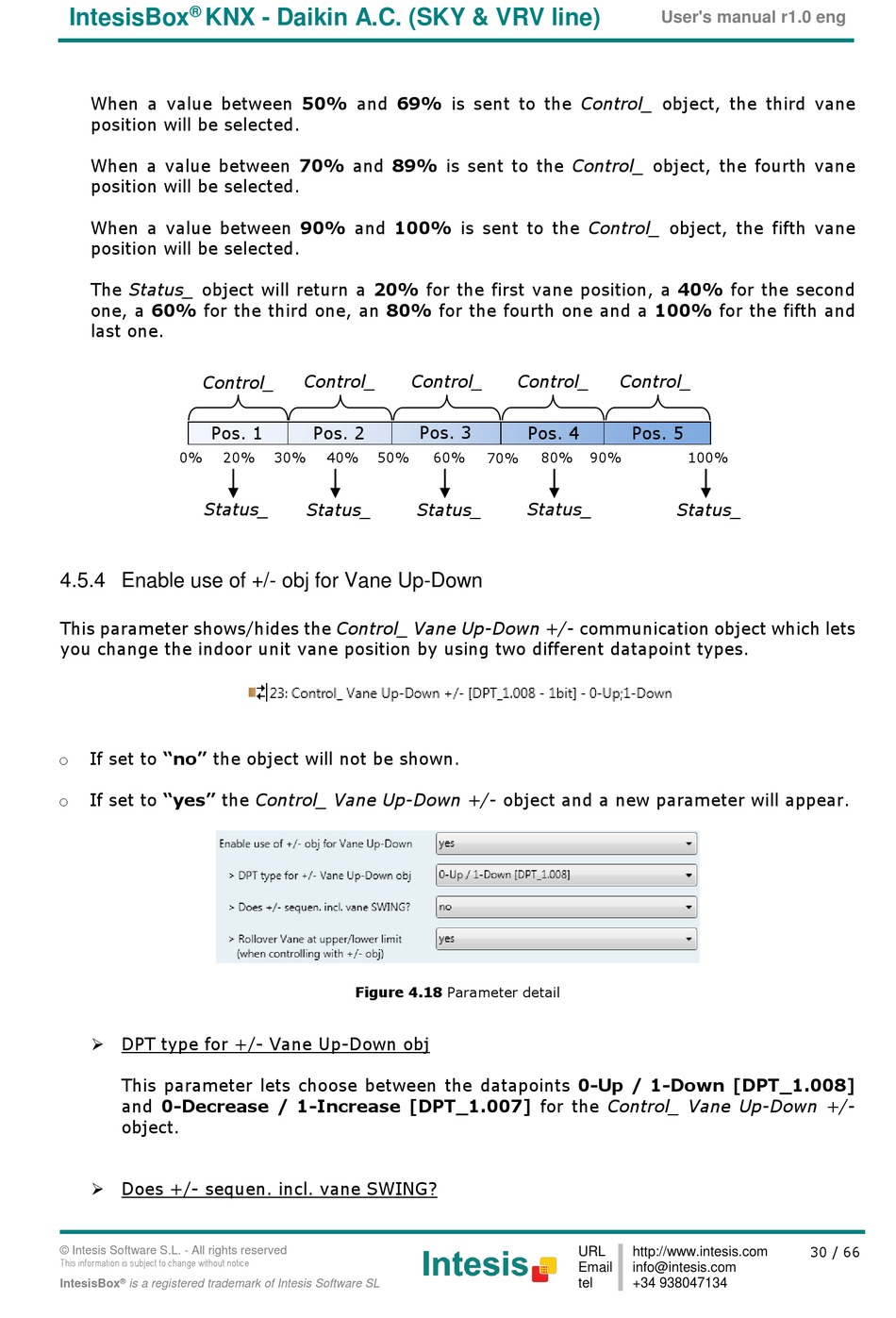

IntesisBox KNX - Daikin A.C. (SKY & VRV line)
When a value between 50% and 69% is sent to the Control_ object, the third vane
position will be selected.
When a value between 70% and 89% is sent to the Control_ object, the fourth vane
position will be selected.
When a value between 90% and 100% is sent to the Control_ object, the fifth vane
position will be selected.
The Status_ object will return a 20% for the first vane position, a 40% for the second
one, a 60% for the third one, an 80% for the fourth one and a 100% for the fifth and
last one.
Control_
object
Pos. 1
0% 20%
Status_

4.5.4 Enable use of +/- obj for Vane Up-Down

This parameter shows/hides the Control_ Vane Up-Down +/- communication object which lets
you change the indoor unit vane position by using two different datapoint types.
If set to "no" the object will not be shown.
o
If set to "yes" the Control_ Vane Up-Down +/- object and a new parameter will appear.
o
 DPT type for +/- Vane Up-Down obj
This parameter lets choose between the datapoints 0-Up / 1-Down [DPT_1.008]
and 0-Decrease / 1-Increase [DPT_1.007] for the Control_ Vane Up-Down +/-
object.
 Does +/- sequen. incl. vane SWING?
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL
Control_ Control_
Pos. 2 Pos. 3
30% 40% 50% 60%
Status_ Status_
Figure 4.18 Parameter detail
Control_ Control_
Pos. 4 Pos. 5
70% 80% 90%
Status_
