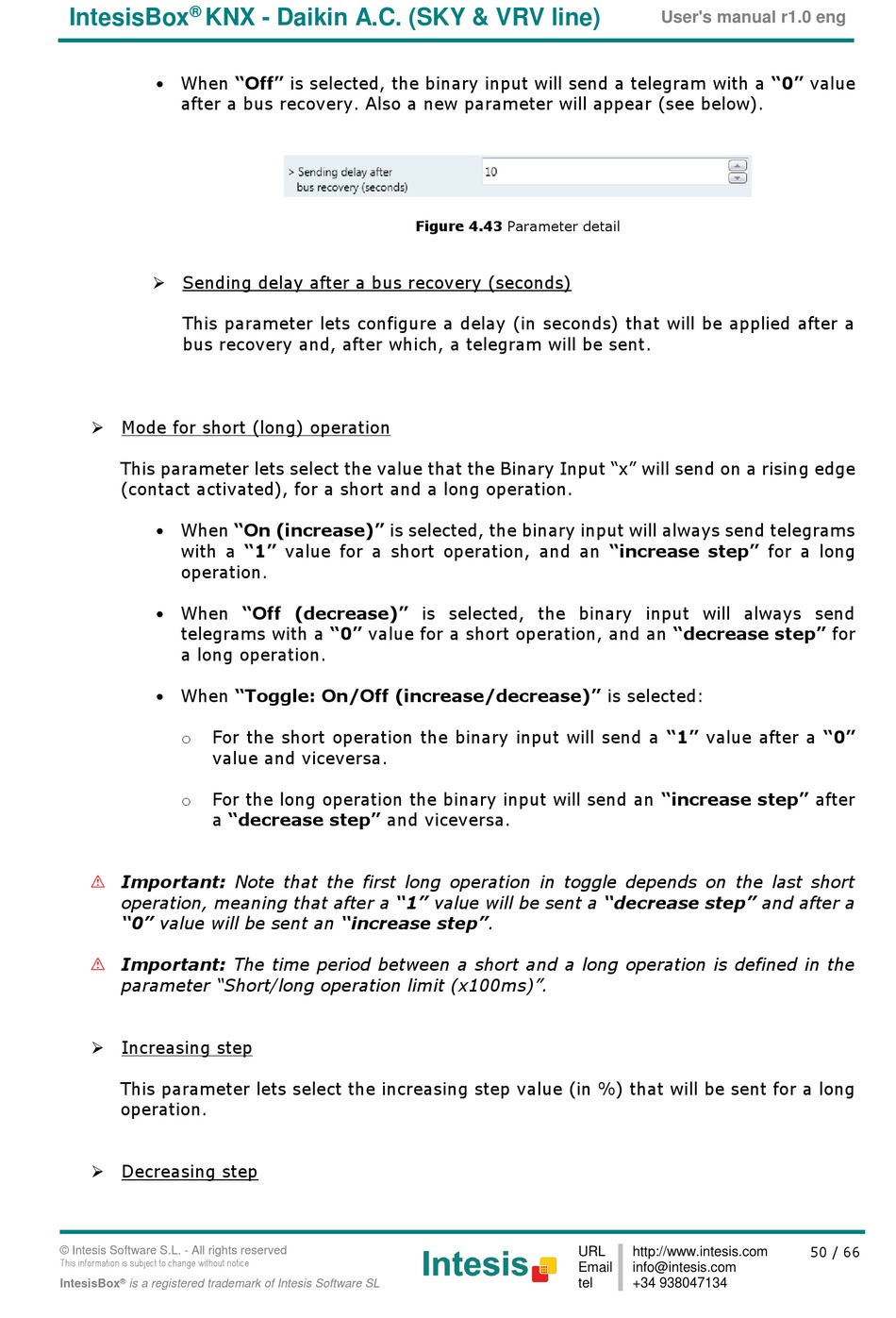

IntesisBox DK-RC-KNX-1i User Manual page 50

®
IntesisBox KNX - Daikin A.C. (SKY & VRV line)
 When "Off" is selected, the binary input will send a telegram with a "0" value
after a bus recovery. Also a new parameter will appear (see below).
 Sending delay after a bus recovery (seconds)
This parameter lets configure a delay (in seconds) that will be applied after a
bus recovery and, after which, a telegram will be sent.
 Mode for short (long) operation
This parameter lets select the value that the Binary Input "x" will send on a rising edge
(contact activated), for a short and a long operation.
 When "On (increase)" is selected, the binary input will always send telegrams
with a "1" value for a short operation, and an "increase step" for a long
operation.
 When "Off (decrease)" is selected, the binary input will always send
telegrams with a "0" value for a short operation, and an "decrease step" for
a long operation.
 When "Toggle: On/Off (increase/decrease)" is selected:
For the short operation the binary input will send a "1" value after a "0"
o
value and viceversa.
For the long operation the binary input will send an "increase step" after
o
a "decrease step" and viceversa.
Important: Note that the first long operation in toggle depends on the last short
operation, meaning that after a "1" value will be sent a "decrease step" and after a
"0" value will be sent an "increase step".
Important: The time period between a short and a long operation is defined in the
parameter "Short/long operation limit (x100ms)".
 Increasing step
This parameter lets select the increasing step value (in %) that will be sent for a long
operation.
 Decreasing step
