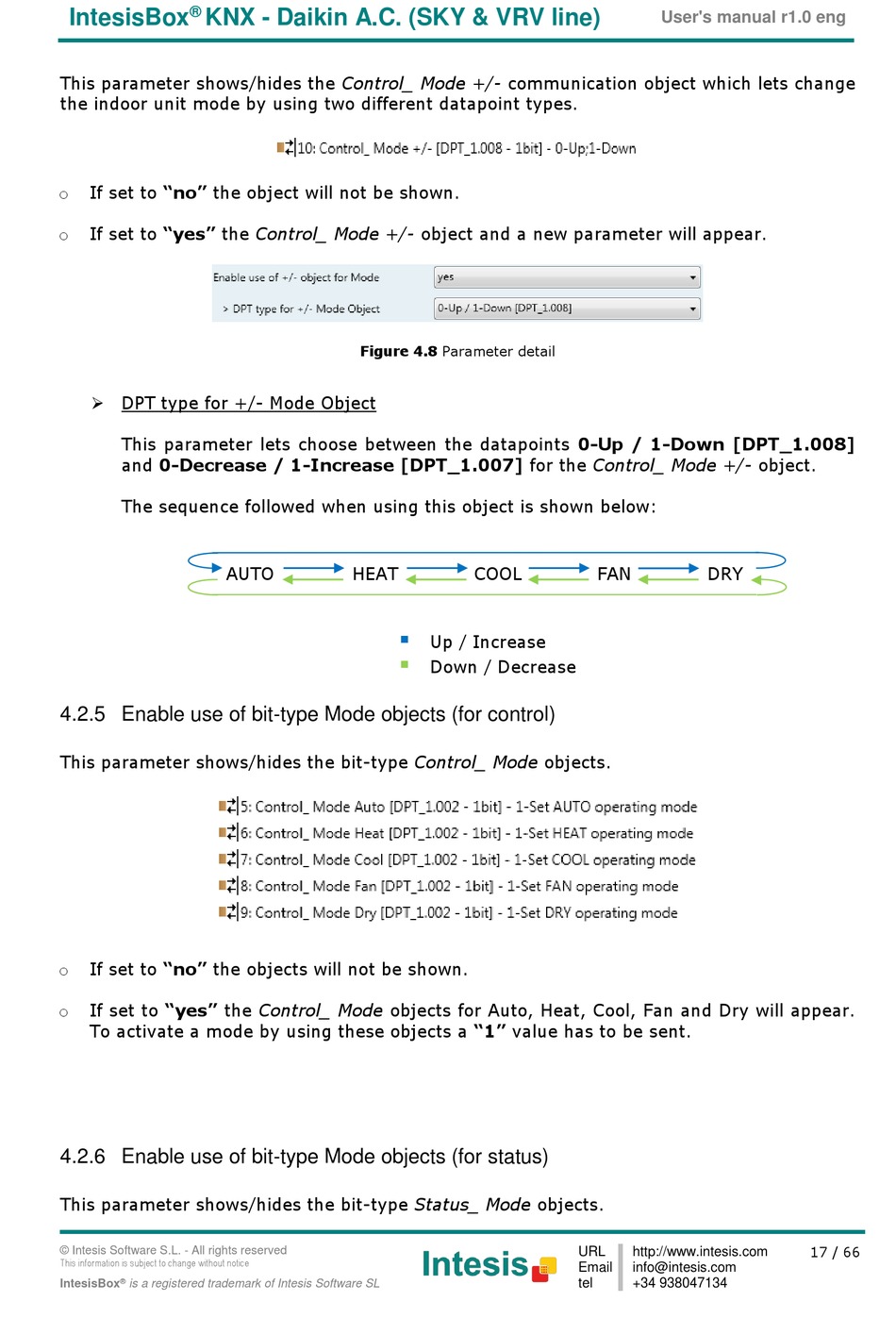

Enable Use Of Bit-Type Mode Objects (For Control); Enable Use Of Bit-Type Mode Objects (For Status) - IntesisBox DK-RC-KNX-1i User Manual

®
IntesisBox KNX - Daikin A.C. (SKY & VRV line)
This parameter shows/hides the Control_ Mode +/- communication object which lets change
the indoor unit mode by using two different datapoint types.
If set to "no" the object will not be shown.
o
If set to "yes" the Control_ Mode +/- object and a new parameter will appear.
o
 DPT type for +/- Mode Object
This parameter lets choose between the datapoints 0-Up / 1-Down [DPT_1.008]
and 0-Decrease / 1-Increase [DPT_1.007] for the Control_ Mode +/- object.
The sequence followed when using this object is shown below:
AUTO

4.2.5 Enable use of bit-type Mode objects (for control)

This parameter shows/hides the bit-type Control_ Mode objects.
If set to "no" the objects will not be shown.
o
If set to "yes" the Control_ Mode objects for Auto, Heat, Cool, Fan and Dry will appear.
o
To activate a mode by using these objects a "1" value has to be sent.

4.2.6 Enable use of bit-type Mode objects (for status)

This parameter shows/hides the bit-type Status_ Mode objects.
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL
Figure 4.8 Parameter detail
HEAT COOL

Up / Increase

Down / Decrease
User's manual r1.0 eng
FAN DRY
URL http://www.intesis.com
Email info@intesis.com
tel +34 938047134
17 / 66
