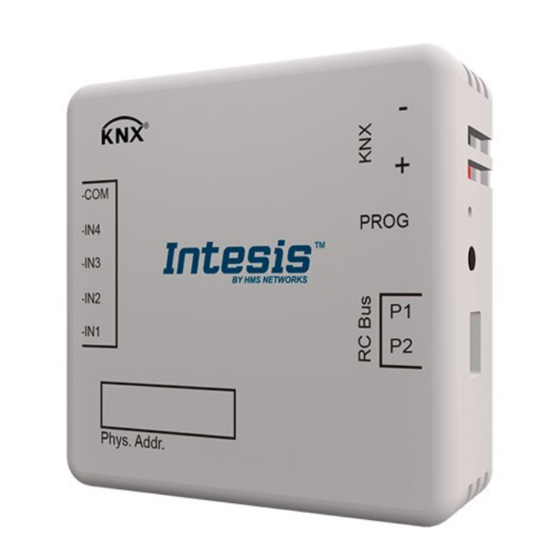

Gateway for integration of daikin air conditioners into knx tp-1 (eib) control systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IntesisBox
®
DK-RC-KNX-1i
v2.0
User's Manual
Issue Date: 25/02/2016
r1.0 eng

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DK-RC-KNX-1i and is the answer not in the manual?

Questions and answers

Related Manuals for IntesisBox DK-RC-KNX-1i

Summary of Contents for IntesisBox DK-RC-KNX-1i

  • Page 1 IntesisBox ® DK-RC-KNX-1i v2.0 User's Manual Issue Date: 25/02/2016 r1.0 eng...
  • Page 2 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng © Intesis Software S.L. 2016 All Rights Reserved. Information in this document is subject to change without notice. The software described in this document is furnished under a license agreement or nondisclosure agreement. The software may be used only in accordance with the terms of those agreements.
  • Page 3 KNX TP-1 (EIB) control systems. Compatible with line conditioners commercialized by Daikin. Application’s Program Version: 2.0 Order Code: DK-RC-KNX-1i 3 / 66 © Intesis Software S.L. - All rights reserved http://www.intesis.com This information is subject to change without notice Email info@intesis.com +34 938047134 ®...

  • Page 4: Table Of Contents

    Configuration and setup ..................9 ETS Parameters ..................... 10 General dialog .................... 11 4.1.1 DK-RC-KNX-1i is master in P1/P2 bus ............11 4.1.2 Send READs for Control_ objects on bus recovery ........12 4.1.3 Scene to load on bus recovery / startup ........... 12 4.1.4...
  • Page 5 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 4.7.1 Enable use of scenes ................37 4.7.2 Scenes can be stored from KNX bus ............38 4.7.3 Enable use of bit objects for scene execution ..........39 4.7.4...

  • Page 6: Presentation

    KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 1. Presentation DK-RC-KNX-1i allows a complete and natural integration of DAIKIN air conditioners with KNX control systems. Compatible with all SKY Air and VRV models commercialized by DAIKIN.

  • Page 7: Connection

    2.1 DK-RC-KNX-1i without DAIKIN Remote Controller The DK-RC-KNX-1i can be connected directly to the P1/P2 bus of the indoor unit (no Daikin remote controller -RC from now on- also connected in the P1 P2 bus). If this is the case, DK- RC-KNX-1i must be configured as master (using the ETS software), see connection diagram below.
  • Page 8 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng Connections diagrams: DK-RC-KNX-1i without DAIKIN RC KNX TP-1 AC Indoor Unit ® IntesisBox (EIB) bus AC Unit Internal DK-RC-KNX-1 electronic Connection to P1 P2 control board bus.

  • Page 9: Configuration And Setup

    IMPORTANT: Do not forget to select the correct settings of AC indoor unit being connected to the DK-RC-KNX-1i (Fan speed and Vane), this is in "Parameters" of the device in ETS. 9 / 66 ©...

  • Page 10: Ets Parameters

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 4. ETS Parameters When imported to the ETS software for the first time, the gateway shows the following default parameter configuration: Figure 4.1 Default parameter configuration With this configuration it’s possible to send On/Off (Control_ On/Off), change the AC Mode...

  • Page 11: General Dialog

    If set to “yes” the gateway will be master of the bus. It is not necessary to have any BRC remote controller in this case but, if there are, they must be configured as slaves. The next parameter is also shown when selecting DK-RC-KNX-1i as master in P1 P2 bus: Figure 4.3 Parameter detail ...

  • Page 12: Send Reads For Control_ Objects On Bus Recovery

    Table 4.1 Operating Mode compatibility 4.1.2 Send READs for Control_ objects on bus recovery When this parameter is enabled, DK-RC-KNX-1i will send READ telegrams for the group addresses associated on its Control_ objects on bus recovery or application reset/start-up. If set to “no” the gateway will not perform any action.

  • Page 13: Enable Func "Control_ Lock Control Obj

    KNX bus reset/failure happens. 4.1.6 Enable func “Operating Hours Counter” This parameter shows/hides the Status_ Operation Hour Counter communication object which counts the number of operating hours for the DK-RC-KNX-1i. If set to “no” the object will not be shown. 13 / 66 ©...

  • Page 14: Enable Object "Error Code [2Byte]

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng If set to “yes” the Status_ Operation Hour Counter object will appear.  This object can be read and sends its status every time an hour is counted. The gateway keeps that count in memory and the status is sent also after a KNX bus reset/failure.

  • Page 15: When Mode Is Auto Status_ Objs Report Actual Operating Status

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng Figure 4.7 Default Mode Configuration dialog All the parameters in this section are related with the different mode properties and communication objects. The byte-type communication object for Mode works with the DTP_20.105. Auto mode will be enabled with a “0”...

  • Page 16: Enable Pid-Compat. Scaling Mode Objects

    / cooling system.  DK-RC-KNX-1i device does not provide individual control on the internal parts of the indoor unit (as can be its compressor, refrigerant valves, etc). Rather, it provides the same level of control as a (user) remote controller.

  • Page 17: Enable Use Of Bit-Type Mode Objects (For Control)

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng This parameter shows/hides the Control_ Mode +/- communication object which lets change the indoor unit mode by using two different datapoint types. If set to “no” the object will not be shown.

  • Page 18: Enable Use Of Text Object For Mode

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng If set to “no” the objects will not be shown. If set to “yes” the Status_ Mode objects for Auto, Heat, Cool, Fan and Dry will appear.

  • Page 19: Enable Use Of Power Mode

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng Figure 4.10 Default Special Modes Configuration dialog The Special Modes can be parameterized through the ETS parameters dialog, and they can be used to give extra functionality.

  • Page 20: Enable Use Of Economy Mode

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng Figure 4.11 Parameter detail  When a “1” value is sent to the Control_ communication object Power Mode will be enabled, and the Status_ object will return this value.

  • Page 21: Enable Use Of Additional Heating Mode

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng  Setpoint delta increase (HEAT) or decrease (COOL) – in Celsius: Number of degrees Celsius that will increase in Heat Mode, or decrease in Cool Mode, while in EconoMode.
  • Page 22 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng If set to “no” the objects will not be shown. If set to “yes” the Control_ Start Additional Cool Mode and Status_ Additional Cool Mode objects and new parameters will appear.

  • Page 23: Fan Speed Configuration Dialog

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 4.4 Fan Speed Configuration dialog Figure 4.12 Default Fan Speed Configuration dialog All the parameters in this section are related with the Fan Speed properties and communication objects.
  • Page 24 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng If this DPT is selected with 2 fan speeds: The first fan speed will be selected if a “1” is sent to the Control_ object. The second fan speed will be selected sending a “2”.

  • Page 25: Enable Use Of +/- Object For Fan Speed

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng Control_ Control_ object Fan Speed 1 Fan Speed 2 100% Status_ Status_ If this DPT is selected with 3 fan speeds: When a value between 0% and 49% is sent to the Control_ object the first fan speed will be selected.

  • Page 26: Enable Use Of Bit-Type Fan Speed Objects (For Control)

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng Figure 4.14 Parameter detail  DPT type for +/- Fan Speed Object This parameter lets choose between the datapoints 0-Up / 1-Down [DPT_1.008] and 0-Decrease / 1-Increase [DPT_1.007] for the Control_ Fan Speed +/- object.

  • Page 27: Enable Use Of Text Object For Fan Speed

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng If set to “no” the objects will not be shown. If set to “yes” the Status_ Fan Speed objects for Speed 1, Speed 2 and Speed 3 (if available) will appear.

  • Page 28: Vane Up-Down Configuration Dialog

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 4.5 Vane Up-Down Configuration dialog Figure 4.16 Vane Up-Down Configuration dialog All the parameters in this section are related with the Vane Up-Down properties and communication objects.

  • Page 29: Dpt Object Type For Vane Up-Down

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng If set to “no” the object will not be shown. If set to “yes” the Control_ Vane Up-Down Swing and Status_ Vane Up-Down Swing objects will appear.

  • Page 30: Enable Use Of +/- Obj For Vane Up-Down

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng When a value between 50% and 69% is sent to the Control_ object, the third vane position will be selected. When a value between 70% and 89% is sent to the Control_ object, the fourth vane position will be selected.

  • Page 31: Enable Use Of Bit-Type Vane U-D Objects (For Control)

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng This parameter lets you choose if SWING function is included (“yes”) or not (“no”) in the sequence when using Control_ Vane Up-Down +/- object as shown in the discontinuous segment at the picture below.

  • Page 32: Enable Use Of Text Object For Vane U-D

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 4.5.7 Enable use of Text object for Vane U-D This parameter shows/hides the Status_ Vane Up-Down Text communication object. If set to “no” the object will not be shown.

  • Page 33: Temperature Configuration Dialog

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 4.6 Temperature Configuration dialog Figure 4.20 Default Temperature Configuration dialog All the parameters in this section are related with the Temperature properties and communication objects. 4.6.1 Periodic sending of “Status_ AC Setp”...

  • Page 34: Transmission Of "Status_ Ac Ret Temp

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 4.6.2 Transmission of “Status_ AC Ret Temp” This parameter lets to you choose if the AC return temperature will be sent “only cyclically”, “only on change” or “cyclically and on change”. The AC return temperature is sent through the communication object Status_ AC Return Temp.

  • Page 35: Enable Limits On Control_ Setpoint Obj

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 4.6.4 Enable limits on Control_ Setpoint obj This parameter enables to define temperature limits for the Control_ Setpoint Temperature object. Figure 4.24 Parameter detail If set to “no” the setpoint temperature limits for the Control_ Setpoint Temperature object will be the default: 16ºC for the lower limit and 32ºC for the upper limit.
  • Page 36 DK-RC-KNX-1i device). This option is not available on all the indoor unit models. Note that when this parameter is enabled in the DK-RC-KNX-1i, it may require the AC indoor unit to be programmed to work in a specific way regarding the ambient temperature sensor, in one of the three options explained above.

  • Page 37: Scene Configuration Dialog

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng This formula will be applied as soon as the Control_ Setpoint Temperature and Control_ Ambient Temperature objects are written at least once from the KNX installation. After that, they are kept always consistent.

  • Page 38: Scenes Can Be Stored From Knx Bus

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 4.7.2 Scenes can be stored from KNX bus This parameter shows/hides the Control_ Save/Exec Scene and all the Control_ Store Scene (if enabled) communication objects. If set to “no” the communication objects will not be shown.

  • Page 39: Enable Use Of Bit Objects For Scene Execution

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 4.7.3 Enable use of bit objects for scene execution This parameter shows/hides the Control_ Execute Scene bit-type communication objects. Figure 4.28 Parameter detail If set to “no” the communication objects will not be shown.
  • Page 40 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng  Scene “x” / Value for On-Off This parameter lets you choose the power of the indoor unit when the scene is executed. The following options are available: “ON”, “OFF” or “(unchanged)”.

  • Page 41: Switch-Off Timeouts Configuration Dialog

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 4.8 Switch-Off Timeouts Configuration dialog Figure 4.31 Default Switch-Off Timeouts Configuration dialog All the parameters in this section are related with the timeout properties and communication objects.

  • Page 42: Enable Use Of Occupancy Function

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng This parameter lets you choose between the datapoints 0-Open / 1-Closed Window [DPT_1.009] and 0-Stop / 1-Start Timeout [DPT_1.010] for the Control_ Switch Off Timeout.  Disallow On/Off operation while window is Open If set to “no”, On/Off commands while the window is open will be accepted.
  • Page 43 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng This parameter lets you choose how much time to wait (in minutes) before executing the action specified in the next parameter (“Action after timeout elapsed”).  Action after timeout elapsed When Switch-Off is selected, once the timeout has elapsed, the indoor unit will be turned off.
  • Page 44 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng  Timeout to apply action (minutes) This parameter lets you choose how much time to wait (in minutes) before executing the action specified in the next parameter (“Action after timeout elapsed”).

  • Page 45: Enable Use Of Sleep Timeout

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng  If a “1” value is sent to the Control_ Occupancy object after the timeout period, the indoor unit will turn on.  If a “0” value is sent to the Control_ Occupancy after the timeout period no action will be performed.

  • Page 46: Binary Input "X" Configuration Dialog

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 4.9 Binary Input “x” Configuration dialog Figure 4.38 Binary Input Configuration dialog All the parameters in this section are related with the binary inputs properties and communication objects.

  • Page 47: Disabling Function

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng This parameter lets choose a debounce time (in milliseconds) that will be applied to the contact. 4.9.4 Disabling function This parameter shows/hides the Control_ Disable Input x communication object which will let disable/enable the input x.
  • Page 48 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng  When “On” is selected, the binary input will send a telegram with a “1” value after a bus recovery. Also a new parameter will appear (see below).
  • Page 49 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng This parameter lets enable/disable cyclical sending when a determined condition is met.  When “When output value is On” is selected, everytime a “1” value is sent, it will be sent cyclically.
  • Page 50 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng  When “Off” is selected, the binary input will send a telegram with a “0” value after a bus recovery. Also a new parameter will appear (see below).
  • Page 51 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng This parameter lets select the decreasing step value (in %) that will be sent for a long operation.  Short/long operation limit (x100ms) This parameter lets introduce the time period difference for the short and the long operation.
  • Page 52 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng This parameter lets configure a delay (in seconds) that will be applied after a bus recovery and, after which, a telegram will be sent.  Operation This parameter lets select the value that the Binary Input “x”...
  • Page 53 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng  Vanes adjustment time (x100ms) This parameter lets introduce the time period for the vanes adjustment/blind movement (T2 time). When “Value” is selected the communication objects and new parameters for the Input “x”...
  • Page 54 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng  Value on rising edge (when contact activated) This parameter lets define a value for the DTP type configured in the “DPT to be sent” parameter. This value will be sent on a rising edge (contact activated).

  • Page 55: Specifications

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 5. Specifications 70 X 70 X 28 mm Dimensions: 70 g Weight: 5 mA KNX current consumption: 45 mA P1-P2 Bus current consumption: -25 . . . 85ºC Operating Temperature: -40 .

  • Page 56: Ac Unit Types Compatibility

    IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 6. AC Unit Types compatibility. A list of Daikin indoor unit models compatible with DK-RC-KNX-1i and their available features can be found in: http://www.intesis.com/pdf/IntesisBox_DK-RC-xxx-1_AC_Compatibility.pdf 56 / 66 ©...

  • Page 57: Error Codes

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng 7. Error Codes Error in Error Code Remote Error category Error Description KNX Object Controller External protection devices activated Indoor unit PCB assembly failure Interlock error for fan...
  • Page 58 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng Sensor system error of refrigerant temperature Pressure sensor error Current sensor error Discharge pipe thermistor system error Low pressure equivalent saturated temperature sensor system error Suction pipe thermistor system error...
  • Page 59 Centralized remote controller address setting error DK-RC-KNX-1i Error in the communication of DK-RC-KNX-1i device with the AC unit In case you detect an error code not listed, contact your nearest Daikin technical support service for more information on the error meaning.

  • Page 60: Appendix A – Communication Objects Table

    ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng Appendix A – Communication Objects Table DATAPOINT TYPE FLAGS OBJECT LENGT TOPIC NUMBE NAME FUNCTION DPT_I DPT_NAME W T U On/Off Control_ On/Off 1 bit DPT_Switch 1.001...
  • Page 61 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng Control_ Fan Speed / 3 Speeds 1 byte DPT_Enumerated 5.010 1 - Speed 1; 2 - Speed 2; 3 Speed 3 Control_ Fan Speed 1 1 bit DPT_Bool 1.002...
  • Page 62 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng Control_ Setpoint Temp +/- 1 bit DPT_Step 1.007 0 - Decrease; 1 - Increase Control_ Setpoint Temp +/- 1 bit DPT_UpDown 1.008 0 - Up; 1 - Down...
  • Page 63 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng Control_ Execute Scene2 1 bit DPT_Bool 1.002 1 - Execute Scene Control_ Execute Scene3 1 bit DPT_Bool 1.002 1 - Execute Scene Control_ Execute Scene4 1 bit DPT_Bool 1.002...
  • Page 64 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng Status_ Mode Text 14 byte DPT_String_8859_1 16.001 ASCII String Status_ Fan Speed / 2 Speeds 1 byte DPT_Scaling 5.001 50% - Speed 1; 100% - Speed 2 33% - Speed 1;...
  • Page 65 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng Status_ AC Return Temp 2 byte DPT_Value_Temp 9.001 ºC value in EIS5 format Status_ Error/Alarm 1 bit DTP_Alarm 1.005 0 - No Alarm; 1 - Alarm...
  • Page 66 ® IntesisBox KNX - Daikin A.C. (SKY & VRV line) User's manual r1.0 eng Status_ Inx – Value 2 byte DPT_Value_2_Count 8.001 Status_ Inx – Value 2 byte DPT_Value_Temp 9.001 12.00 Status_ Inx – Value 4 byte DPT_Value_4_Ucount Status_ Inx – Dimming –...
