IntesisBox KNX - Daikin A.C. (SKY & VRV line)
If set to "no" the object will not be shown.
o
If set to "yes" the Control_ Vane Up-Down Swing and Status_ Vane Up-Down Swing
o
objects will appear.
 When a "1" value is sent to the Control_ object, the indoor unit enables the
Swing function for the vanes. The Status_ object returns a "1" value.
 When a "0" value is sent to the Control_ object, the Swing function for the
vanes stops and the indoor unit puts them to Position 1. The Status_ object
returns a "0" value.
Important: If a "0" value is sent to the Control_ object while the Swing
function is disabled, the value will be ignored and no change will be applied.

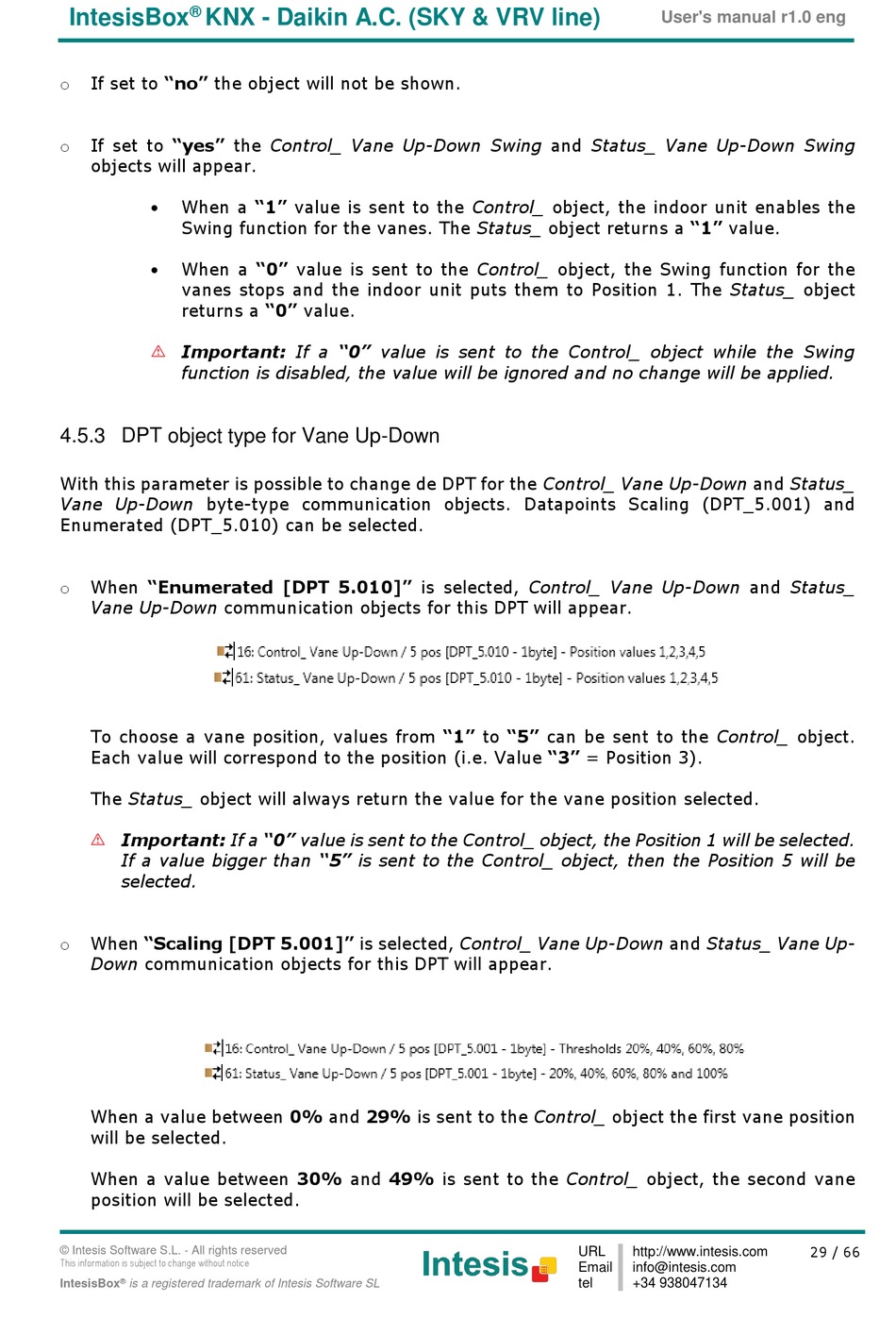

4.5.3 DPT object type for Vane Up-Down

With this parameter is possible to change de DPT for the Control_ Vane Up-Down and Status_
Vane Up-Down byte-type communication objects. Datapoints Scaling (DPT_5.001) and
Enumerated (DPT_5.010) can be selected.
When "Enumerated [DPT 5.010]" is selected, Control_ Vane Up-Down and Status_
o
Vane Up-Down communication objects for this DPT will appear.
To choose a vane position, values from "1" to "5" can be sent to the Control_ object.
Each value will correspond to the position (i.e. Value "3" = Position 3).
The Status_ object will always return the value for the vane position selected.
Important: If a "0" value is sent to the Control_ object, the Position 1 will be selected.
If a value bigger than "5" is sent to the Control_ object, then the Position 5 will be
selected.
When "Scaling [DPT 5.001]" is selected, Control_ Vane Up-Down and Status_ Vane Up-
o
Down communication objects for this DPT will appear.
When a value between 0% and 29% is sent to the Control_ object the first vane position
will be selected.
When a value between 30% and 49% is sent to the Control_ object, the second vane
position will be selected.
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL
User's manual r1.0 eng
URL http://www.intesis.com
Email info@intesis.com
tel +34 938047134
29 / 66
