IntesisBox KNX - Daikin A.C. (SKY & VRV line)
If set to "no" the objects will not be shown.
o
If set to "yes" the Status_ Mode objects for Auto, Heat, Cool, Fan and Dry will appear.
o
When enabled, a mode will return a "1" through its bit-type object.

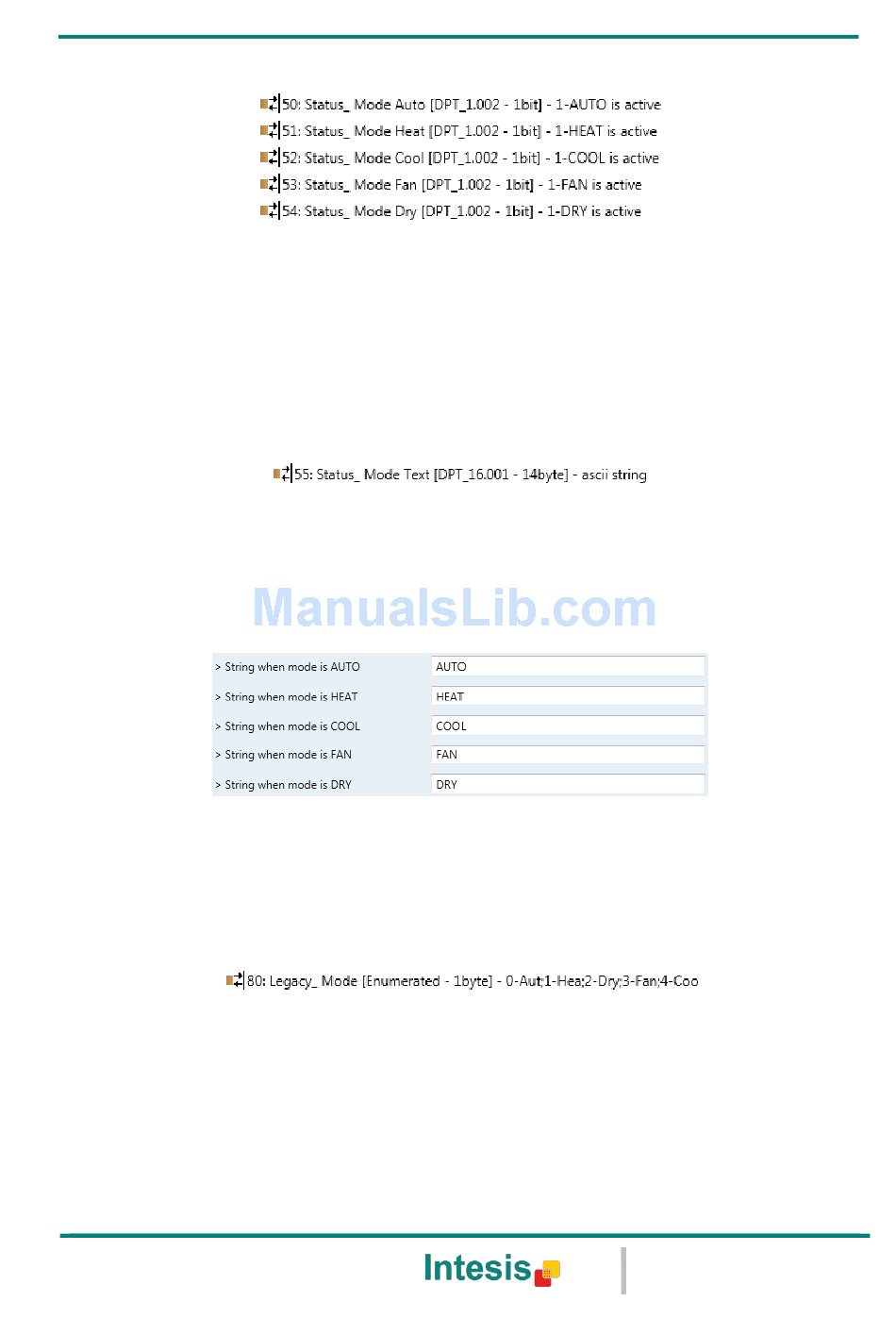

4.2.7 Enable use of Text object for Mode

This parameter shows/hides the Status_ Mode Text communication object.
If set to "no" the object will not be shown.
o
If set to "yes" the Status_ Mode Text object will appear. Also, in the parameters, will be
o
shown five text fields, one for each mode, that will let modify the text string displayed by
the Status_ Mode Text when changing mode.

4.2.8 Enable use of Legacy_ object for Mode

This parameter shows/hides the Legacy_ Mode communication object.
If set to "no" the object will not be shown.
o
If set to "yes" the Legacy_ Mode object will appear. This object lets change the indoor
o
unit mode but it uses a different data type. It is used to maintain compatibility with old
gateway models.
Auto mode will be enabled with a "0" value, Heat mode with a "1" value, Dry mode with
a "2" value, Fan mode with a "3" value and Cool mode with a "4" value

4.3 Special Modes Configuration dialog

© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL
Figure 4.9 Parameter detail
