IntesisBox KNX - Daikin A.C. (SKY & VRV line)

4.9 Binary Input "x" Configuration dialog

All the parameters in this section are related with the binary inputs properties and
communication objects.
4.9.1 Enable use of Input "x"
This parameter enables the use of the Input "x" and shows/hides the Status_ Inx
communication object(s) which will act as configured in the "Function" parameter.
If set to "no" the objects will not be shown.
o
If set to "yes" the Status_ Inx object(s) and new parameters will appear.
o
4.9.2 Contact type
This parameter lets choose the behavior that will have the binary input depending on if the
contact is normally open or normally closed.
There are two possible options to configure the contact type: "NO: Normally Open" and
o
"NC: Normally Closed".
4.9.3 Debounce time
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL

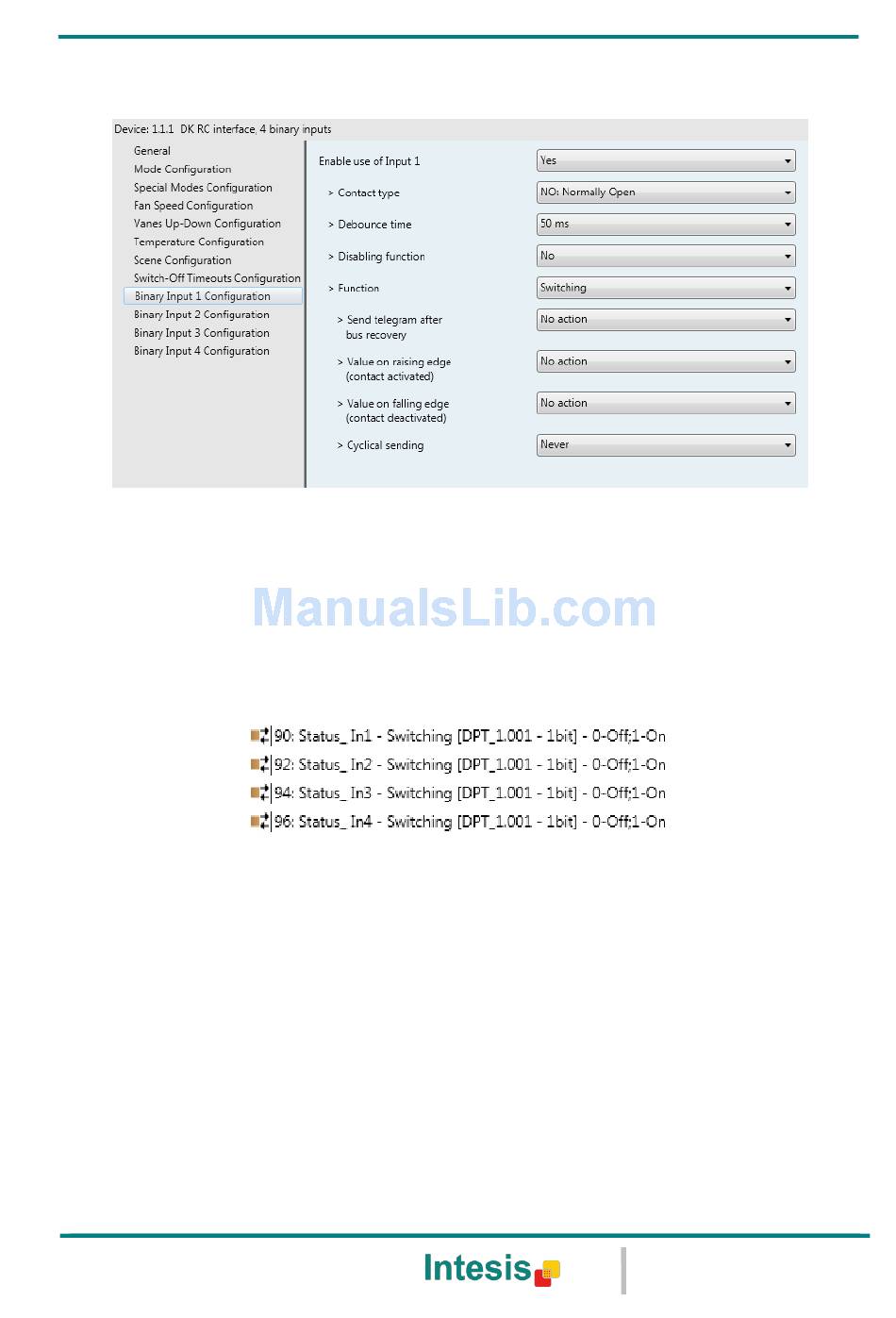

Figure 4.38 Binary Input Configuration dialog
