IntesisBox
KNX - Daikin A.C. (SKY & VRV line)

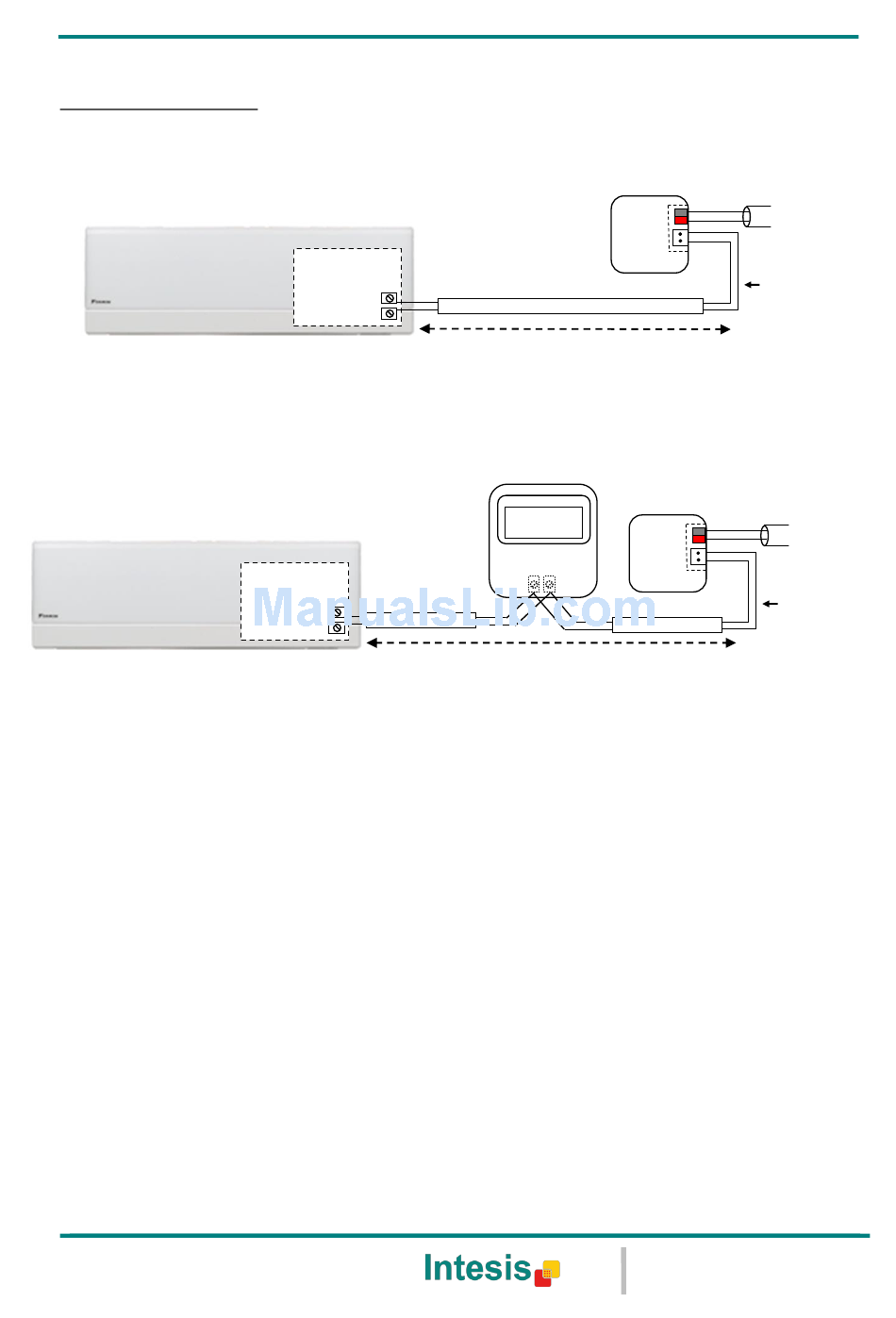

Connections diagrams:
DK-RC-KNX-1i without DAIKIN RC
DK-RC-KNX-1i with DAIKIN RC
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox
is a registered trademark of Intesis Software SL
AC Indoor Unit
Internal
electronic
control board
P2
P1
AC Indoor Unit
Internal
electronic
control board
P1
P2
Figure 2.2 Connections diagrams
User's manual r1.0 eng
®
IntesisBox
P1
AC Unit
P2
DK-RC-KNX-1
Max. 500 m
Remote Control
DAIKIN
IntesisBox
AC Unit
P1 P2
DK-RC-KNX-1
Max. 500 m
URL
http://www.intesis.com
Email
info@intesis.com
tel
+34 938047134
KNX TP-1
(EIB) bus
Connection to P1 P2
bus. Two wires cable.
KNX TP-1
®
(EIB) bus
P2
P1
Connection to P1 P2
bus. Two wires cable.
8 / 66
