  • Page 1 IntesisBox ® Mitsubishi Electric G-50A/GB-50A/GB-50ADA/AG-150A User's Manual Issue date: 04/2018 r23 eng...
  • Page 2 ® User’s Manual r23 eng IntesisBox KNX - Mitsubishi Electric G50 © Intesis Software S.L.U. All Rights Reserved. Information in this document is subject to change without notice. The software described in this document is furnished under a license agreement or nondisclosure agreement. The software may be used only in accordance with the terms of those agreements.

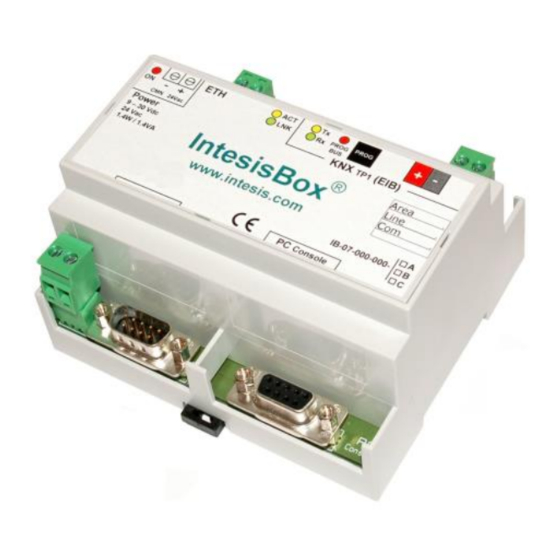

  • Page 3 ® User’s Manual r23 eng IntesisBox KNX - Mitsubishi Electric G50 Gateway for integration of Mitsubishi Electric City Multi air conditioning systems into KNX TP-1 (EIB) control systems. Two models are available for this gateway, with the following Order Codes: ME-AC-KNX-15 Model supporting integration of up to 15 City Multi groups.
  • Page 4: Table Of Contents

    Connections ....................13 Power device ....................13 Connect to KNX ................... 14 Connect to G50 ................... 14 Connect to PC (LinkBoxEIB) ................14 LinkBoxEIB. Configuration & monitoring tool for IntesisBox ® KNX series ....15 Project configuration ..................15 5.1.1 Connection configuration ................
  • Page 5: Description

    KNX system, as if it was a part of the own KNX system. For this, IntesisBox KNX - Mitsubishi Electric G50 acts as a KNX device in the KNX installation allowing any KNX device to read and write its internal points.
  • Page 6: Functionality

    Only needed for configuration software IntesisBox KNX continuously polls (read) all the G50's configured signals and maintains the updated status of all of them in its memory ready to be served when requested from KNX. When a change of status is detected in a Mitsubishi Electric signal, a write telegram is sent to the KNX bus, of the associated KNX Group.
  • Page 7: Capacity Of Intesisbox

    KNX Group. associated to an KNX group address. There are various models of IntesisBox KNX – Mitsubishi Electric G50 with different capacity. The limits showed above are for the model with maximum capacity. The two versions of IntesisBox are: •...
  • Page 8: Interfaces

    KNX devices. IntesisBox does not drain any significant current from the KNX bus - it has a separate own power supply. Another important electrical aspect is that the KNX TP- 1 (EIB) port of IntesisBox is optically isolated (~2500Vrms AC) from all its other ports (EIA232, EIA485, Ethernet) and power supply.
  • Page 9: Mitsubishi Electric G50

    ETS. This application is nor downloadable into IntesisBox KNX neither usable for IntesisBox configuration. Rather, it poses as a means of having a device in the ETS project representing the IntesisBox KNX and its own datapoints/communication objects, and to which group addresses are associated.
  • Page 10 User’s Manual r23 eng IntesisBox KNX - Mitsubishi Electric G50 Property Description / Status Communication error with G50 Communication Virtual signal generated by IntesisBox ® to indicate the status of the Error communication with the G50. Group Group communication error...
  • Page 11 ® User’s Manual r23 eng IntesisBox KNX - Mitsubishi Electric G50 FilterItem Prohibition for Filter Reset control from the local panel Read/Write: CHK_ON, CHK_OFF Ventilation Operational status for LOSSNAY or OA Read/Write: HIGH, LOW, OFF FilterSignSts Status for Filter Dirty...
  • Page 12: Quick Setup

    3. Quick Setup 1. Install LinkBoxEIB. (Details in section 5). 2. Install IntesisBox in the desired installation site (DIN rail mounting inside a metallic industrial cabinet connected to ground is recommended). 3. Power up and connect the communication cables. (Details in section 4).
  • Page 13: Connections

    ® User’s Manual r23 eng IntesisBox KNX - Mitsubishi Electric G50 4. Connections Mitsubishi Electric G50 KNX TP-1 Power (Bus EIB) Ethernet RJ45 Ethernet CMN 24Vac G-50A 9 - 30Vdc GB-50A KNX TP-1 Max.125 mA AG-150 24Vac Max.127mA ® 50-60Hz IntesisBox www.intesis.com...
  • Page 14: Connect To Knx

    KNX - Mitsubishi Electric G50 4.2 Connect to KNX Connect + and – terminals of the KNX bus to the IntesisBox KNX connector (Figure 4.1). The polarity is important. Once connected correctly the KNX Tx led will start blinking. If that doesn’t happen check that the cable is connected properly.
  • Page 15: Linkboxeib. Configuration & Monitoring Tool For Intesisbox

    (if the Software is already installed) or it can be downloaded from the link that can be found in the installation sheet supplied with the IntesisBox ® In this section only the specific project configuration for IntesisBox KNX - Mitsubishi Electric G50 is going to be explained. The External Protocol in this IntesisBox ®...
  • Page 16: Connection Configuration

    • Name: Descriptive name, optional. • Type: It needs to be selected what the IntesisBox is connected to. If EC are used which one is going to be used (1,2 or 3) needs to be selected here. • Dual Setpoint configuration: Selection of Single Setpoint for older models AG150/GB-50ADA, or new models in “old model compatibility mode”.
  • Page 17 In this situation these two objects accept writings from KNX (i.e. to be provided by any KNX thermostat). Both values will be read from the bus at IntesisBox’s start-up (“U” Update). In this situation we call these two objects “Virtual Setpoint” and “Virtual Ambient Temperature”.
  • Page 18 Mitsubishi. Interface configuration parameters: Figure 4.3 KNX interface Configuration • IP: Enter the IP address for IntesisBox (supplied by the network administrator). Default factory setting 192.168.100.246 • NetMask Enter the IP Net Mask for IntesisBox (supplied by the network administrator).
  • Page 19: Signals List

    ® User’s Manual r23 eng IntesisBox KNX - Mitsubishi Electric G50 5.1.2 Signals list Select the Signals tab to configure the signals list (the IntesisBox ® internal points). Figure 4.4 Signal list # (Signal’s number) Description Enumeration of the rows in the grid (signals). If clicked on them the whole...
  • Page 20 ® User’s Manual r23 eng IntesisBox KNX - Mitsubishi Electric G50 identifying every signal with an individual code. In section 2.2, an explanation of every signal is given. A contextual menu appears using mouse right button click over the column showing all the possible signal codes.
  • Page 21 Duplicated groups are not allowed Empty groups are allowed, but only if they have just W activated and one or more listening addresses. Listening addresses Description KNX group addresses that will be listened by IntesisBox ® for this signal. If IntesisBox ®...
  • Page 22 Needs the W flag active and therefore the software activates it automatically When “U” is selected it disables the R flag. Comments DO NOT BE CONFUSED: Philosophy of IntesisBox ® point's U flag is not the same as KNX device's U flag. In KNX devices, U flag means that the point's value will be updated whenever a write telegram for the group address is received by the device.
  • Page 23 ® User’s Manual r23 eng IntesisBox KNX - Mitsubishi Electric G50 Values • 0: Not active • 1: Active  Description Buttons to move the selected row (or rows) up or down inside the grid. To move up or down inside the grid a single row or a group of consecutive rows, just select the row or rows using the left button of the mouse and push the desired up or down button.
  • Page 24: Saving The Configuration

    To do so open the Configuration window (section 5.1) and restart from step 1. 3. Once in the configuration window again, click on exit. The configuration is ready to be sent to the IntesisBox ® (check LinkBoxEIB Manual). The configuration cannot be received from the gateway to LinkBoxEIB, it can only be sent.
  • Page 25: Intesisbox ® And Ets

    ETS project, for example to allow the line couplers have a correct configuration of their filter tables. To do so a Dummy device can be used in ETS to simulate the IntesisBox and associate also to this Dummy device all group addresses ®...
  • Page 26: Mechanical & Electrical Characteristics

    ® User’s Manual r23 eng IntesisBox KNX - Mitsubishi Electric G50 7. Mechanical & electrical characteristics Enclosure Plastic, type PC (UL 94 V-0). Dimensions: 5 DIN modules. 107mm x 105mm x 58mm. Colour Light Grey. RAL 7035. Power 9 to 30Vdc +/-10% 1.4W.
  • Page 27: Dimensions

    ® User’s Manual r23 eng IntesisBox KNX - Mitsubishi Electric G50 8. Dimensions Ethernet port + Power port Console 58 mm port 107 mm 105 mm Free space recommended installing the device into a cabinet (wall or DIN rail mounting), with...
  • Page 28: Annexes

    ® User’s Manual r23 eng IntesisBox KNX - Mitsubishi Electric G50 9. Annexes 9.1 Gateways Mitsubishi Electric G-50A, GB-50A, GB-50ADA, EB-50, AG-150A and AE-200A/E G-50A GB-50A GB-50ADA EB-50GU-A AG-150A AE-200E For more information about these devices, contact your nearest Mitsubishi Electric dealer.
