IntesisBox KNX - Daikin A.C. (SKY & VRV line)

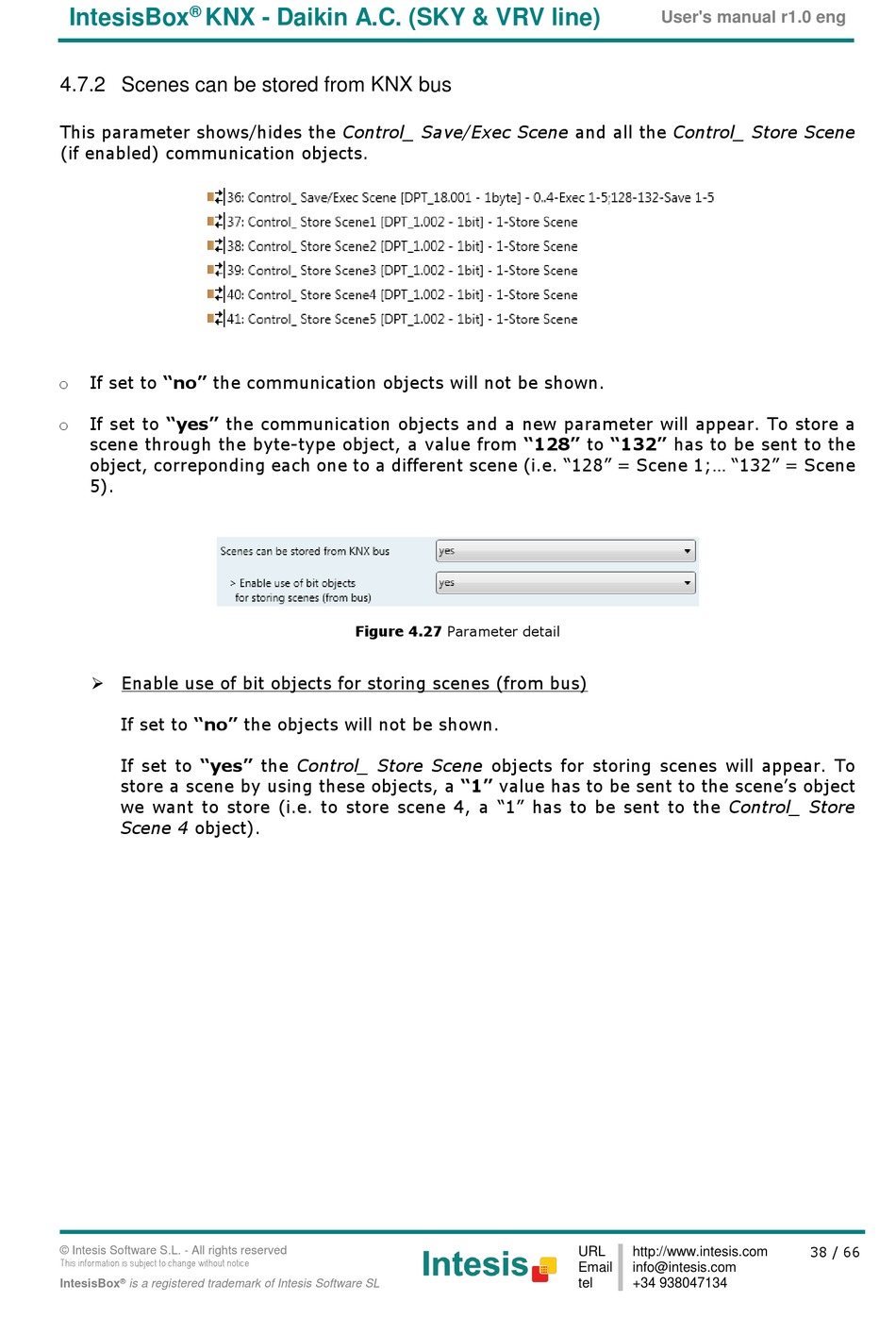

4.7.2 Scenes can be stored from KNX bus

This parameter shows/hides the Control_ Save/Exec Scene and all the Control_ Store Scene
(if enabled) communication objects.
If set to "no" the communication objects will not be shown.
o
If set to "yes" the communication objects and a new parameter will appear. To store a
o
scene through the byte-type object, a value from "128" to "132" has to be sent to the
object, correponding each one to a different scene (i.e. "128" = Scene 1;... "132" = Scene
5).
 Enable use of bit objects for storing scenes (from bus)
If set to "no" the objects will not be shown.
If set to "yes" the Control_ Store Scene objects for storing scenes will appear. To
store a scene by using these objects, a "1" value has to be sent to the scene's object
we want to store (i.e. to store scene 4, a "1" has to be sent to the Control_ Store
Scene 4 object).
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL
Figure 4.27 Parameter detail
