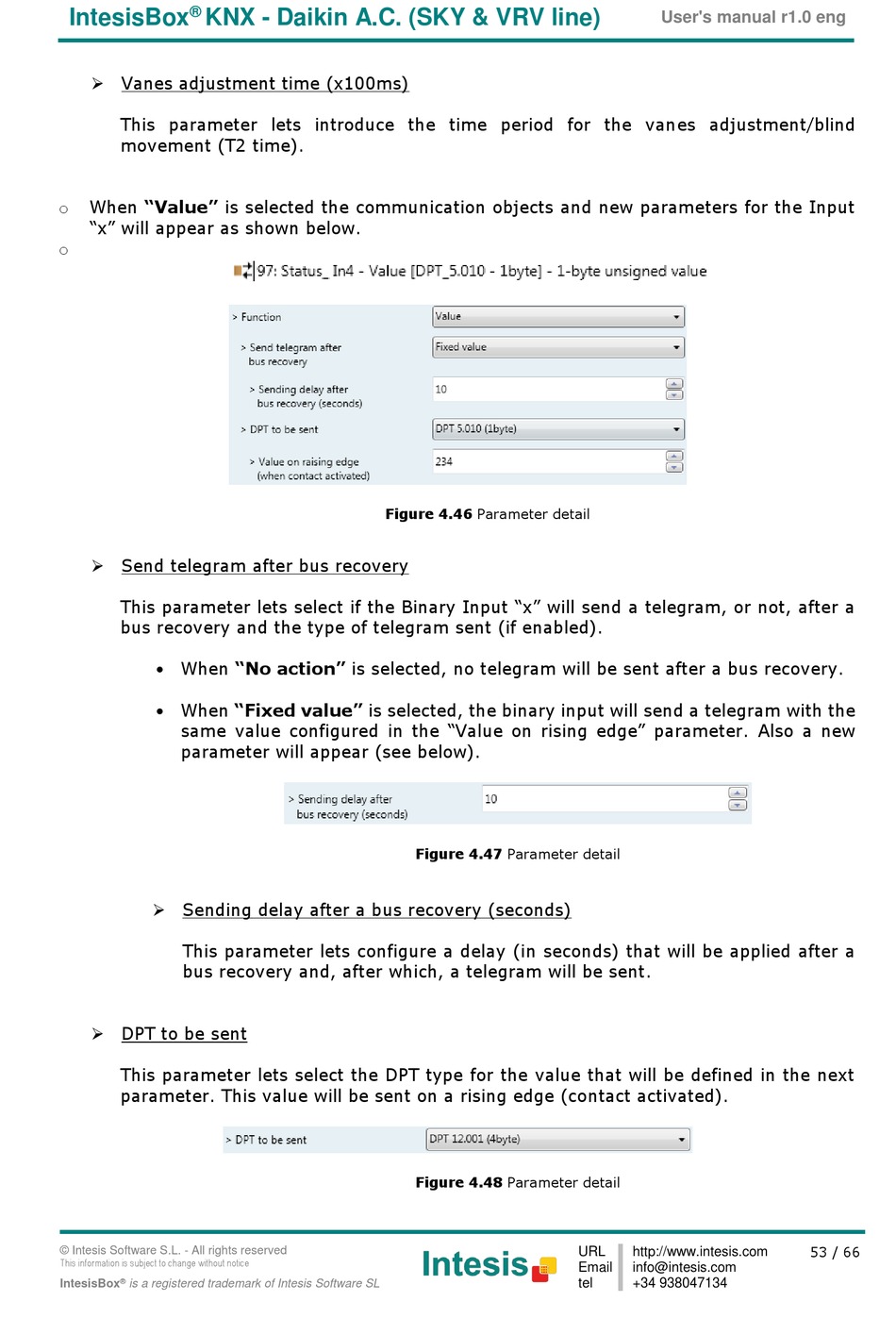

IntesisBox DK-RC-KNX-1i User Manual page 53

®
IntesisBox KNX - Daikin A.C. (SKY & VRV line)
 Vanes adjustment time (x100ms)
This parameter lets introduce the time period for the vanes adjustment/blind
movement (T2 time).
When "Value" is selected the communication objects and new parameters for the Input
o
"x" will appear as shown below.
o
 Send telegram after bus recovery
This parameter lets select if the Binary Input "x" will send a telegram, or not, after a
bus recovery and the type of telegram sent (if enabled).
 When "No action" is selected, no telegram will be sent after a bus recovery.
 When "Fixed value" is selected, the binary input will send a telegram with the
same value configured in the "Value on rising edge" parameter. Also a new
parameter will appear (see below).
 Sending delay after a bus recovery (seconds)
This parameter lets configure a delay (in seconds) that will be applied after a
bus recovery and, after which, a telegram will be sent.
 DPT to be sent
This parameter lets select the DPT type for the value that will be defined in the next
parameter. This value will be sent on a rising edge (contact activated).
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL
Figure 4.46 Parameter detail
Figure 4.47 Parameter detail
Figure 4.48 Parameter detail
