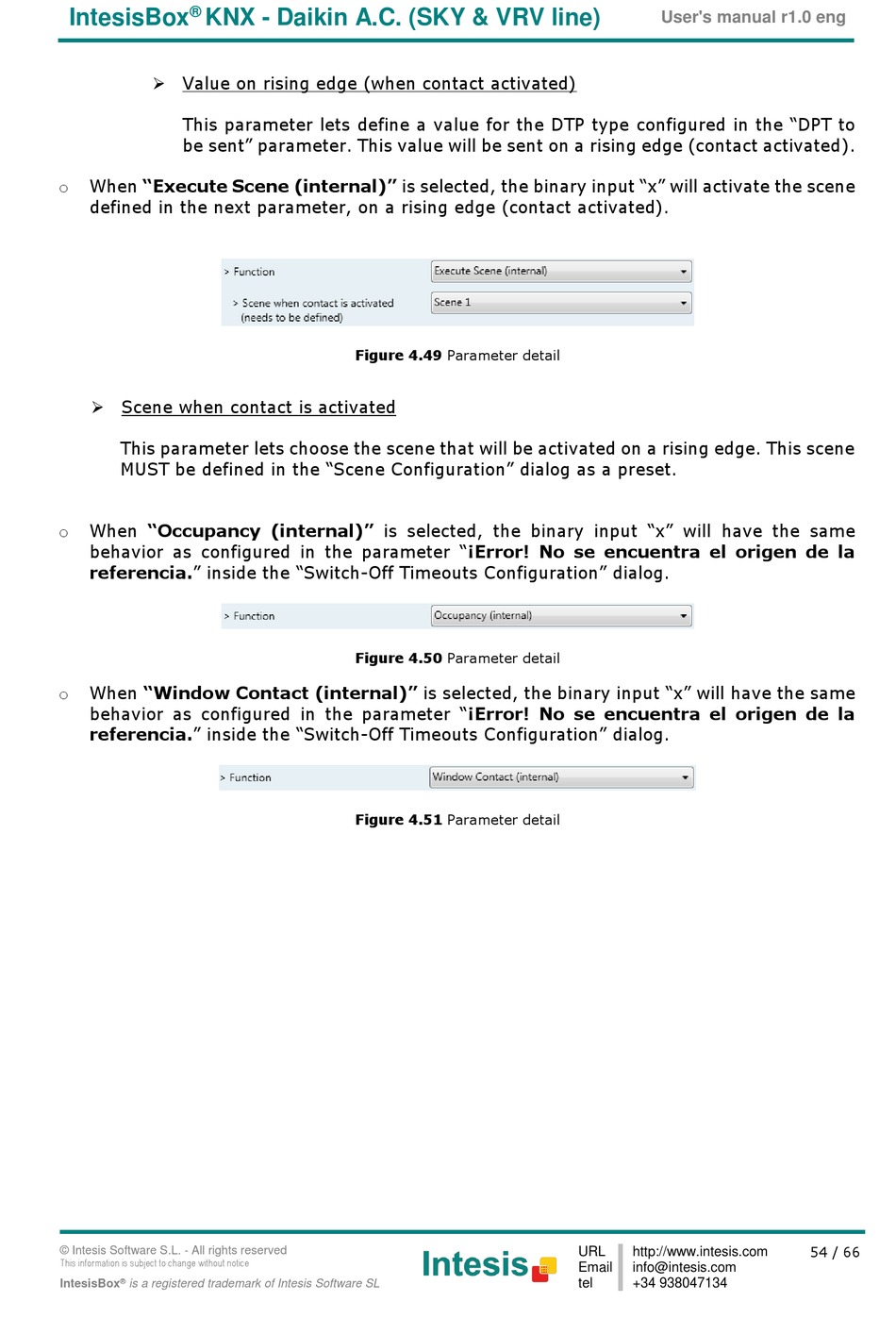

IntesisBox DK-RC-KNX-1i User Manual page 54

®
IntesisBox KNX - Daikin A.C. (SKY & VRV line)
 Value on rising edge (when contact activated)
This parameter lets define a value for the DTP type configured in the "DPT to
be sent" parameter. This value will be sent on a rising edge (contact activated).
When "Execute Scene (internal)" is selected, the binary input "x" will activate the scene
o
defined in the next parameter, on a rising edge (contact activated).
 Scene when contact is activated
This parameter lets choose the scene that will be activated on a rising edge. This scene
MUST be defined in the "Scene Configuration" dialog as a preset.
When "Occupancy (internal)" is selected, the binary input "x" will have the same
o
behavior as configured in the parameter "¡Error! No se encuentra el origen de la
referencia." inside the "Switch-Off Timeouts Configuration" dialog.
When "Window Contact (internal)" is selected, the binary input "x" will have the same
o
behavior as configured in the parameter "¡Error! No se encuentra el origen de la
referencia." inside the "Switch-Off Timeouts Configuration" dialog.
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL
Figure 4.49 Parameter detail
Figure 4.50 Parameter detail
Figure 4.51 Parameter detail
