IntesisBox KNX - Daikin A.C. (SKY & VRV line)
All the parameters in this section are related with the different mode properties and
communication objects.
The byte-type communication object for Mode works with the DTP_20.105. Auto mode will be
enabled with a "0" value, Heat mode with a "1" value, Cool mode with a "3" value, Fan
mode with a "9" value and Dry mode with a "14" value.

4.2.1 When mode is AUTO Status_ objs report actual operating status

This parameter shows the real status of the indoor unit when Auto mode is enabled.
If set to "no", when the indoor unit is set to Auto mode, all the Status_ objects concerning
o
mode will only show Auto enabled.
If set to "yes", when the indoor unit is set to Auto mode, all the Status_ objects
o
concerning mode will show the real mode which the machine is working (Cool, Heat, Dry,
Fan). In case of the bitfield objects, also the Status_ Mode Auto will be shown enabled
with a "1" value.

4.2.2 Enable use of Heat / Cool bit-type obj

This parameter shows/hides the Control_ and Status_ Mode Cool/Heat communication
objects.
If set to "no" the objects will not be shown.
o
If set to "yes" the Control_ and Status_ Mode Cool/Heat objects will appear.
o
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL

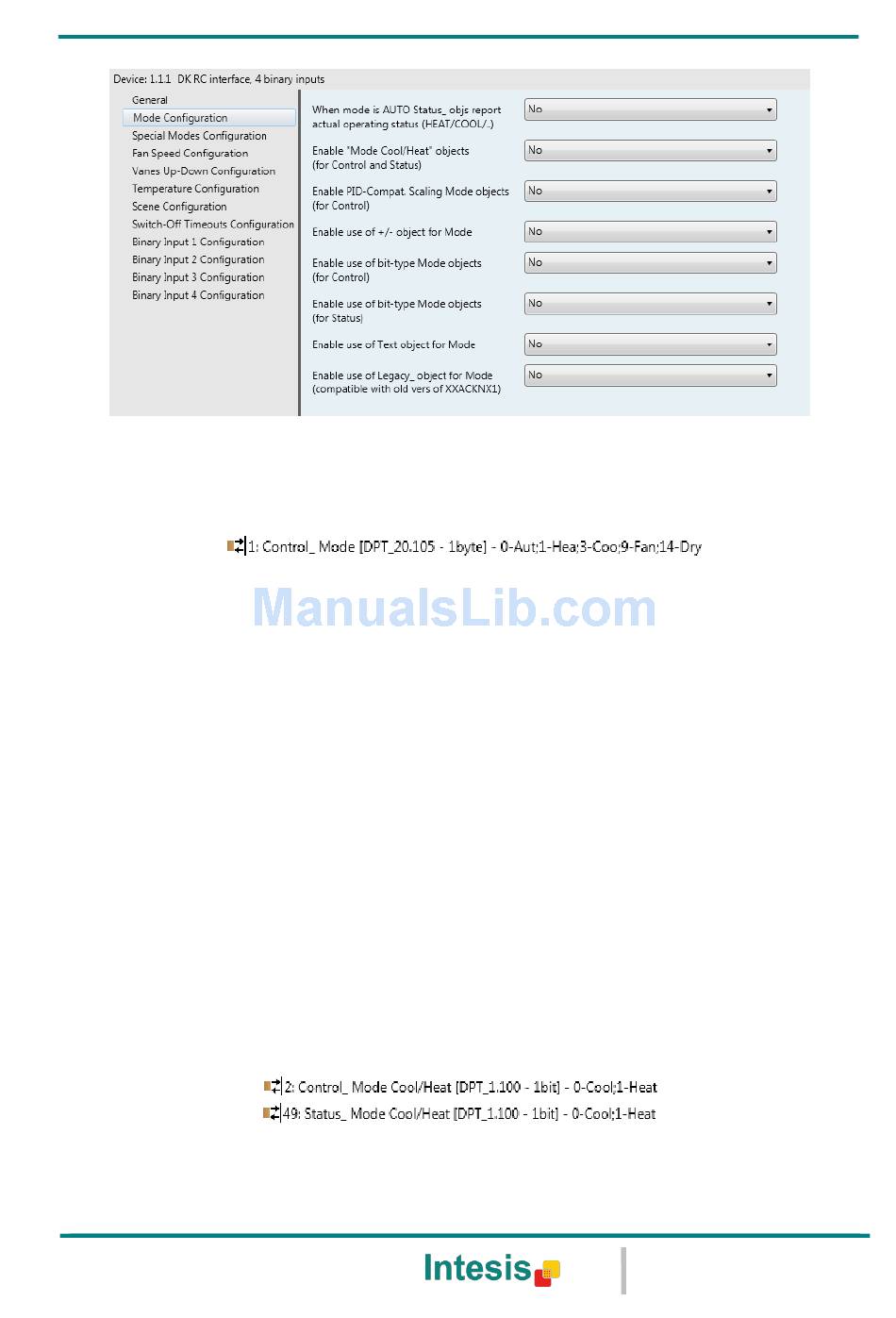

Figure 4.7 Default Mode Configuration dialog
User's manual r1.0 eng
URL http://www.intesis.com
Email info@intesis.com
tel +34 938047134
15 / 66
