IntesisBox KNX - Daikin A.C. (SKY & VRV line)
 When a "1" value is sent to the Control_ communication object, Heat mode
will be enabled in the indoor unit, and the Status_ object will return this value.
 When a "0" value is sent to the Control_ communication object, Cool mode
will be enabled in the indoor unit, and the Status_ object will return this value.

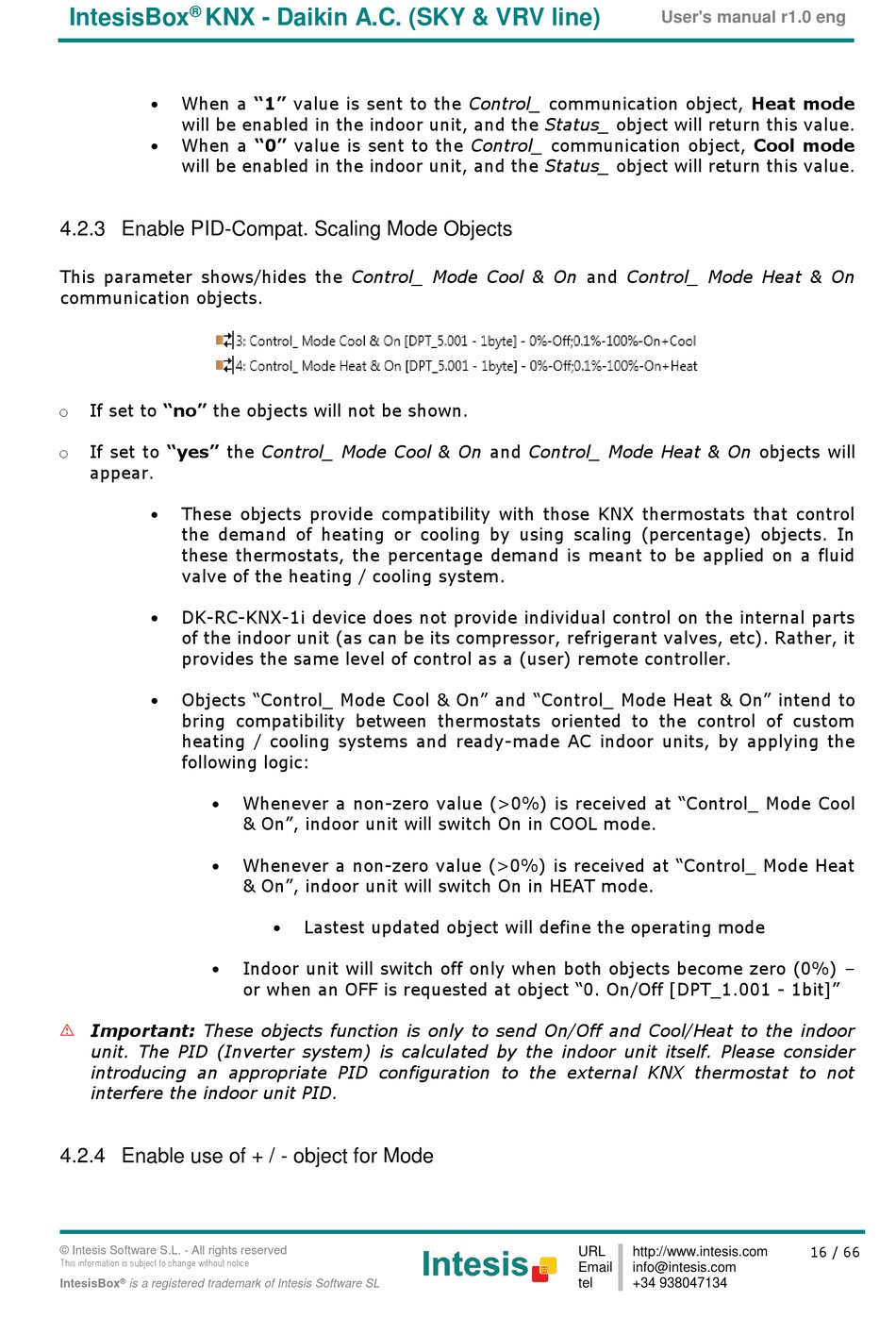

4.2.3 Enable PID-Compat. Scaling Mode Objects

This parameter shows/hides the Control_ Mode Cool & On and Control_ Mode Heat & On
communication objects.
If set to "no" the objects will not be shown.
o
If set to "yes" the Control_ Mode Cool & On and Control_ Mode Heat & On objects will
o
appear.
 These objects provide compatibility with those KNX thermostats that control
the demand of heating or cooling by using scaling (percentage) objects. In
these thermostats, the percentage demand is meant to be applied on a fluid
valve of the heating / cooling system.
 DK-RC-KNX-1i device does not provide individual control on the internal parts
of the indoor unit (as can be its compressor, refrigerant valves, etc). Rather, it
provides the same level of control as a (user) remote controller.
 Objects "Control_ Mode Cool & On" and "Control_ Mode Heat & On" intend to
bring compatibility between thermostats oriented to the control of custom
heating / cooling systems and ready-made AC indoor units, by applying the
following logic:



Important: These objects function is only to send On/Off and Cool/Heat to the indoor
unit. The PID (Inverter system) is calculated by the indoor unit itself. Please consider
introducing an appropriate PID configuration to the external KNX thermostat to not
interfere the indoor unit PID.

4.2.4 Enable use of + / - object for Mode

© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL
Whenever a non-zero value (>0%) is received at "Control_ Mode Cool
& On", indoor unit will switch On in COOL mode.
Whenever a non-zero value (>0%) is received at "Control_ Mode Heat
& On", indoor unit will switch On in HEAT mode.
 Lastest updated object will define the operating mode
Indoor unit will switch off only when both objects become zero (0%) –
or when an OFF is requested at object "0. On/Off [DPT_1.001 - 1bit]"
