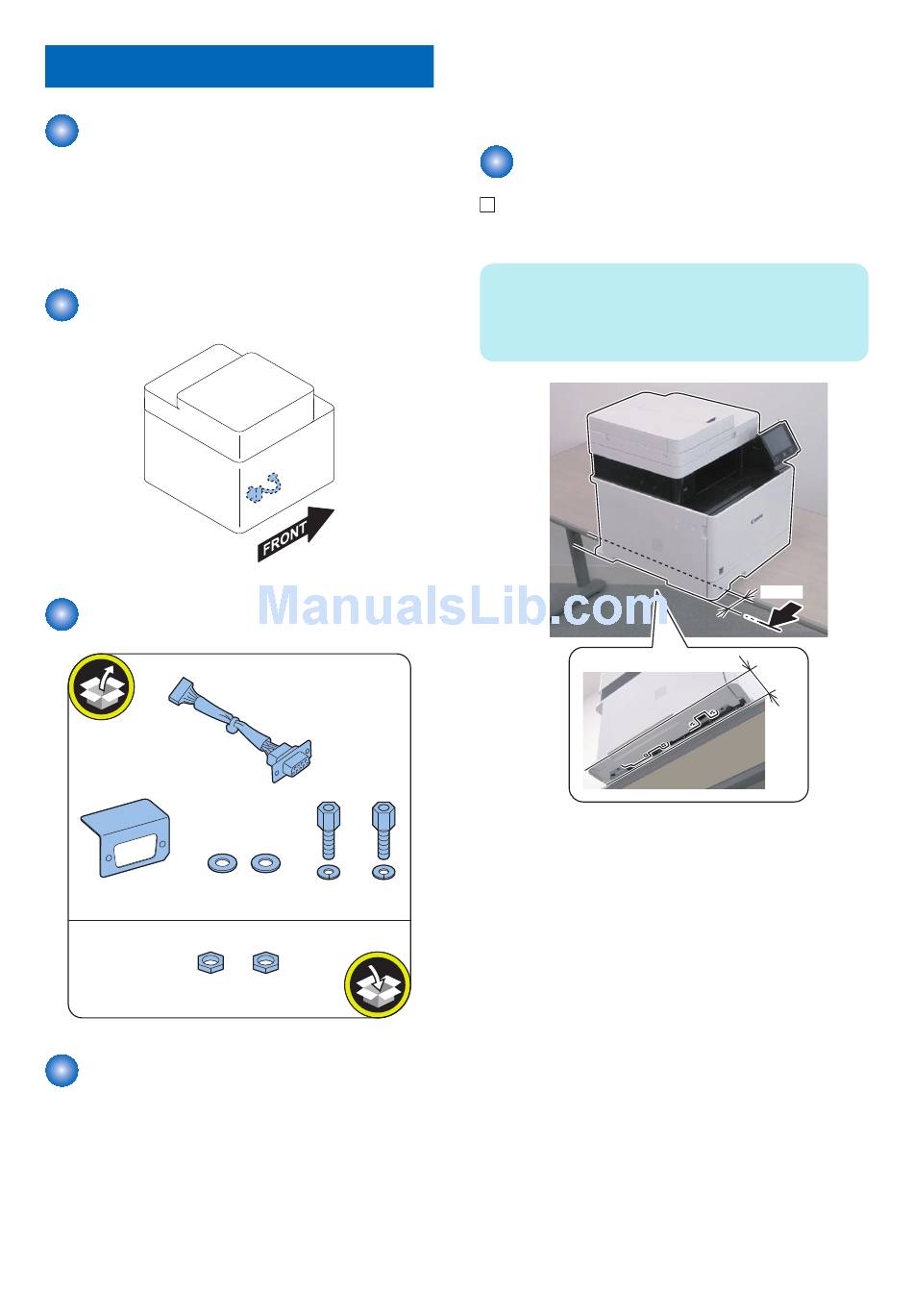

Copy Control Interface Kit-C1

Points to Note at Installation

The following options cannot be used in combination with this
equipment.
• Copy Card Reader
• MiCARD Attachment Kit + IC-Card Reader that is a sales
company's option

Installation Outline Drawing

Checking the Contents

1x
Check Item When Turning OFF
the Main Power
Check that the main power is OFF.
1. Turn OFF the main power switch.
1x
2x
2x
2x
2. Check that the display in the Control Panel and the
lamp of the main power are turned off, and then
disconnect the power plug.

Installation Procedure

1.
NOTE:
Shift the host machine by approximately 80 mm from the
working table to release the claws on the bottom of the Left
Cover.
338
10. Installation
80 mm
80 mm
