Front Panel Components With Eight-Drive Backplane (Installation)
Related Information
SPARC S7-2L Server Service Manual
■
Oracle ILOM documentation
■
"Front Panel Components With Eight-Drive Backplane (Installation)" on page 14
■
"Rear Panel Components (Installation)" on page 20
■

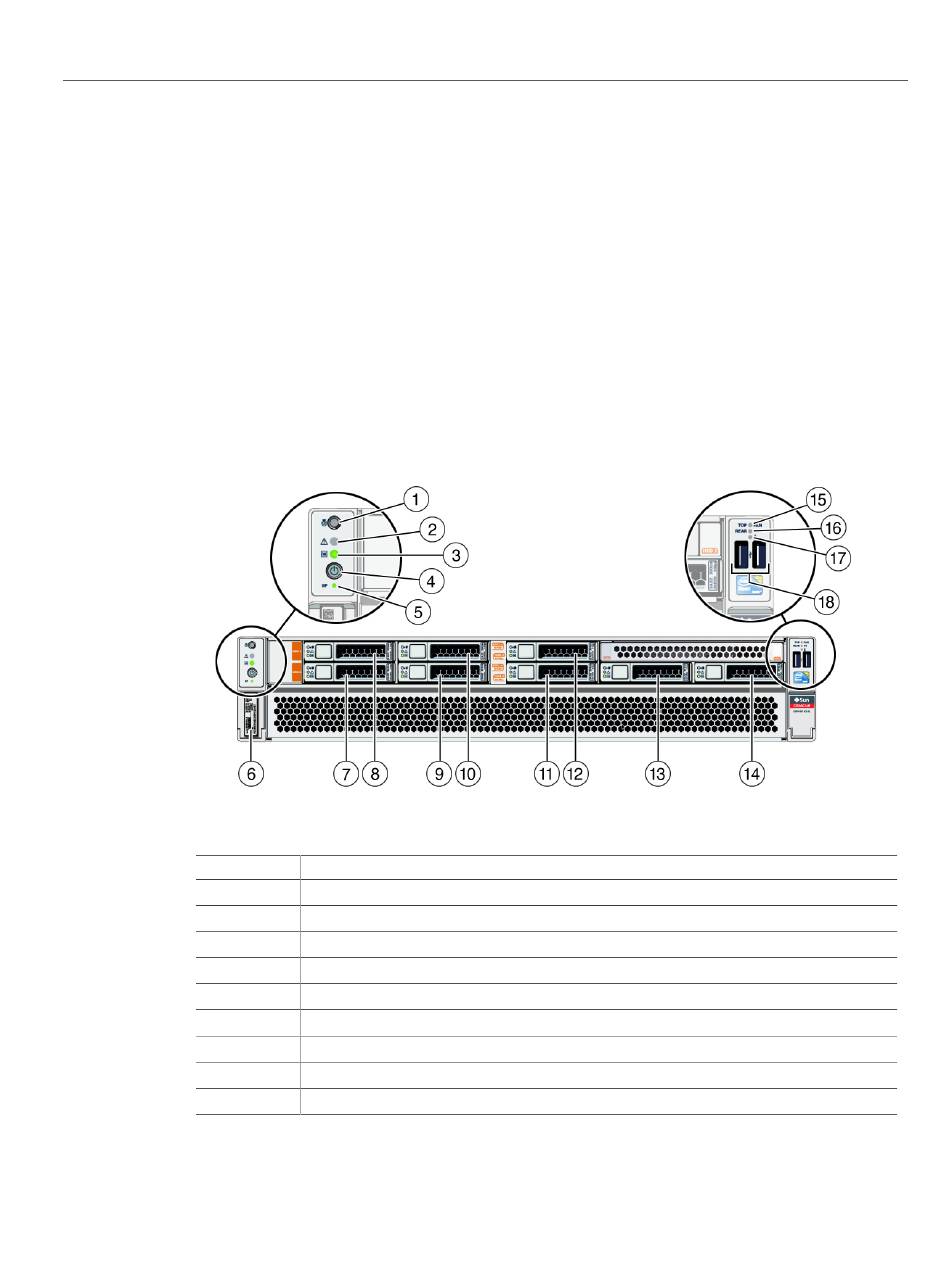

Front Panel Components With Eight-Drive Backplane
(Installation)
No.
1
2
3
4
5
6
7
8
9
14
SPARC S7-2L Server Installation Guide • June 2017
Description
Locator button / Locator LED (white)
Service Required LED (amber)
Power LED (green)
Power button
SP Power OK button (green)
Server serial number
Drive 0
Drive 1
Drive 2 (or NVMe drive 0)
