Front Panel Components (Installation)
FIGURE:
No.
Description
1
Indicators and switches, top to bottom:
Status indicators:
• Locator LED and button
• Service Required LED
• System OK LED
• Power button
• SP LED
• Rear PS LED
Telco alarm indicators:
• Critical LED
• Major LED
• Minor LED
• User LED
2
8 SAS drive slots
3
2 USB 2.0 connectors

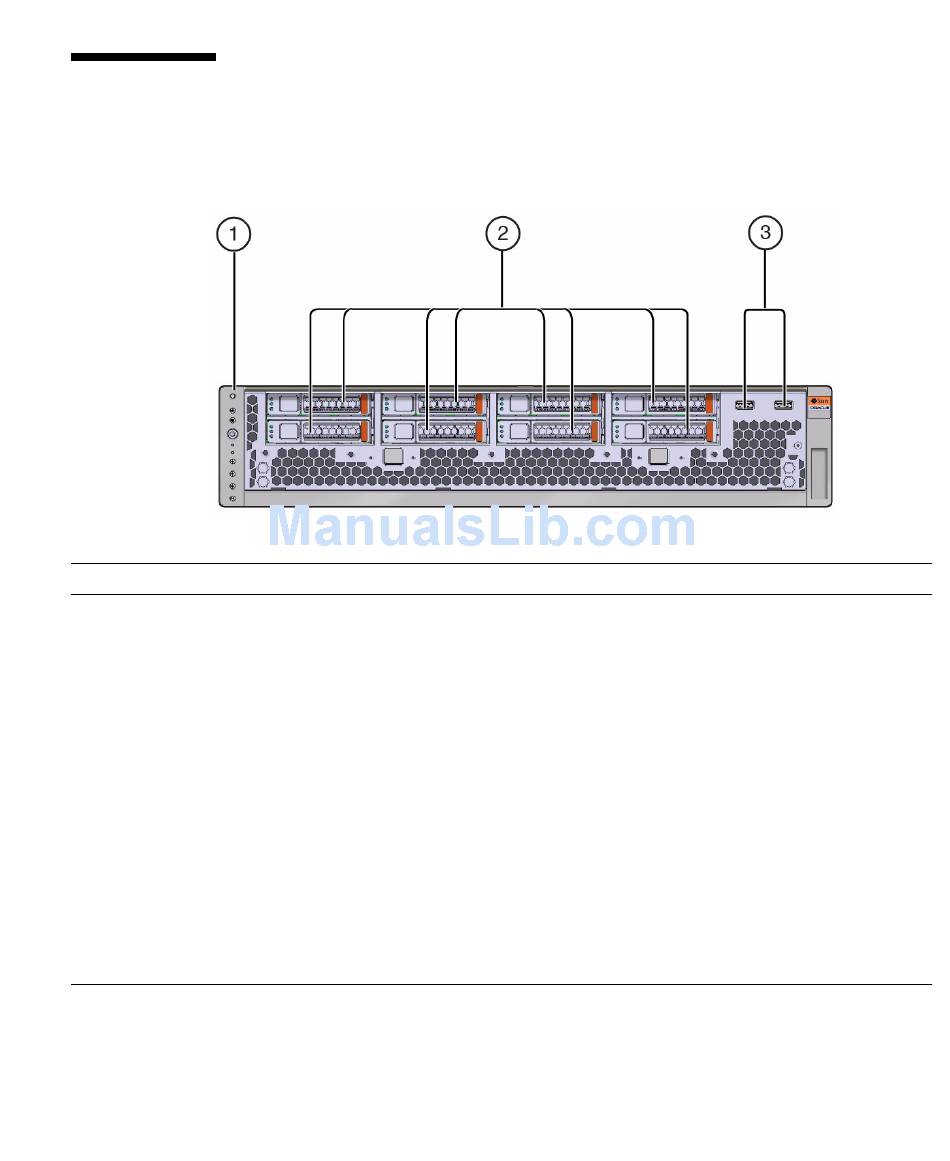

Front Panel, 8-Drive Model (Front Filter Removed)
Links
Server Service, interpreting diagnostic LEDs
Server Service, servicing drives
"USB Ports" on page 86
Understanding the Server
5
