Front Panel Components (Installation)

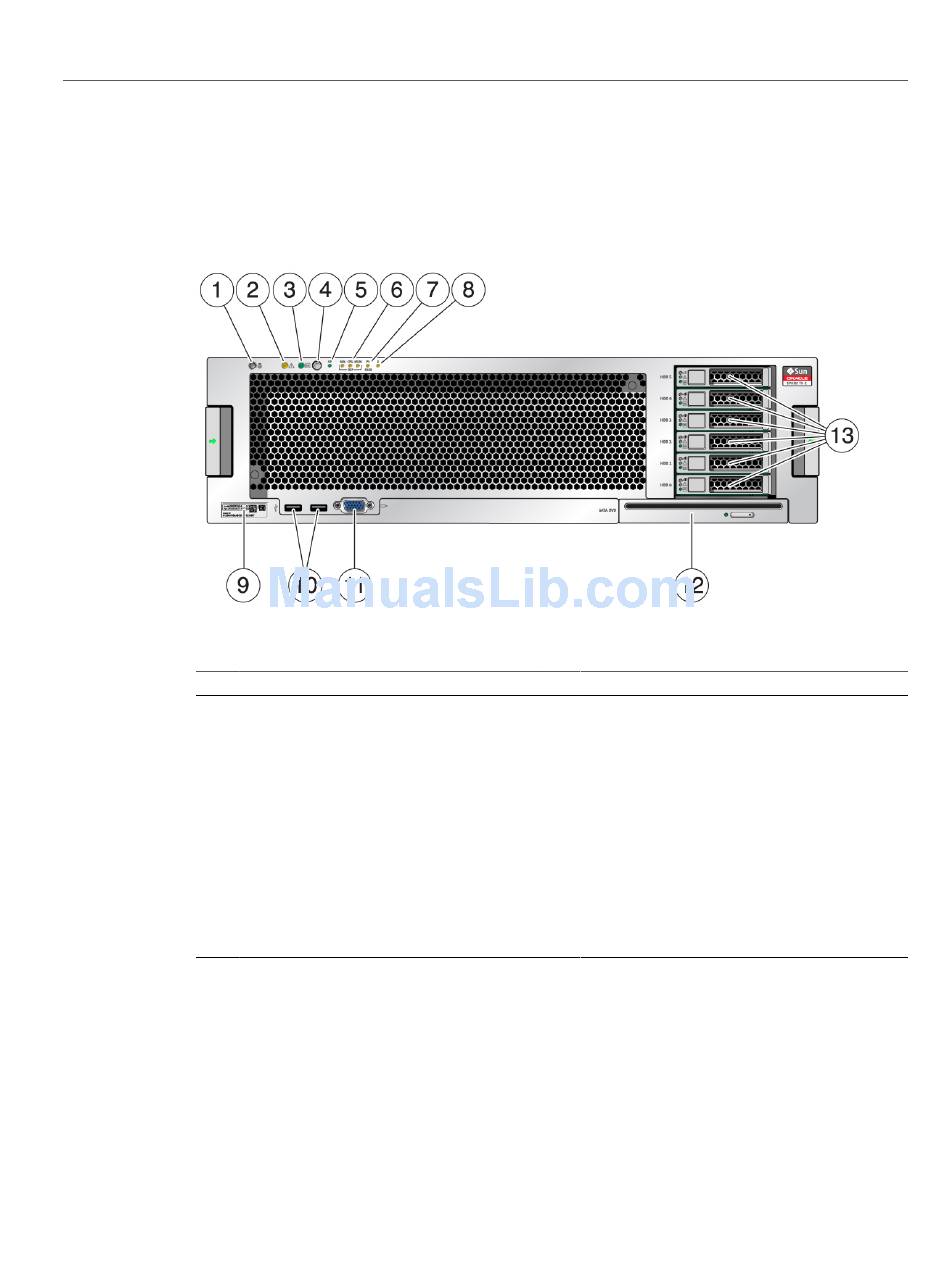

Front Panel Components (Installation)
No.
1
2
3
4
5
6
7
8
9
Related Information
"Server Overview" on page 10
■
"Rear Panel Components (Installation)" on page 13
■
"Cabling Requirements" on page 41
■
12 SPARC T7-2 Server Installation Guide • March 2016
Description
Locate LED/Locate button (white)
Service Required LED (amber)
Main Power/OK LED (green)
Power button
SP OK/Fault LED (green/amber)
Service Required LEDs (3) for Fan Module
(FAN), Processor (CPU) and Memory (amber)
Power Supply (PS) Fault (Service Required)
LED (amber)
Overtemperature LED (amber)
Serial number/RFID tag
No. Description
10 USB 2.0 connectors (2)
11 HD-15 video connector
12 SATA DVD drive
13 HDD Drive 0
14 HDD Drive 1
15 HDD Drive 2/NVMe 0
16 HDD Drive 3/NVMe 1
17 HDD Drive 4/NVMe 2
18 HDD Drive 5/NVMe 3
