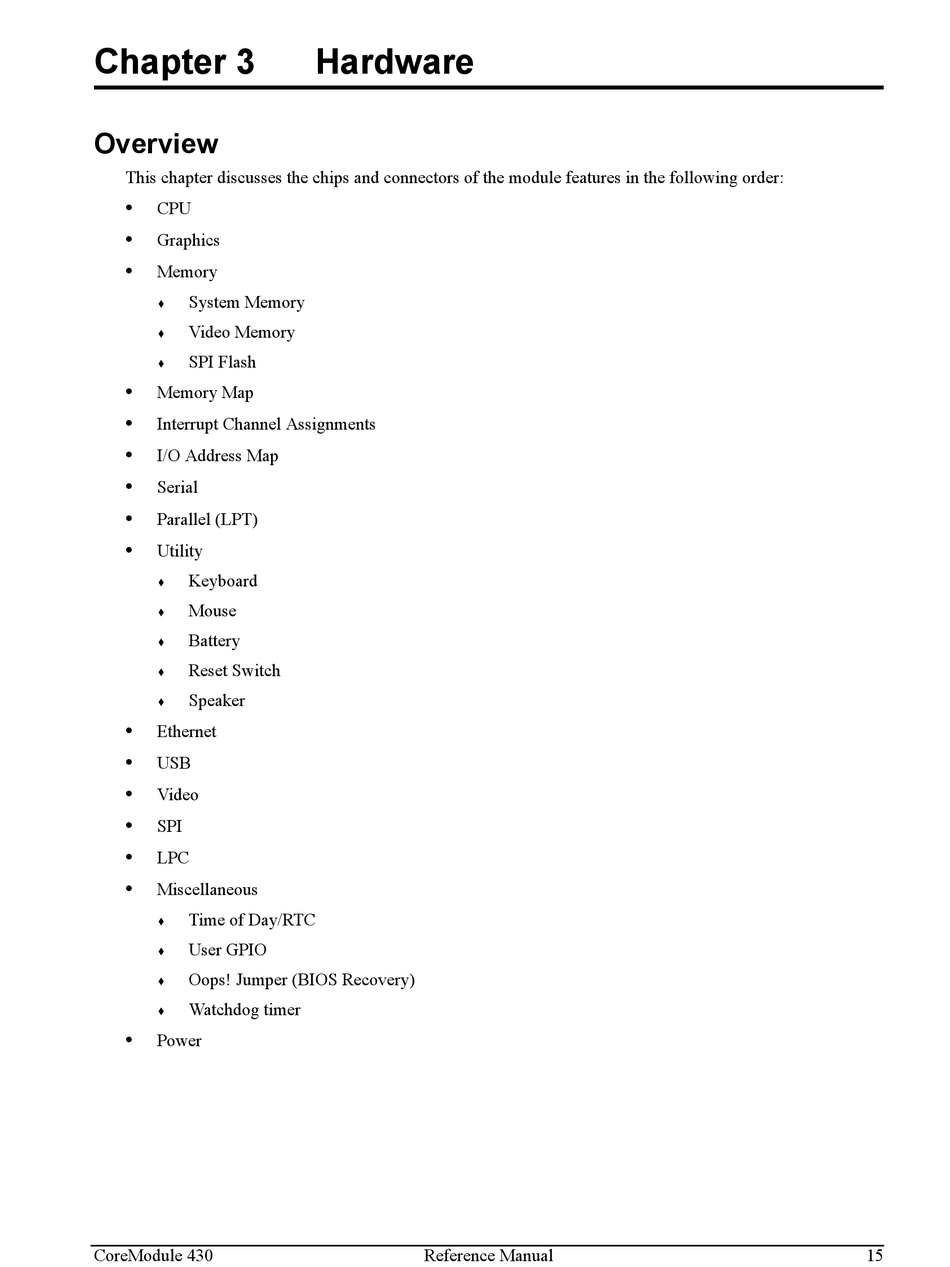

Chapter 3

Overview

This chapter discusses the chips and connectors of the module features in the following order:
CPU
Graphics
Memory
System Memory
Video Memory
SPI Flash
Memory Map
Interrupt Channel Assignments
I/O Address Map
Serial
Parallel (LPT)
Utility
Keyboard
Mouse
Battery
Reset Switch
Speaker
Ethernet
USB
Video
SPI
LPC
Miscellaneous
Time of Day/RTC
User GPIO
Oops! Jumper (BIOS Recovery)
Watchdog timer
Power
CoreModule 430
Hardware
Reference Manual
15
