Chapter 2

Header, Connector, and Socket Definitions

Table 2-2 describes the headers shown in

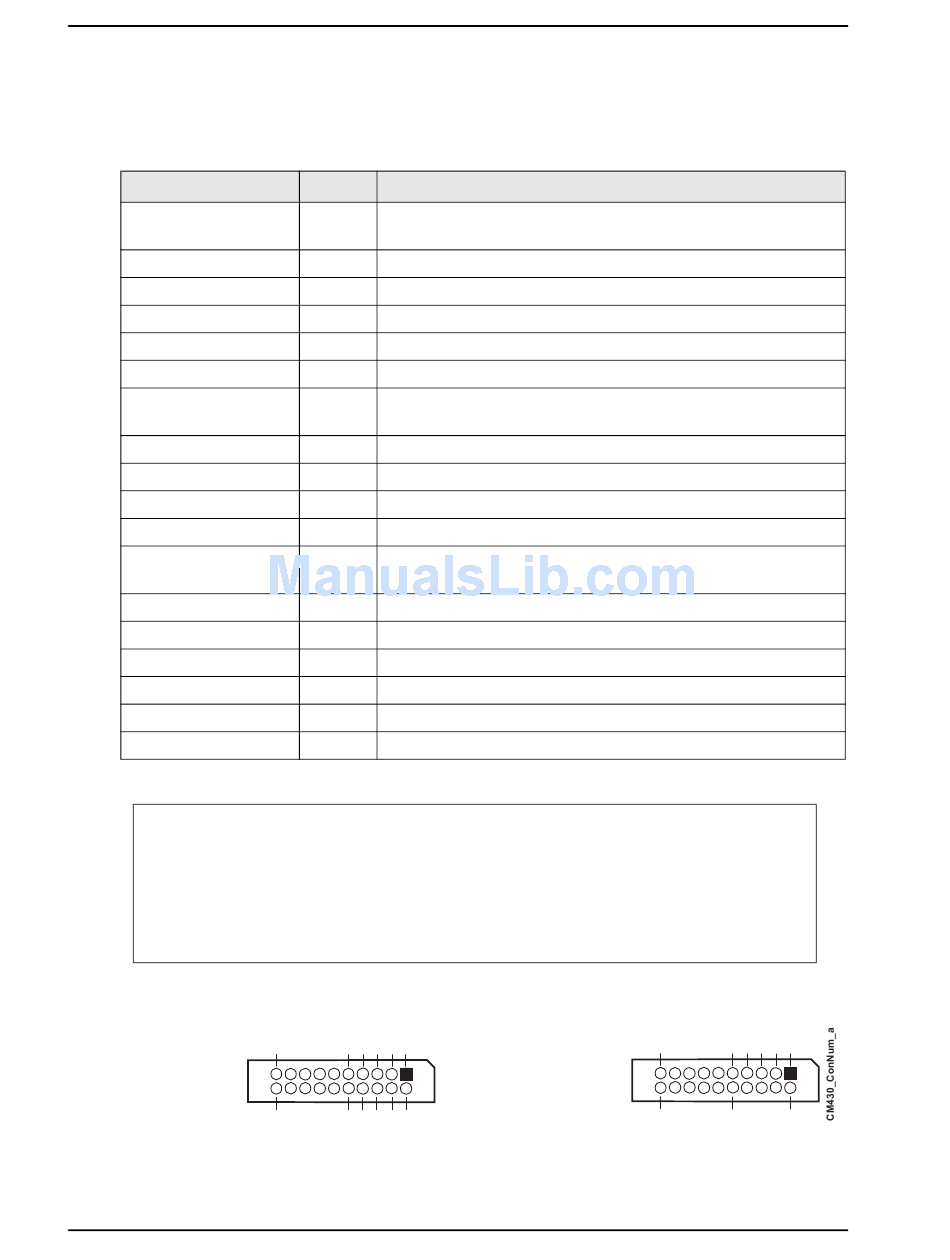

Table 2-2. Header, Connector, and Socket Descriptions

Jack/Plug #
P1A/1B & P1C/1D –
PC/104 Bus
J2 – Ethernet
J3 – Serial 1 (COM1)
J4 – Parallel (LPT)
J5 – Utility
J6 – IDE
J7 – Power
J8 – GPIO (User)
J9 – Serial 2 (COM2)
J10 – USB0
J11 – Video
J12 – Compact Flash
J13 – Serial 4 (COM4)
J14 – Serial 3 (COM3)
J15 – DNP
J17 – USB1
J19 – SPI
J20 – LPC
NOTE The pinout tables in Chapter 3 of this manual identify pin sequence using the
following methods: A 10-pin header with two rows of pins, using odd/even
numbering, where pin 2 is directly across from pin 1, is noted as 10-pin, 2 rows, odd/
even (1, 2). Alternately, a 20-pin connector using consecutive numbering, where pin
11 is directly across from pin 1, is noted in this way: 20-pin, 2 rows, consecutive (1,
11). The second number in the parenthesis is always directly across from pin 1. See
Figure
20-pin, two rows,
Odd/Even, (1, 2)
10
Figure 2-5.
Access Description
Top/ 104-pin, 0.100" (2.54mm) connectors for PC/104 (ISA) bus
Bottom
Top 8-pin, 0.100" (2.54mm), right-angle header for Ethernet interface
Top 10-pin, 0.100" (2.54mm), right-angle header for Serial 1 interface
Top 26-pin, 0.079" (2mm), right-angle header for Parallel interface
Top 10-pin, 0.100" (2.54mm), right-angle header for Utility interface
Top 44-pin, 0.079" (2mm) header for IDE interface
Top 10-pin, 0.100" (2.54mm), right-angle header for Power
connection
Top 10-pin, 0.079" (2mm) header for User defined GPIO signals
Top 10-pin, 0.100" (2.54mm), right-angle header for Serial 2 interface
Top 5-pin, 0.100" (2.54mm), right-angle header for USB0 interface
Top 44-pin, 0.079" (2mm), right-angle header for LCD/CRT interface
Bottom 50-pin, 0.050" (1.27mm) socket for Type I or II Compact Flash
cards
Top 10-pin, 0.100" (2.54mm) header for Serial 4 interface
Top 10-pin, 0.100" (2.54mm) header for Serial 3 interface
Top Do not populate
Top 5-pin, 0.079" (2mm) header for USB1 interface
Top 6-pin, 0.100" (2.54mm) header used for SPI Flash programming
Top 10-pin, 0.079" (2mm) header for LPC signals
2-4.
19 9 7 5 3 1
20 10 8 6 4 2

Figure 2-4. Connector Pin Identifications

Reference Manual
20-pin, two rows,
Or
Consecutive, (1, 11)
Product Overview
10 5 4 3 2 1
20 15 11
CoreModule 430
