System Date (day of week, mm:dd:yyyy) – This field requires the alpha-numeric entry of the day of
week, day of the month, calendar month, and all 4 digits of the year, indicating the century plus
year (Fri 10/21/2011).

BIOS Advanced Setup Screen

Main
Advanced
Advanced Settings
WARNING: Setting wrong values in below sections
may cause system to malfunction.
Board Configuration
CPU Configuration
IDE Configuration
Remote Access Configuration
USB Configuration
SB LAN
MAC Address XX XX XX XX XX XX
v02.XX (C) Copyright 1985-20XX, American Megatrends, Inc.
Board Configuration
Chip Serial Number
CPU Configuration
Manufacture:: DMP
Brand String:: Vortex A91XX
Frequency: : X00MHz
L1 Cache
Cache L1
: XX KB
L2 Cache (only on DX model)
Cache L2
: XXX KB
IDE Configuration
OnBoard PCI IDE Controller – [Disabled; Primary; Secondary; Both]
Primary IDE Master
Type – [Not Installed; Auto; CD/DVD; ARMD]
LBA/Large Mode – [Disabled; Auto]
Block (Multi-Sector Transfer – [Disabled; Auto]
36
BIOS Setup Utility
PCIPnP
Boot
Security
[Enabled]

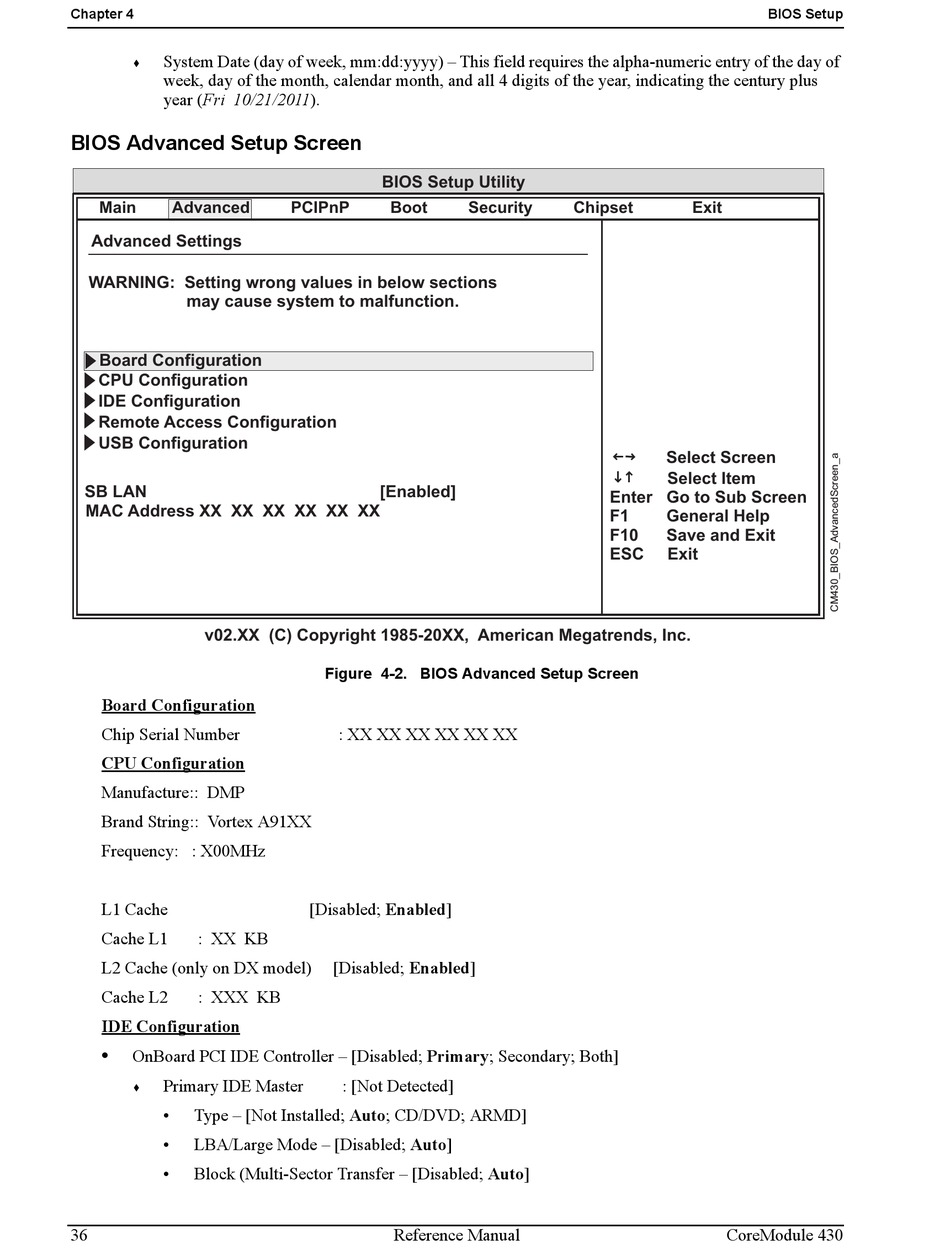

Figure 4-2. BIOS Advanced Setup Screen

: XX XX XX XX XX XX
[Disabled; Enabled]
[Disabled; Enabled]
: [Not Detected]
Reference Manual
Chipset
Exit
Select Screen
Select Item
Enter Go to Sub Screen
F1
General Help
F10
Save and Exit
ESC
Exit
CoreModule 430
BIOS Setup
