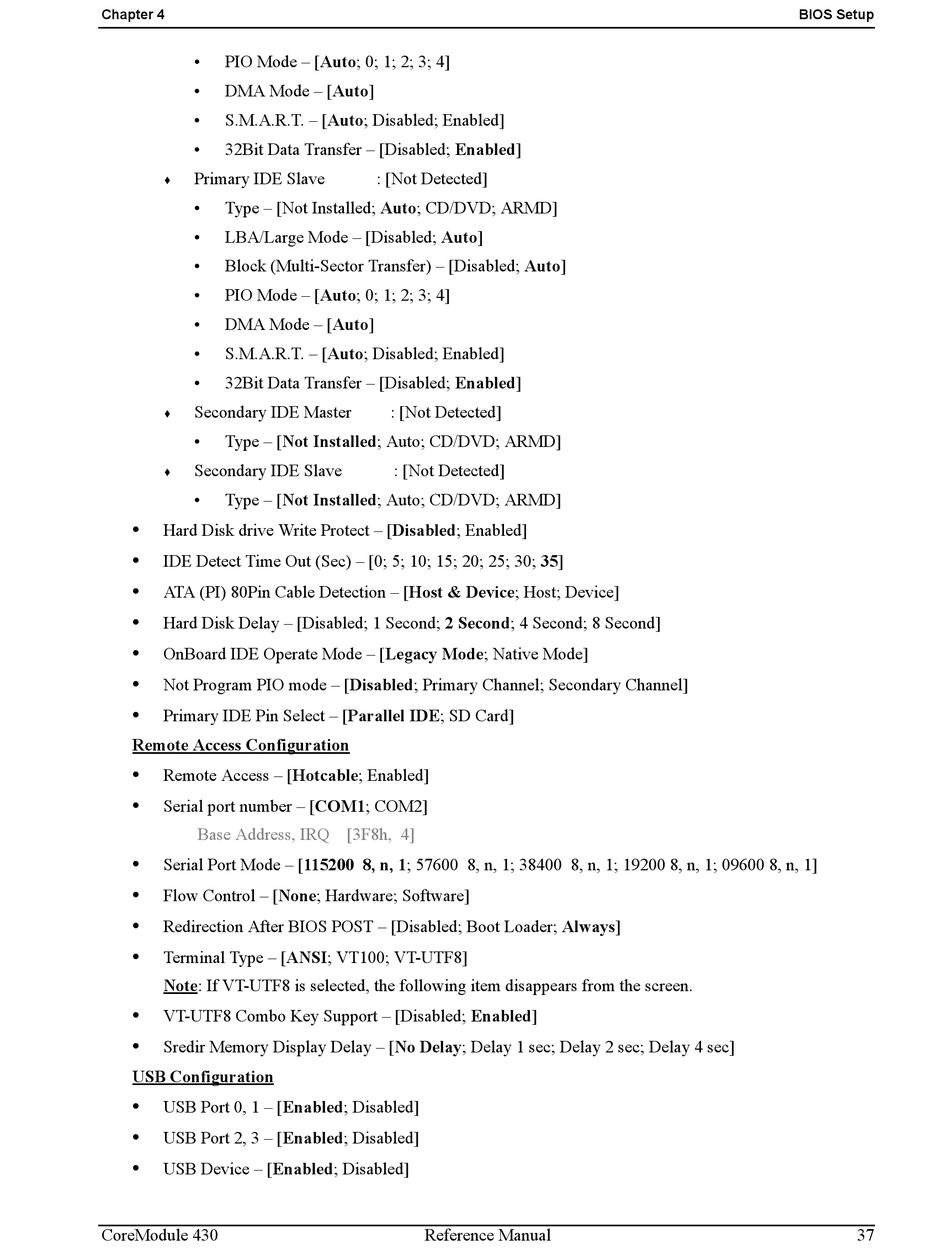

ADLINK Technology CoreModule 430 Reference Manual page 43

Pc/104 single board computer
Table of Contents

Advertisement

Chapter 4
PIO Mode – [Auto; 0; 1; 2; 3; 4]
DMA Mode – [Auto]
S.M.A.R.T. – [Auto; Disabled; Enabled]
32Bit Data Transfer – [Disabled; Enabled]
Primary IDE Slave
Type – [Not Installed; Auto; CD/DVD; ARMD]
LBA/Large Mode – [Disabled; Auto]
Block (Multi-Sector Transfer) – [Disabled; Auto]
PIO Mode – [Auto; 0; 1; 2; 3; 4]
DMA Mode – [Auto]
S.M.A.R.T. – [Auto; Disabled; Enabled]
32Bit Data Transfer – [Disabled; Enabled]
Secondary IDE Master
Type – [Not Installed; Auto; CD/DVD; ARMD]
Secondary IDE Slave
Type – [Not Installed; Auto; CD/DVD; ARMD]
Hard Disk drive Write Protect – [Disabled; Enabled]
IDE Detect Time Out (Sec) – [0; 5; 10; 15; 20; 25; 30; 35]
ATA (PI) 80Pin Cable Detection – [Host & Device; Host; Device]
Hard Disk Delay – [Disabled; 1 Second; 2 Second; 4 Second; 8 Second]
OnBoard IDE Operate Mode – [Legacy Mode; Native Mode]
Not Program PIO mode – [Disabled; Primary Channel; Secondary Channel]
Primary IDE Pin Select – [Parallel IDE; SD Card]
Remote Access Configuration
Remote Access – [Hotcable; Enabled]
Serial port number – [COM1; COM2]
Base Address, IRQ [3F8h, 4]
Serial Port Mode – [115200 8, n, 1; 57600 8, n, 1; 38400 8, n, 1; 19200 8, n, 1; 09600 8, n, 1]
Flow Control – [None; Hardware; Software]
Redirection After BIOS POST – [Disabled; Boot Loader; Always]
Terminal Type – [ANSI; VT100; VT-UTF8]
Note: If VT-UTF8 is selected, the following item disappears from the screen.
VT-UTF8 Combo Key Support – [Disabled; Enabled]
Sredir Memory Display Delay – [No Delay; Delay 1 sec; Delay 2 sec; Delay 4 sec]
USB Configuration
USB Port 0, 1 – [Enabled; Disabled]
USB Port 2, 3 – [Enabled; Disabled]
USB Device – [Enabled; Disabled]
CoreModule 430
: [Not Detected]
: [Not Detected]
: [Not Detected]
Reference Manual
BIOS Setup
37
