Chapter 4

BIOS Setup Screens

This section provides illustrations of the seven main setup screens in the CoreModule 430 BIOS Setup
Utility. Below each illustration is a bullet list of the screen's submenus and setting selections. The setting
selections are presented in brackets after each submenu or menu item and the optimal default settings are
presented in bold. For more detailed definitions of the BIOS settings, refer to the AMIBIOS8 manual:
http://www.ami.com/support/doc/MAN-EZP-80.pdf
Table 4-1. BIOS Setup Menus
BIOS Setup Utility Menu
Main Settings
Advanced Settings
PCIPnP (PCI, Plug n' Play)
Boot
Security
Chipset
Exit

BIOS Main Setup Screen

Main
Advanced
System Overview
AMIBIOS
Version
: 08.XX.XX
Build Date: XX/XX/XX
ID
: SWXXXXXX_X
Processor
Vortex A91XX
Speed
:XXX MHz
System Memory
Size
:XXXMB
Speed
:XXXMHz
System Time
System Date
v02.XX (C) Copyright 1985-20XX, American Megatrends, Inc.
Date & Time
System Time (hh:mm:ss) – This is a 24-hour clock setting in hours, minutes, and seconds.
CoreModule 430
Item/Topic
Date and Time
CPU settings, IDE Drive Configurations, Remote Access (Serial
Console), USB Configuration, and Southbridge LAN
PCI settings, Plug & Play settings, Interrupt settings and DMA channel
settings, Reserved memory size
Boot-up Settings
Setting or changing Passwords, Boot Sector Virus Protection
Northbridge and Southbridge settings
Exiting with or without changing settings, Loading Optimal or Failsafe
conditions
BIOS Setup Utility
PCIPnP
Boot
Security
[XX:XX:XX]
[Xxx XX/XX/20XX]

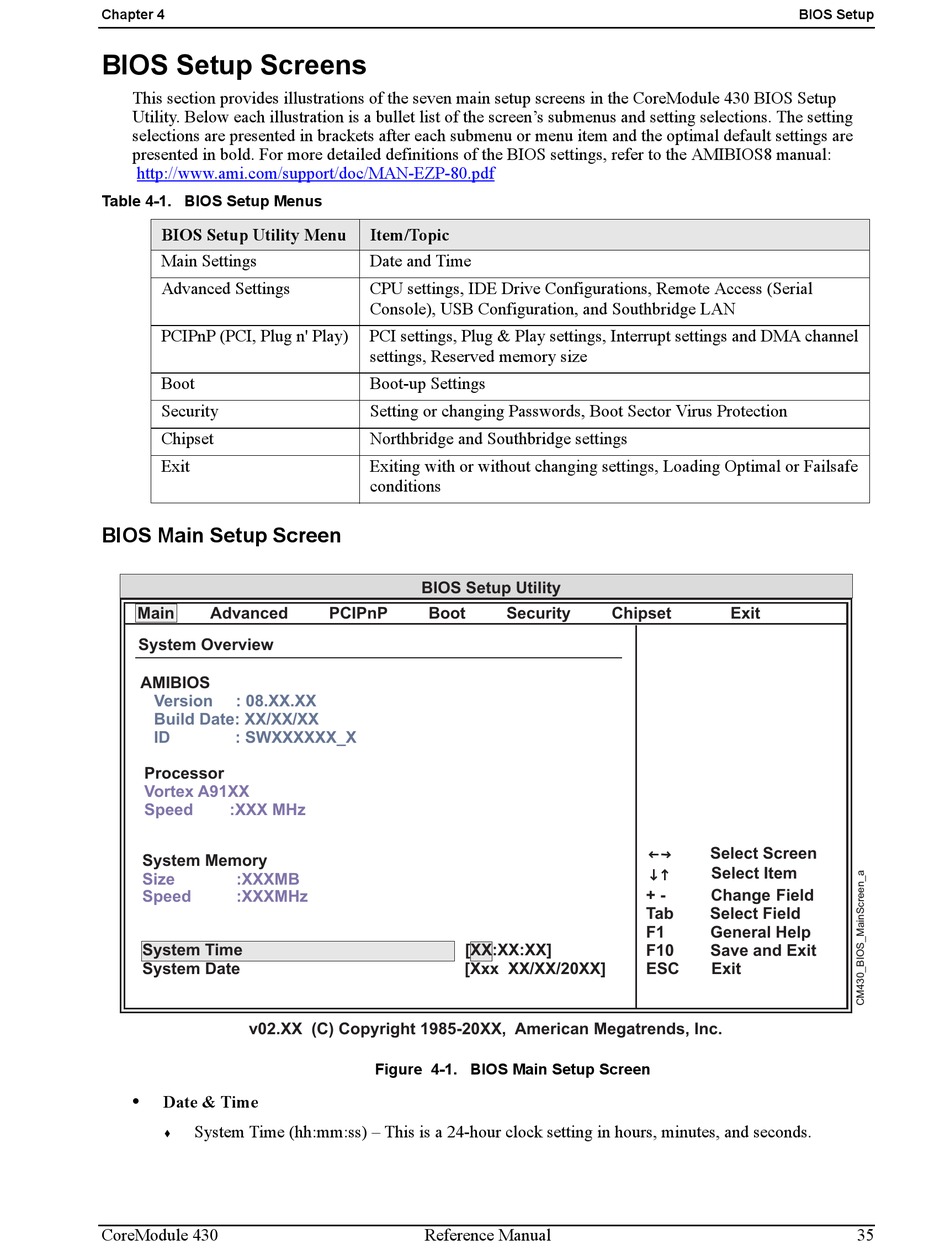

Figure 4-1. BIOS Main Setup Screen

Reference Manual
Chipset
Exit
Select Screen
Select Item
+ -
Change
Field
Tab
Select Field
F1
General Help
F10
Save and Exit
ESC
Exit
BIOS Setup
35
