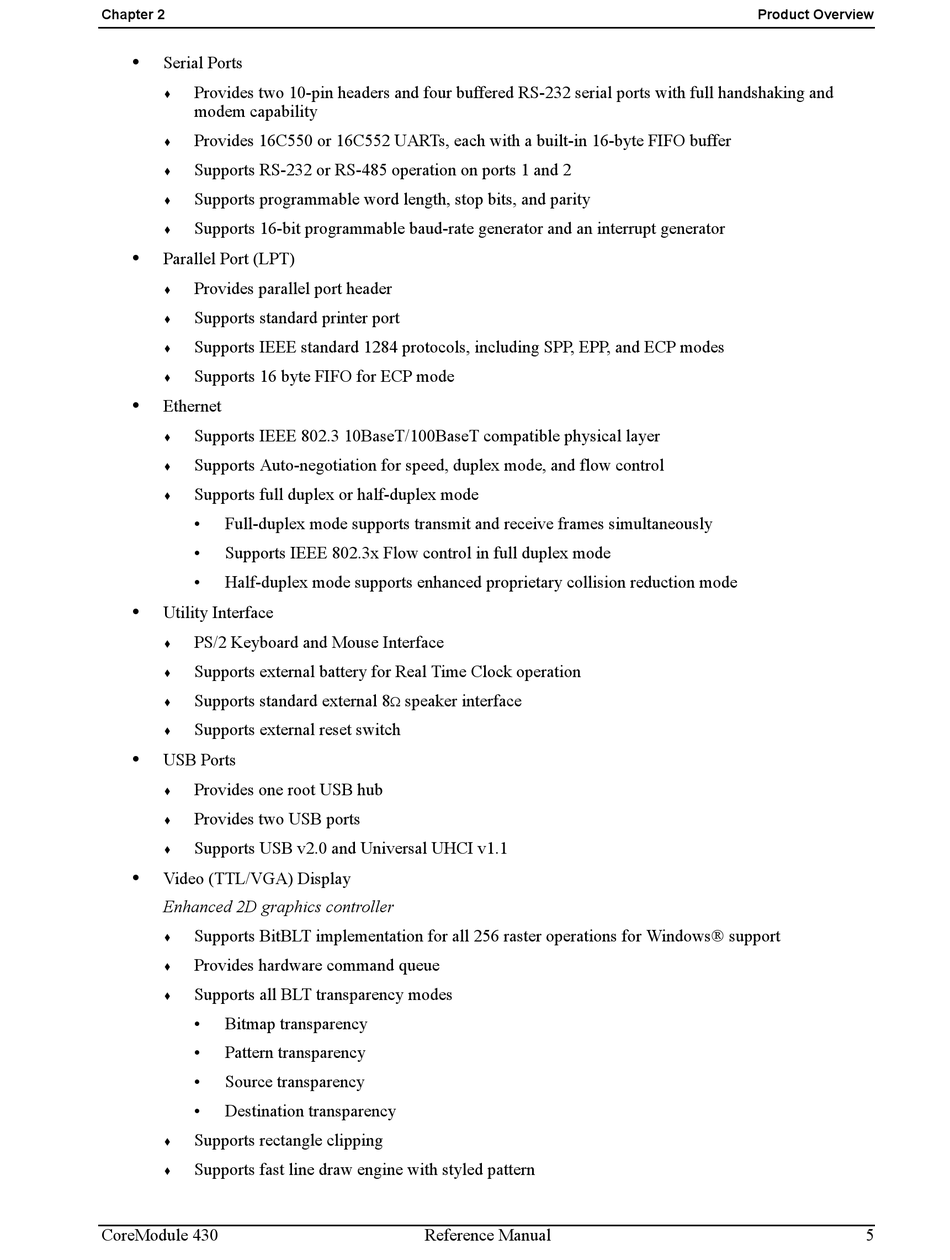

ADLINK Technology CoreModule 430 Reference Manual page 11

Pc/104 single board computer
Table of Contents

Advertisement

Chapter 2
Serial Ports
Provides two 10-pin headers and four buffered RS-232 serial ports with full handshaking and
modem capability
Provides 16C550 or 16C552 UARTs, each with a built-in 16-byte FIFO buffer
Supports RS-232 or RS-485 operation on ports 1 and 2
Supports programmable word length, stop bits, and parity
Supports 16-bit programmable baud-rate generator and an interrupt generator
Parallel Port (LPT)
Provides parallel port header
Supports standard printer port
Supports IEEE standard 1284 protocols, including SPP, EPP, and ECP modes
Supports 16 byte FIFO for ECP mode
Ethernet
Supports IEEE 802.3 10BaseT/100BaseT compatible physical layer
Supports Auto-negotiation for speed, duplex mode, and flow control
Supports full duplex or half-duplex mode
Full-duplex mode supports transmit and receive frames simultaneously
Supports IEEE 802.3x Flow control in full duplex mode
Half-duplex mode supports enhanced proprietary collision reduction mode
Utility Interface
PS/2 Keyboard and Mouse Interface
Supports external battery for Real Time Clock operation
Supports standard external 8
Supports external reset switch
USB Ports
Provides one root USB hub
Provides two USB ports
Supports USB v2.0 and Universal UHCI v1.1
Video (TTL/VGA) Display
Enhanced 2D graphics controller
Supports BitBLT implementation for all 256 raster operations for Windows support
Provides hardware command queue
Supports all BLT transparency modes
Bitmap transparency
Pattern transparency
Source transparency
Destination transparency
Supports rectangle clipping
Supports fast line draw engine with styled pattern
CoreModule 430
speaker interface
Reference Manual
