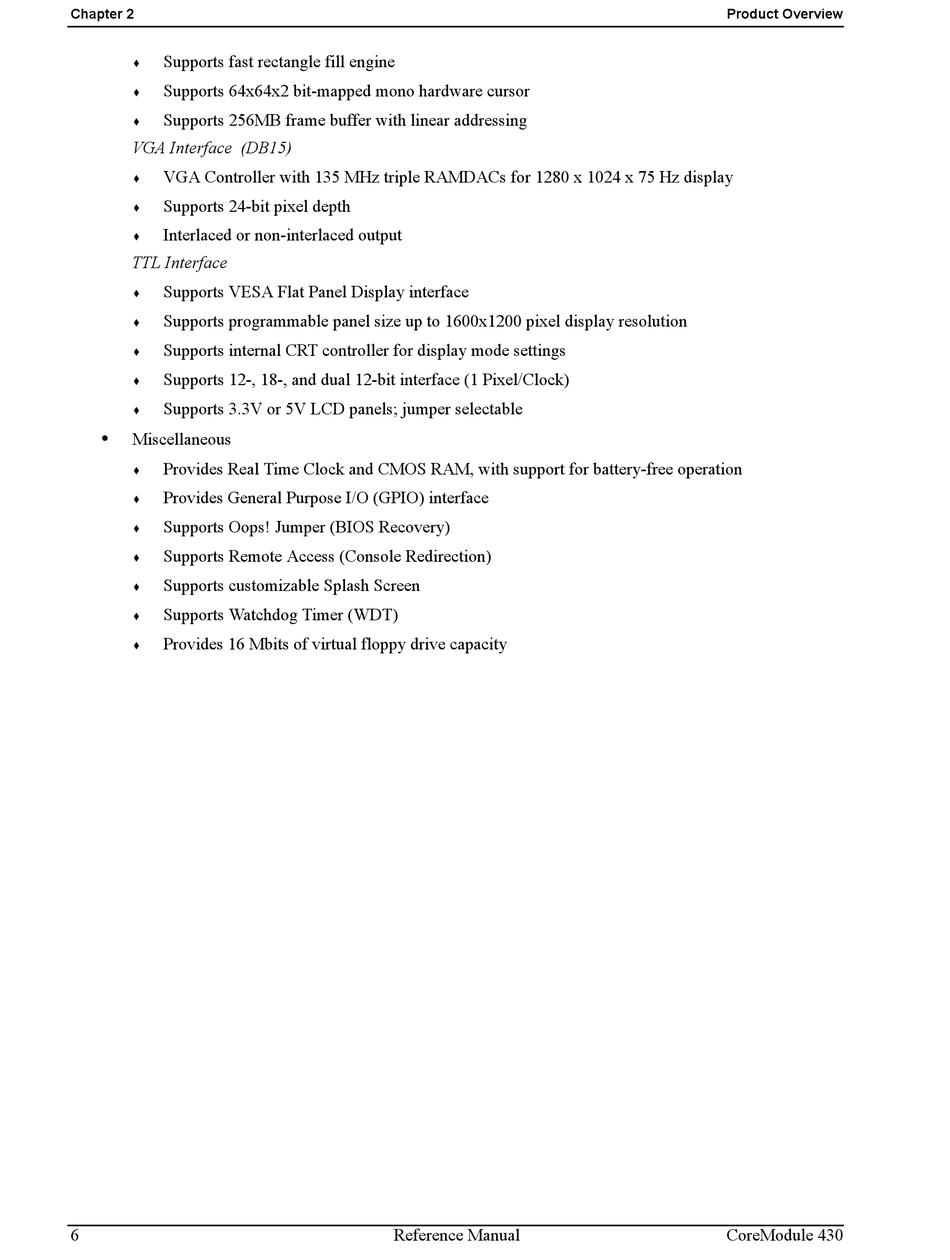

ADLINK Technology CoreModule 430 Reference Manual page 12

Chapter 2
Supports fast rectangle fill engine

Supports 64x64x2 bit-mapped mono hardware cursor

Supports 256MB frame buffer with linear addressing

VGA Interface (DB15)
VGA Controller with 135 MHz triple RAMDACs for 1280 x 1024 x 75 Hz display

Supports 24-bit pixel depth

Interlaced or non-interlaced output

TTL Interface
Supports VESA Flat Panel Display interface

Supports programmable panel size up to 1600x1200 pixel display resolution

Supports internal CRT controller for display mode settings

Supports 12-, 18-, and dual 12-bit interface (1 Pixel/Clock)

Supports 3.3V or 5V LCD panels; jumper selectable

•
Miscellaneous
Provides Real Time Clock and CMOS RAM, with support for battery-free operation

Provides General Purpose I/O (GPIO) interface

Supports Oops! Jumper (BIOS Recovery)

Supports Remote Access (Console Redirection)

Supports customizable Splash Screen

Supports Watchdog Timer (WDT)

Provides 16 Mbits of virtual floppy drive capacity

