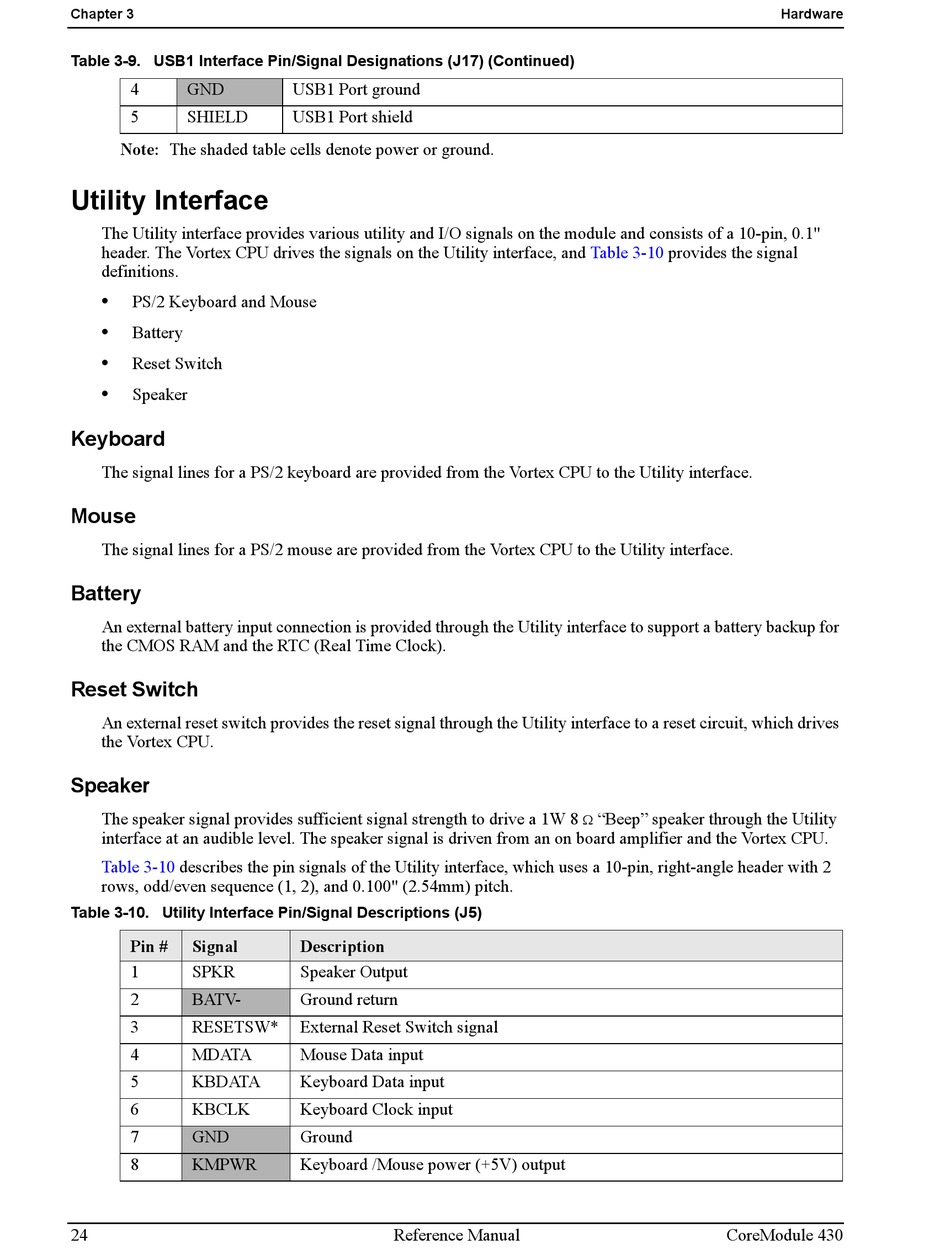

Chapter 3
Table 3-9. USB1 Interface Pin/Signal Designations (J17) (Continued)
4 GND
5 SHIELD
Note: The shaded table cells denote power or ground.

Utility Interface

The Utility interface provides various utility and I/O signals on the module and consists of a 10-pin, 0.1"
header. The Vortex CPU drives the signals on the Utility interface, and
definitions.
•
PS/2 Keyboard and Mouse
•

Battery

•

Reset Switch

•

Speaker

Keyboard

The signal lines for a PS/2 keyboard are provided from the Vortex CPU to the Utility interface.

Mouse

The signal lines for a PS/2 mouse are provided from the Vortex CPU to the Utility interface.
Battery
An external battery input connection is provided through the Utility interface to support a battery backup for
the CMOS RAM and the RTC (Real Time Clock).
Reset Switch
An external reset switch provides the reset signal through the Utility interface to a reset circuit, which drives
the Vortex CPU.
Speaker
The speaker signal provides sufficient signal strength to drive a 1W 8
interface at an audible level. The speaker signal is driven from an on board amplifier and the Vortex CPU.
Table 3-10 describes the pin signals of the Utility interface, which uses a 10-pin, right-angle header with 2
rows, odd/even sequence (1, 2), and 0.100" (2.54mm) pitch.
Table 3-10. Utility Interface Pin/Signal Descriptions (J5)
Pin # Signal
1 SPKR
2 BATV-
3 RESETSW*
4 MDATA
5 KBDATA
6 KBCLK
7 GND
8 KMPWR
24
USB1 Port ground
USB1 Port shield
Description
Speaker Output
Ground return
External Reset Switch signal
Mouse Data input
Keyboard Data input
Keyboard Clock input
Ground
Keyboard /Mouse power (+5V) output
Reference Manual
Table 3-10 provides the signal
"Beep" speaker through the Utility

CoreModule 430
Hardware
