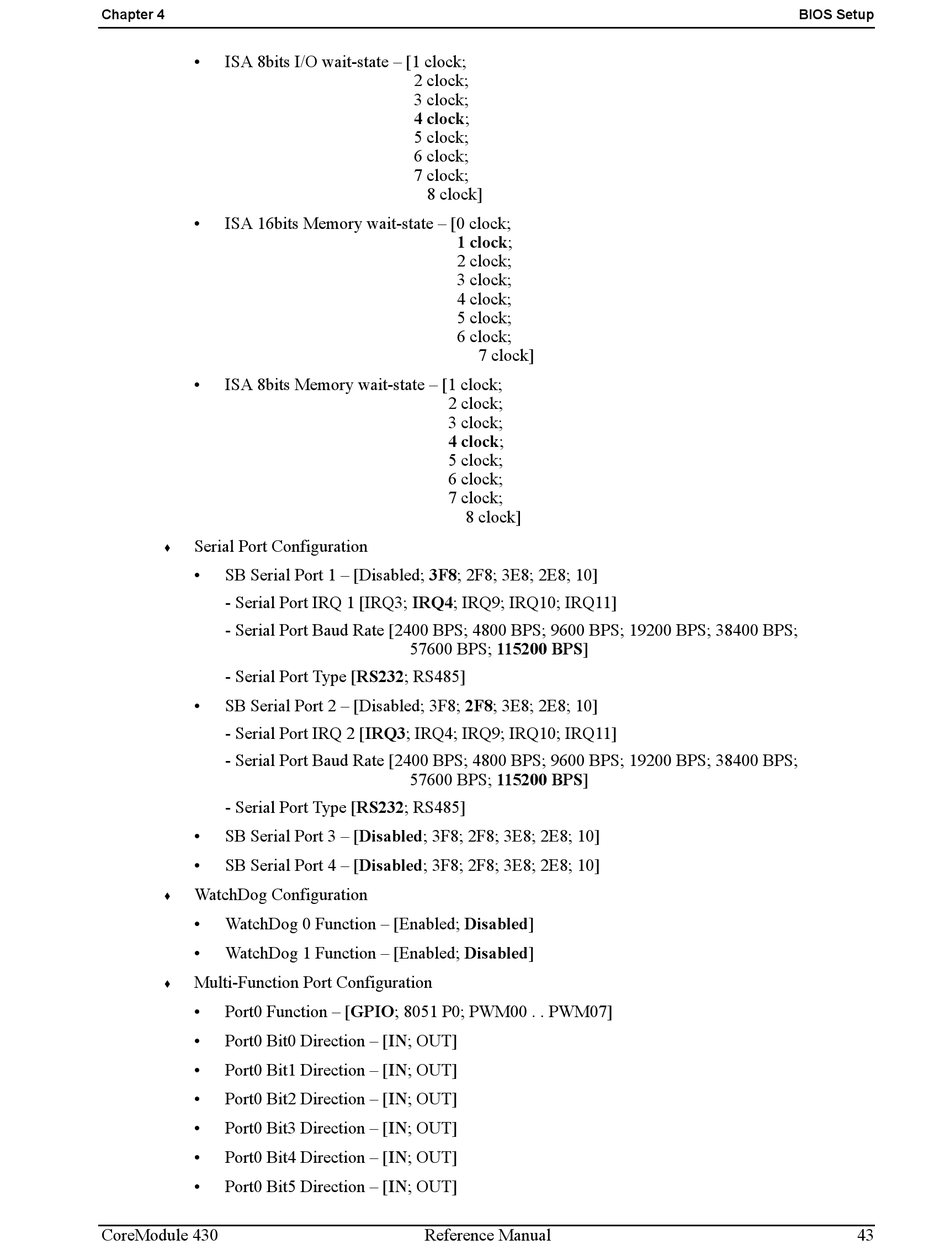

ADLINK Technology CoreModule 430 Reference Manual page 49

Pc/104 single board computer
Table of Contents

Advertisement

Chapter 4
ISA 8bits I/O wait-state – [1 clock;
ISA 16bits Memory wait-state – [0 clock;
ISA 8bits Memory wait-state – [1 clock;
Serial Port Configuration
SB Serial Port 1 – [Disabled; 3F8; 2F8; 3E8; 2E8; 10]
- Serial Port IRQ 1 [IRQ3; IRQ4; IRQ9; IRQ10; IRQ11]
- Serial Port Baud Rate [2400 BPS; 4800 BPS; 9600 BPS; 19200 BPS; 38400 BPS;
- Serial Port Type [RS232; RS485]
SB Serial Port 2 – [Disabled; 3F8; 2F8; 3E8; 2E8; 10]
- Serial Port IRQ 2 [IRQ3; IRQ4; IRQ9; IRQ10; IRQ11]
- Serial Port Baud Rate [2400 BPS; 4800 BPS; 9600 BPS; 19200 BPS; 38400 BPS;
- Serial Port Type [RS232; RS485]
SB Serial Port 3 – [Disabled; 3F8; 2F8; 3E8; 2E8; 10]
SB Serial Port 4 – [Disabled; 3F8; 2F8; 3E8; 2E8; 10]
WatchDog Configuration
WatchDog 0 Function – [Enabled; Disabled]
WatchDog 1 Function – [Enabled; Disabled]
Multi-Function Port Configuration
Port0 Function – [GPIO; 8051 P0; PWM00 . . PWM07]
Port0 Bit0 Direction – [IN; OUT]
Port0 Bit1 Direction – [IN; OUT]
Port0 Bit2 Direction – [IN; OUT]
Port0 Bit3 Direction – [IN; OUT]
Port0 Bit4 Direction – [IN; OUT]
Port0 Bit5 Direction – [IN; OUT]
CoreModule 430
2 clock;
3 clock;
4 clock;
5 clock;
6 clock;
7 clock;
8 clock]
1 clock;
2 clock;
3 clock;
4 clock;
5 clock;
6 clock;
7 clock]
2 clock;
3 clock;
4 clock;
5 clock;
6 clock;
7 clock;
8 clock]
57600 BPS; 115200 BPS]
57600 BPS; 115200 BPS]
Reference Manual
BIOS Setup
43
