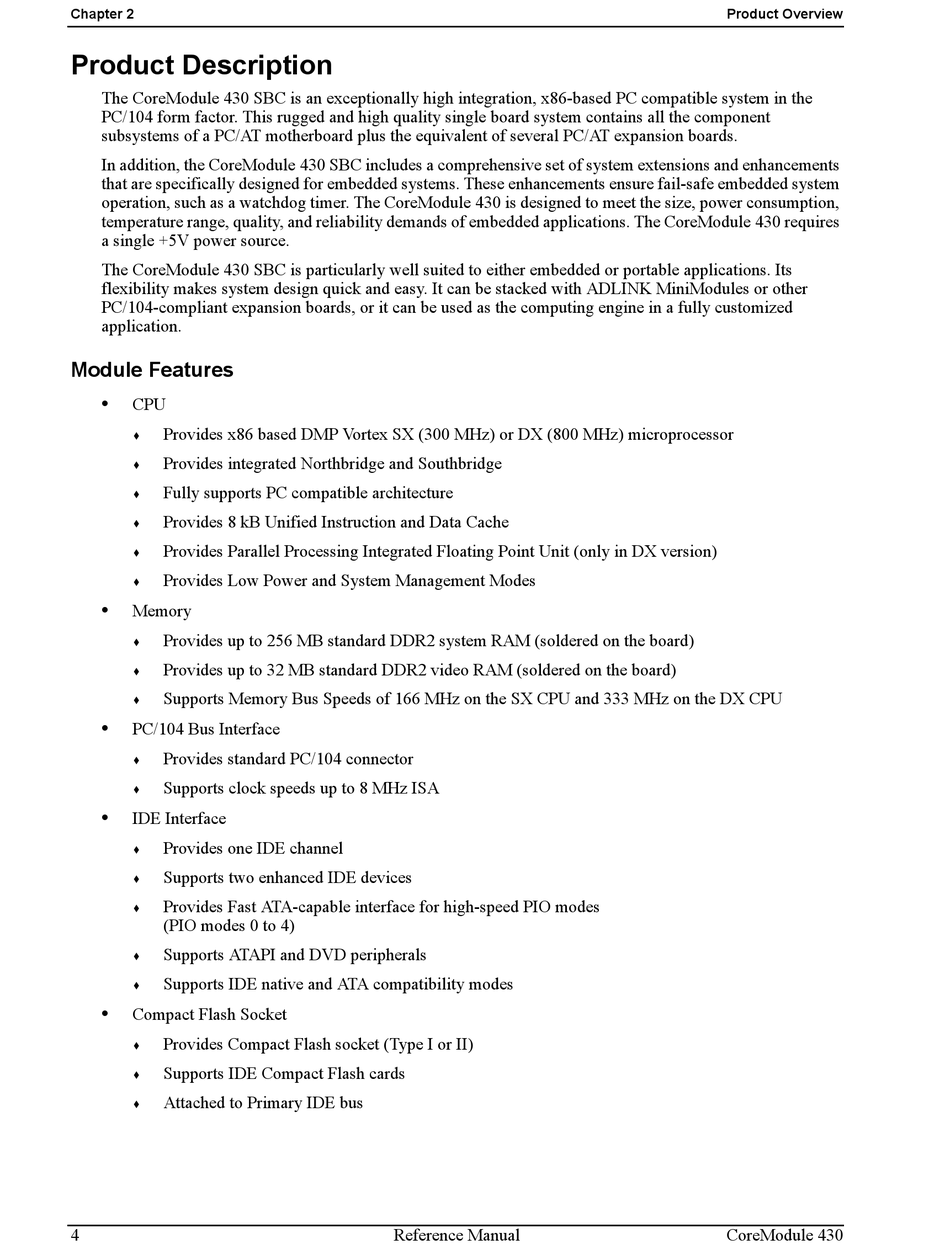

Chapter 2

Product Description

The CoreModule 430 SBC is an exceptionally high integration, x86-based PC compatible system in the
PC/104 form factor. This rugged and high quality single board system contains all the component
subsystems of a PC/AT motherboard plus the equivalent of several PC/AT expansion boards.
In addition, the CoreModule 430 SBC includes a comprehensive set of system extensions and enhancements
that are specifically designed for embedded systems. These enhancements ensure fail-safe embedded system
operation, such as a watchdog timer. The CoreModule 430 is designed to meet the size, power consumption,
temperature range, quality, and reliability demands of embedded applications. The CoreModule 430 requires
a single +5V power source.
The CoreModule 430 SBC is particularly well suited to either embedded or portable applications. Its
flexibility makes system design quick and easy. It can be stacked with ADLINK MiniModules or other
PC/104-compliant expansion boards, or it can be used as the computing engine in a fully customized
application.

Module Features

CPU
Provides x86 based DMP Vortex SX (300 MHz) or DX (800 MHz) microprocessor
Provides integrated Northbridge and Southbridge
Fully supports PC compatible architecture
Provides 8 kB Unified Instruction and Data Cache
Provides Parallel Processing Integrated Floating Point Unit (only in DX version)
Provides Low Power and System Management Modes
Memory
Provides up to 256 MB standard DDR2 system RAM (soldered on the board)
Provides up to 32 MB standard DDR2 video RAM (soldered on the board)
Supports Memory Bus Speeds of 166 MHz on the SX CPU and 333 MHz on the DX CPU
PC/104 Bus Interface
Provides standard PC/104 connector
Supports clock speeds up to 8 MHz ISA
IDE Interface
Provides one IDE channel
Supports two enhanced IDE devices
Provides Fast ATA-capable interface for high-speed PIO modes
(PIO modes 0 to 4)
Supports ATAPI and DVD peripherals
Supports IDE native and ATA compatibility modes
Compact Flash Socket
Provides Compact Flash socket (Type I or II)
Supports IDE Compact Flash cards
Attached to Primary IDE bus
4
Reference Manual
Product Overview
CoreModule 430
