Chapter 2

Specifications

Physical Specifications

Table 2-4
shows the physical dimensions of the module and

Table 2-4. Weight and Footprint Dimensions

Item
Weight
Height (upper surface)
Width
Length

Mechanical Specifications

12
Dimension
0.10 kg. (0.20 lbs.)
10.99mm (0.43")
See Note on
page
13.
90.2mm (3.6")
95.9mm (3.8")

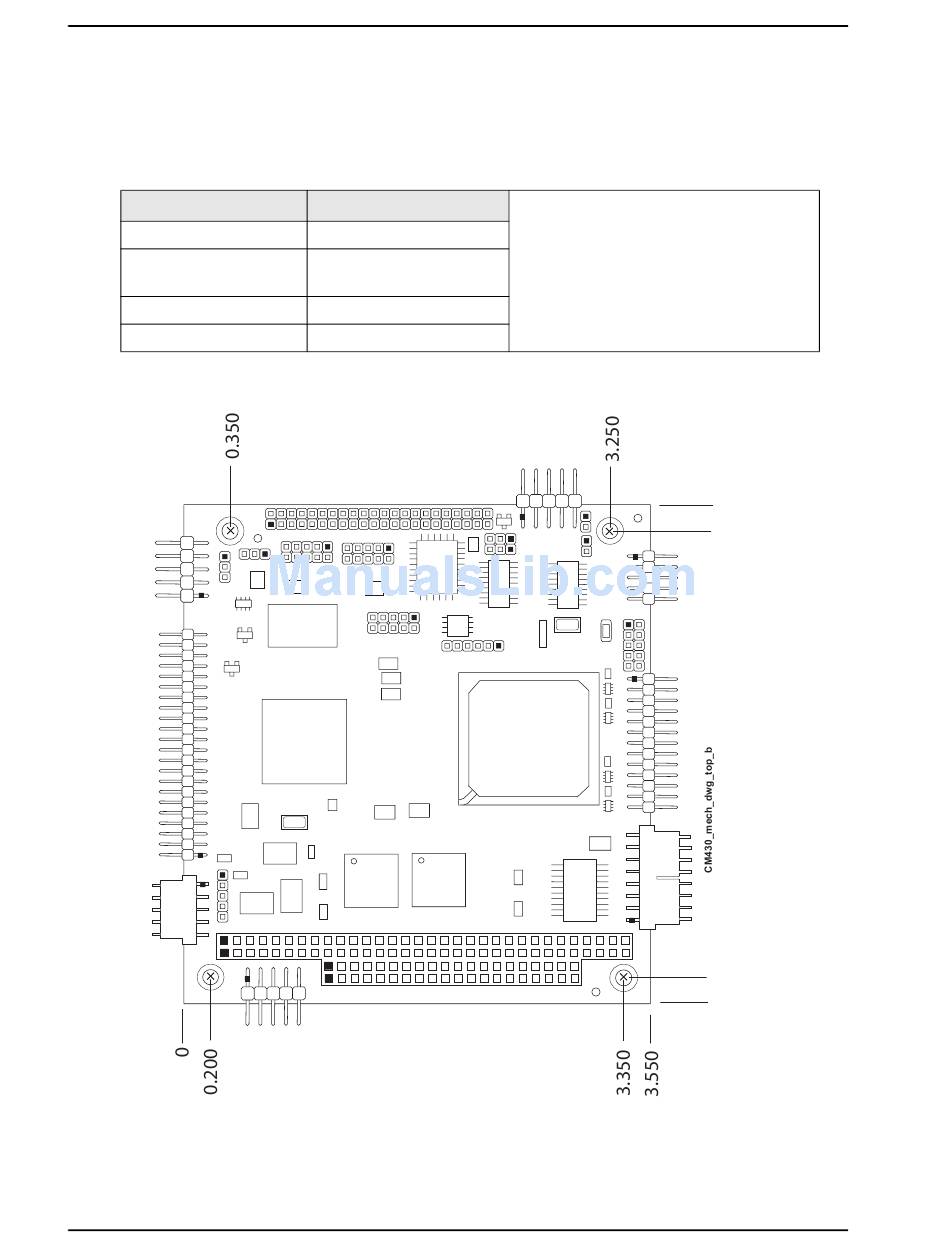

Figure 2-6. Mechanical Dimensions (Top Side)

Reference Manual
Figure 2-6
shows the mounting dimensions.
NOTE
Height is measured from the
upper board surface to the
highest permanent component
(PC/104 connector) on the
upper board surface. This does
not include the heatsink.
Product Overview
3.775
3.575
0.200
0
CoreModule 430
