Chapter 4 Table-Based Video Specific Operation

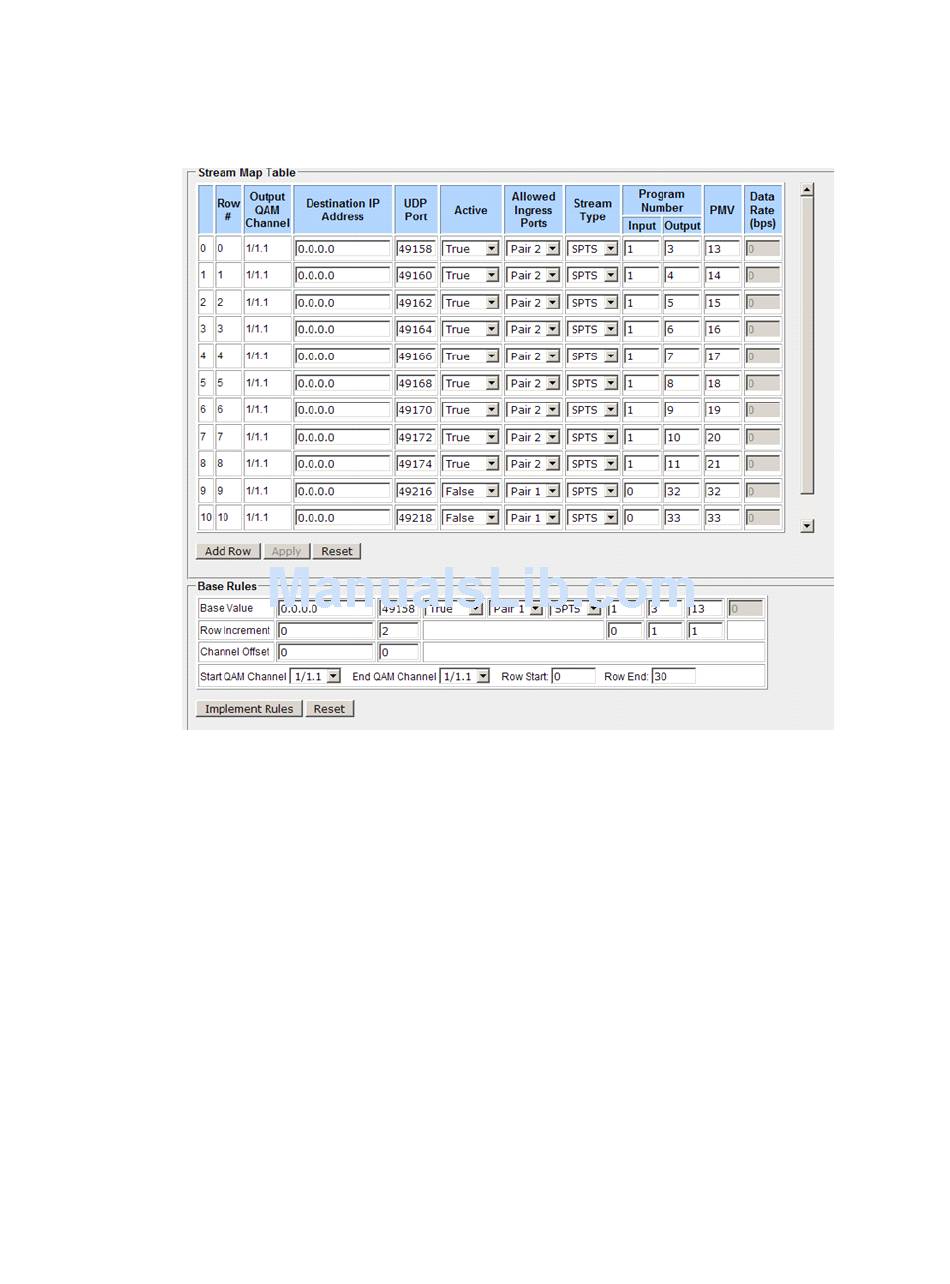

To Configure Video Stream Map Using Base Rules
1 Navigate to the Maps page.
2 In the tree menu, select Video Stream Map.
Result: The Stream Map Table is displayed.
3 In the Base rules window, enter the Base Value (base values are the initial values
the operator wants as the very first row in the stream map).
4 In the Row Increment field, enter row increments for the desired parameters. An
increment value of 0 will retain a parameter without increment for each row.
Typically, increment value of 0 is used for IP address.
5 In the Channel Offset field, enter desired offset (determines the increment for the
channel output).
Example: Entering 10 in the UDP column of the Channel Offset row generates 10
entries in the stream map for each channel.
Note: Base Rules can be used at the full-device, card, port or individual channel
level. Channel Offset is "don't care" when implementing Base Rules at the
channel level.
6 In the Start QAM Channel field, enter the start and end QAM Channel.
7 Enter Row Start and Row End (defines rows the base values will be applied to).
8 Click Implement Rules.
