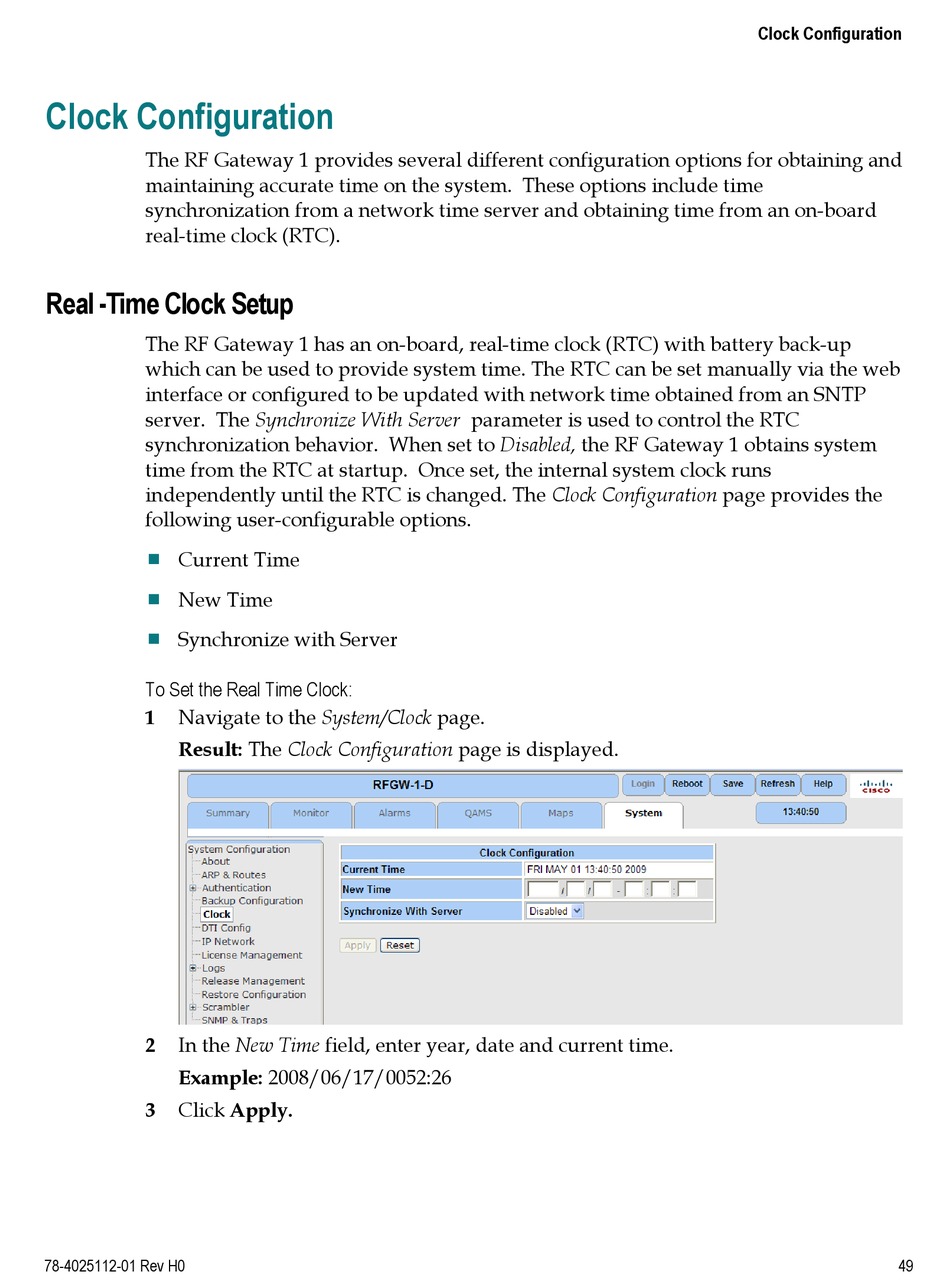

Clock Configuration; Real -Time Clock Setup - Cisco RF Gateway 1 Configuration Manual

Clock Configuration

The RF Gateway 1 provides several different configuration options for obtaining and
maintaining accurate time on the system. These options include time
synchronization from a network time server and obtaining time from an on-board
real-time clock (RTC).

Real -Time Clock Setup

The RF Gateway 1 has an on-board, real-time clock (RTC) with battery back-up
which can be used to provide system time. The RTC can be set manually via the web
interface or configured to be updated with network time obtained from an SNTP
server. The Synchronize With Server parameter is used to control the RTC
synchronization behavior. When set to Disabled, the RF Gateway 1 obtains system
time from the RTC at startup. Once set, the internal system clock runs
independently until the RTC is changed. The Clock Configuration page provides the
following user-configurable options.
Current Time

New Time

Synchronize with Server

To Set the Real Time Clock:
1 Navigate to the System/Clock page.
Result: The Clock Configuration page is displayed.
2 In the New Time field, enter year, date and current time.
Example: 2008/06/17/0052:26
3 Click Apply.
78-4025112-01 Rev H0

Clock Configuration

49
