Carrier Parameters - Cisco RF Gateway 1 Configuration Manual

To Enable Individual Carriers
1 Navigate to the QAMS page.
2 Expand the tree menu to select the Card/RF Port/QAM Channel.

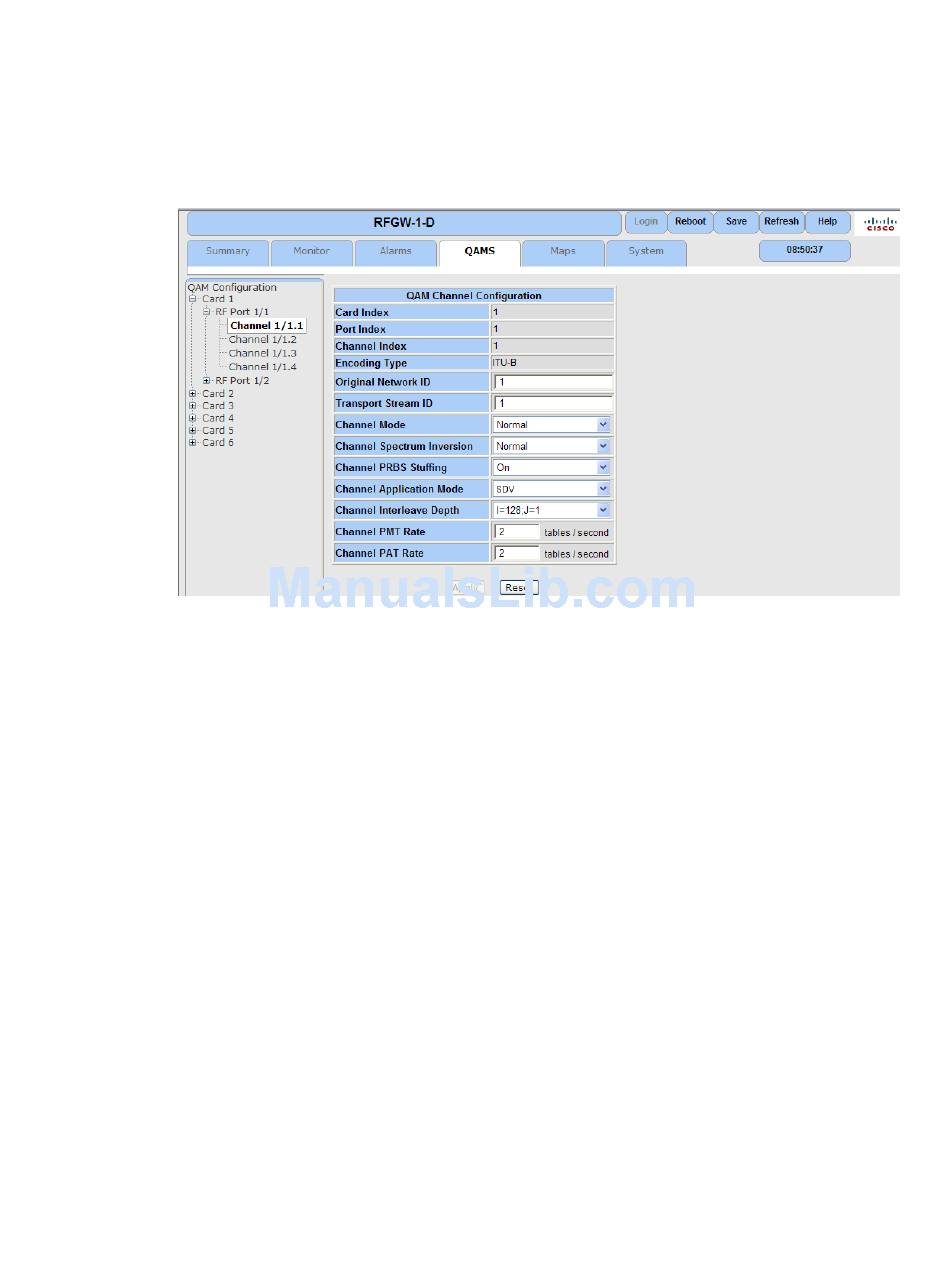

Result: The QAM Channel Configuration window is displayed.
3 In the Channel Mode field, set the parameter to Normal.
4 Click Apply.
5 Click Save.

Carrier Parameters

Various settings are configurable for the RF Gateway 1 output carriers. Some
settings are configurable on an individual carrier basis, other settings are limited to a
particular RF port (group of four carriers).
To Configure Port Output Parameters
1 Navigate to the QAMS page.
2 Expand the tree menu and select desired RF Port.
78-4025112-01 Rev H0
Configuring QAM Output
17
