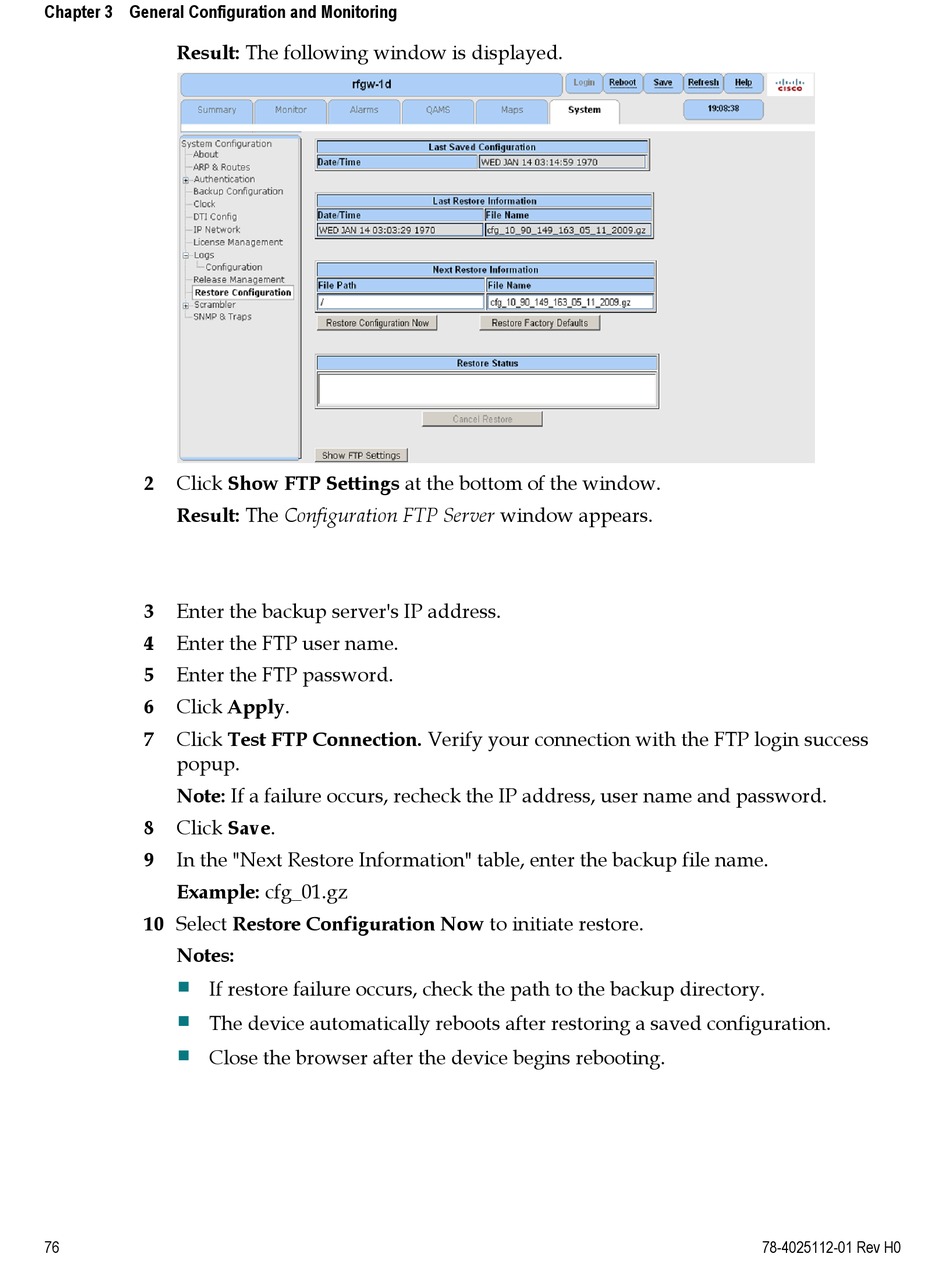

Cisco RF Gateway 1 Configuration Manual page 100

Chapter 3 General Configuration and Monitoring
Result: The following window is displayed.
2 Click Show FTP Settings at the bottom of the window.
Result: The Configuration FTP Server window appears.
3 Enter the backup server's IP address.
4 Enter the FTP user name.
5 Enter the FTP password.
6 Click Apply.
7 Click Test FTP Connection. Verify your connection with the FTP login success
popup.
Note: If a failure occurs, recheck the IP address, user name and password.
8 Click Save.
9 In the "Next Restore Information" table, enter the backup file name.
Example: cfg_01.gz
10 Select Restore Configuration Now to initiate restore.
Notes:

If restore failure occurs, check the path to the backup directory.

The device automatically reboots after restoring a saved configuration.

Close the browser after the device begins rebooting.
76 78-4025112-01 Rev H0
