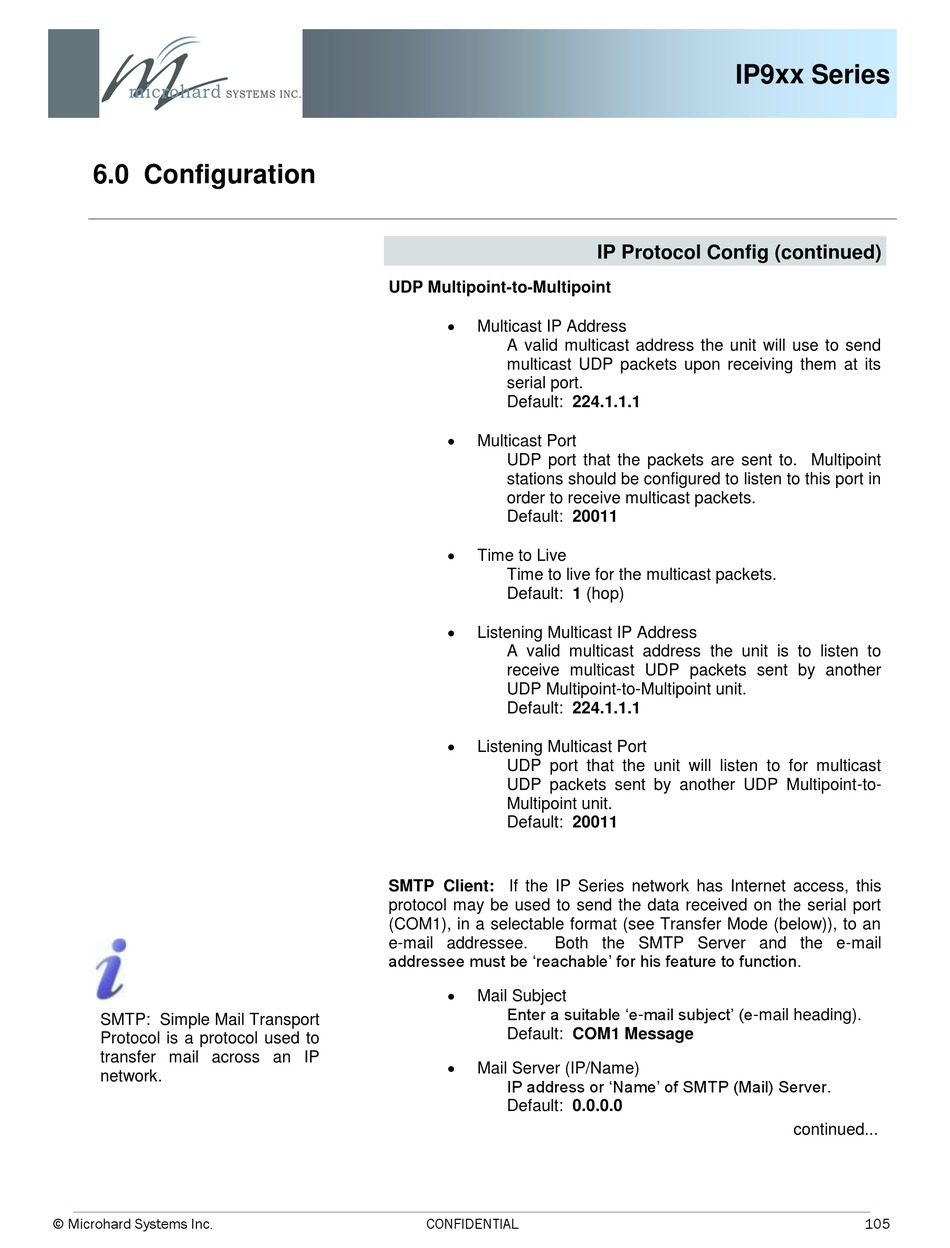

Microhard Systems IP-921 Operating Manual page 105

6.0 Configuration
SMTP: Simple Mail Transport
Protocol is a protocol used to
transfer mail across an IP
network.
© Microhard Systems Inc.
UDP Multipoint-to-Multipoint

Multicast IP Address
A valid multicast address the unit will use to send
multicast UDP packets upon receiving them at its
serial port.
Default: 224.1.1.1

Multicast Port
UDP port that the packets are sent to. Multipoint
stations should be configured to listen to this port in
order to receive multicast packets.
Default: 20011

Time to Live
Time to live for the multicast packets.
Default: 1 (hop)

Listening Multicast IP Address
A valid multicast address the unit is to listen to
receive multicast UDP packets sent by another
UDP Multipoint-to-Multipoint unit.
Default: 224.1.1.1

Listening Multicast Port
UDP port that the unit will listen to for multicast
UDP packets sent by another UDP Multipoint-to-
Multipoint unit.
Default: 20011
SMTP Client: If the IP Series network has Internet access, this
protocol may be used to send the data received on the serial port
(COM1), in a selectable format (see Transfer Mode (below)), to an
e-mail addressee. Both the SMTP Server and the e-mail
addressee must be ‗reachable' for his feature to function.

Mail Subject
Enter a suitable ‗e-mail subject' (e-mail heading).
Default: COM1 Message

Mail Server (IP/Name)
IP address or ‗Name' of SMTP (Mail) Server.
Default: 0.0.0.0
CONFIDENTIAL
IP9xx Series
IP Protocol Config (continued)
continued...
