This window displays information related to the COM2 port located
on the front of the IP Series.

COM2 Port Status
Disabled (for ‗data' traffic) by default.
'disabled' enables the port to be used for the Text
User Interface.
Configure via COM2 Configuration menu.

COM2 Connect As
Display of chosen protocol with respect to serial
gateway function.
Configure via COM2 Configuration menu.

COM2 Connect Status
If port is enabled and there is data traffic, this will
display ‗Active'.

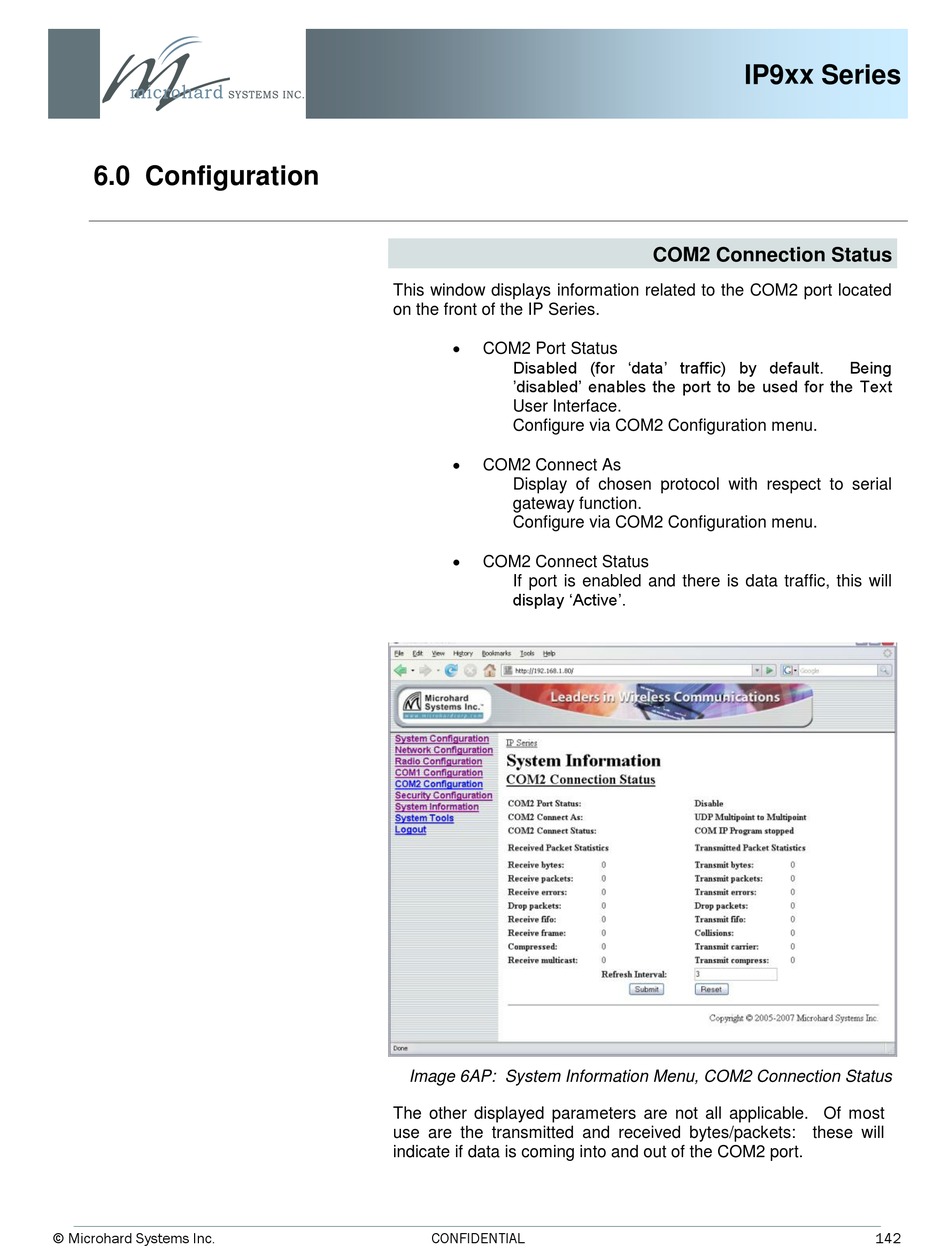

Image 6AP: System Information Menu, COM2 Connection Status
The other displayed parameters are not all applicable. Of most
use are the transmitted and received bytes/packets: these will
indicate if data is coming into and out of the COM2 port.
