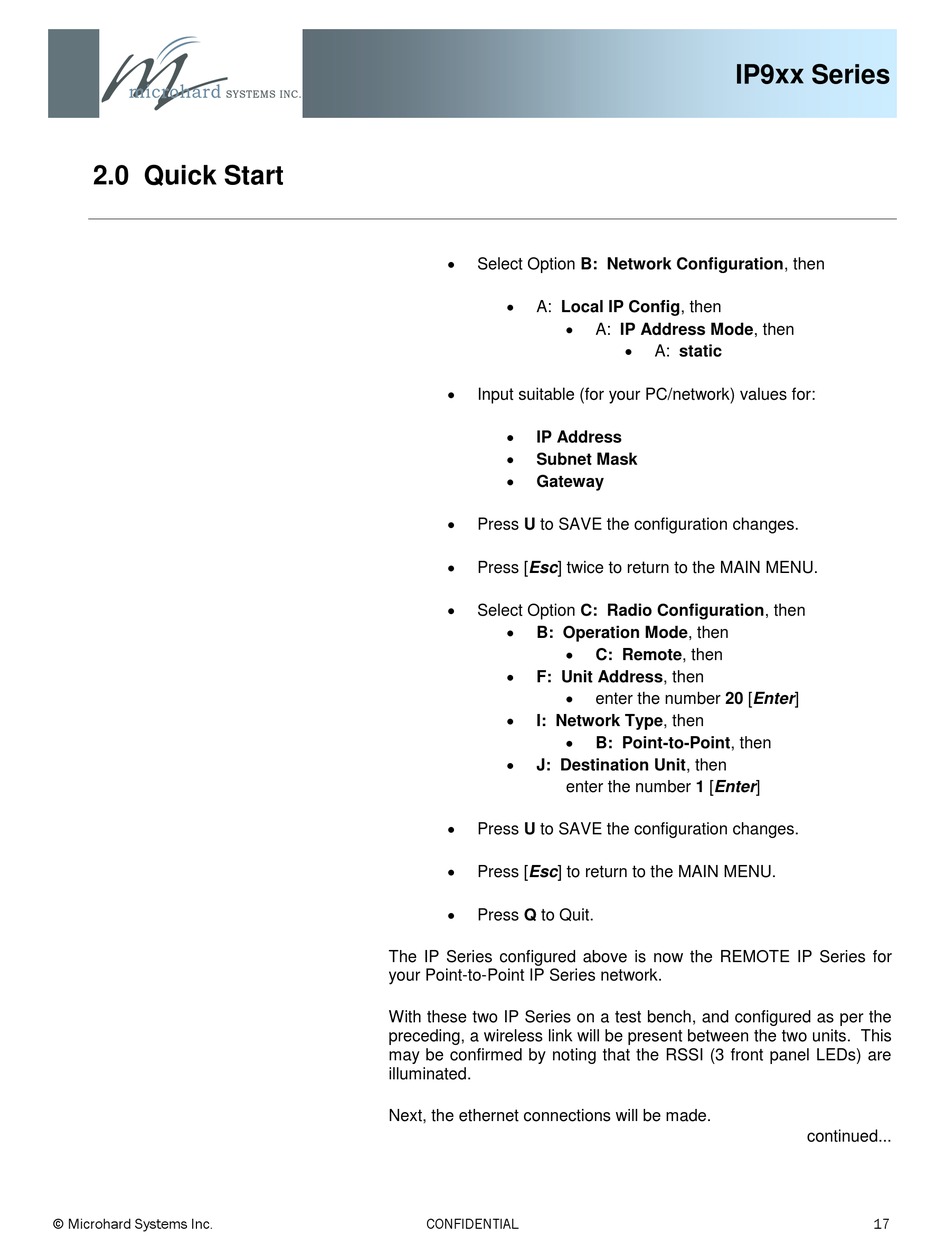

2.0 Quick Start
© Microhard Systems Inc.

Select Option B: Network Configuration, then

A: Local IP Config, then


Input suitable (for your PC/network) values for:

IP Address

Subnet Mask

Gateway

Press U to SAVE the configuration changes.

Press [Esc] twice to return to the MAIN MENU.

Select Option C: Radio Configuration, then

B: Operation Mode, then


F: Unit Address, then


I: Network Type, then


J: Destination Unit, then
enter the number 1 [Enter]

Press U to SAVE the configuration changes.

Press [Esc] to return to the MAIN MENU.

Press Q to Quit.
The IP Series configured above is now the REMOTE IP Series for
your Point-to-Point IP Series network.
With these two IP Series on a test bench, and configured as per the
preceding, a wireless link will be present between the two units. This
may be confirmed by noting that the RSSI (3 front panel LEDs) are
illuminated.
Next, the ethernet connections will be made.
CONFIDENTIAL
IP9xx Series
A: IP Address Mode, then

A: static
C: Remote, then
enter the number 20 [Enter]
B: Point-to-Point, then
continued...
