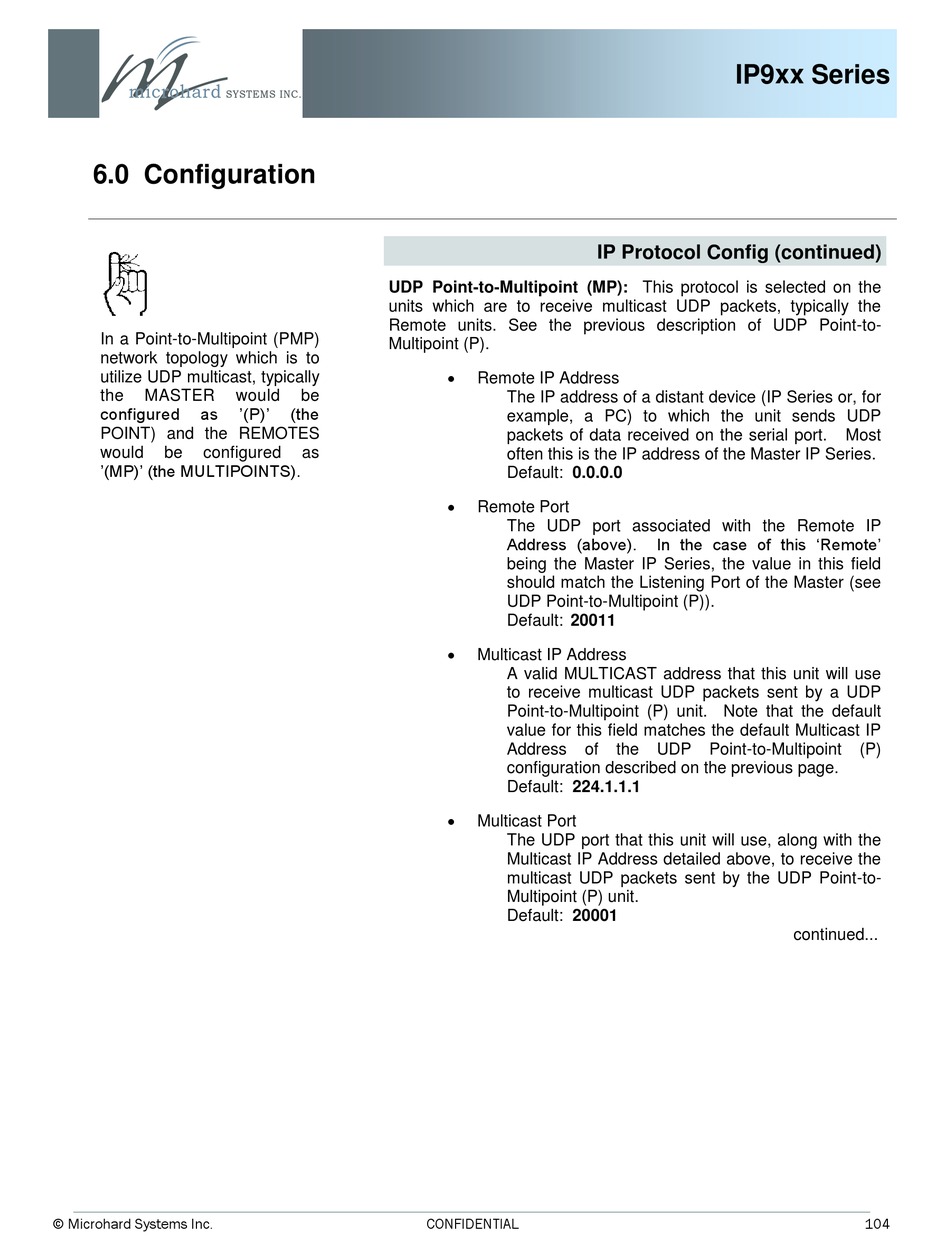

Microhard Systems IP-921 Operating Manual page 104

6.0 Configuration
In a Point-to-Multipoint (PMP)
network topology which is to
utilize UDP multicast, typically
the MASTER
configured as
POINT) and the REMOTES
would be configured
'(MP)' (the MULTIPOINTS).
© Microhard Systems Inc.
UDP Point-to-Multipoint (MP): This protocol is selected on the
units which are to receive multicast UDP packets, typically the
Remote units. See the previous description of UDP Point-to-
Multipoint (P).
would be
'(P)' (the
as
IP Protocol Config (continued)

Remote IP Address
The IP address of a distant device (IP Series or, for
example, a PC) to which the unit sends UDP
packets of data received on the serial port.
often this is the IP address of the Master IP Series.
Default: 0.0.0.0

Remote Port
The UDP port associated with the Remote IP
Address (above).
being the Master IP Series, the value in this field
should match the Listening Port of the Master (see
UDP Point-to-Multipoint (P)).
Default: 20011

Multicast IP Address
A valid MULTICAST address that this unit will use
to receive multicast UDP packets sent by a UDP
Point-to-Multipoint (P) unit. Note that the default
value for this field matches the default Multicast IP
Address of
configuration described on the previous page.
Default: 224.1.1.1

Multicast Port
The UDP port that this unit will use, along with the
Multicast IP Address detailed above, to receive the
multicast UDP packets sent by the UDP Point-to-
Multipoint (P) unit.
Default: 20001
CONFIDENTIAL
IP9xx Series
In the case of this ‗Remote'
the UDP Point-to-Multipoint
continued...
Most
(P)
